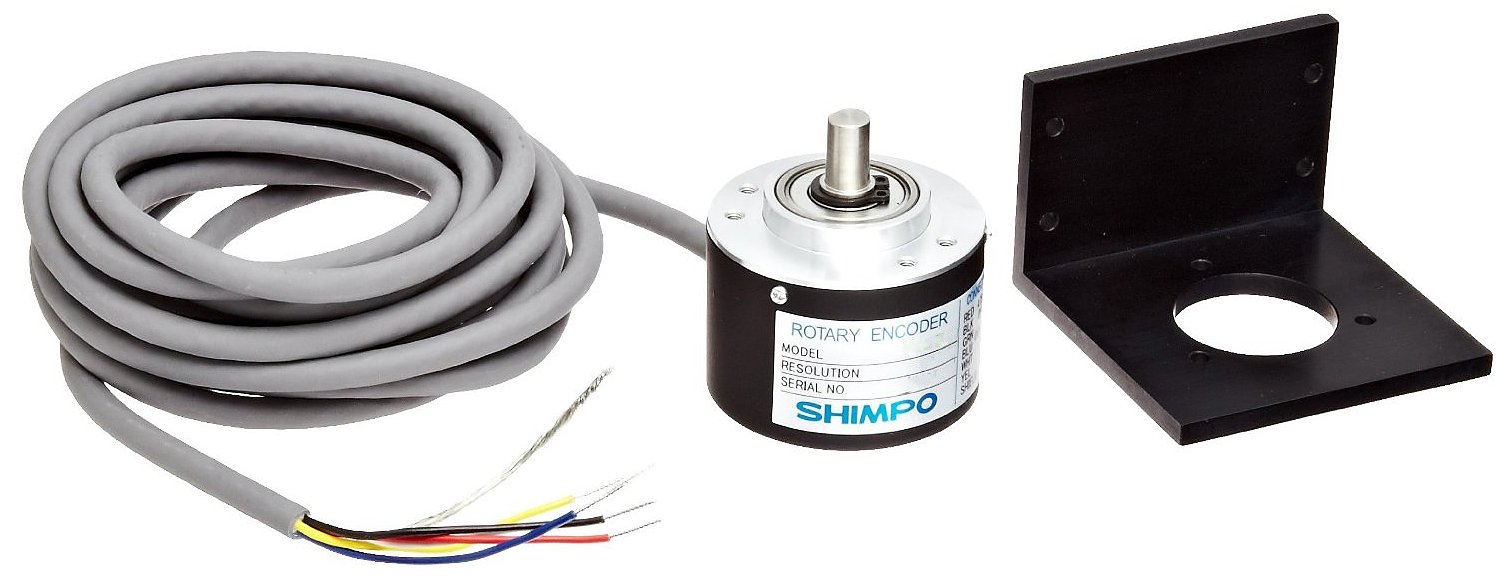

Shimpo RE1B-600C Aluminum Rotary Pulse Generator with Cable, 4.75-30VDC, 3000RPM Max Speed, 600PPR Graduation

Be the first to review this item

ASIN B006C2NX36

Specifications for this item
Number of Items
1
Part Number
RE1B-600C
Brand Name
Shimpo
UNSPSC Code
41113600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 2 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • A solid state, rotary pulse generator
  • 600 digital output pulses per shaft revolution
  • Maximum speed: 3000 RPM
  • Aluminum housing construction; Base or face mounting
  • 10' Cable length

Package Details

Shipping Weight: 0.95 pounds
Package Size: 4.3 x 3.6 x 3.5 inches

Product Description

Shimpo RE1B-600C is a solid state rotary pulse generator which produces 600 digital pulses per shaft revolution. Resolution: 6000 pulses per revolution. Maximum speed: 3000 RPM. Power supply: 4.75 - 30VDC, 50mA (max). Output voltage: logic "1" ...Vs - 2.5V, 10mA (max), logic "0" ...less than 0.4V, 30 mA (max). Shaft torque: 0.41 oz-in, 30g-cm (max). Shaft allowable load: Overhung load 11 lbs. Thrust load 6.6 lbs.. Cable length: 10 ft.. Operation temp.: 14 degree to 122 degree F(-10 degree to 50 degree C). Weight: 8.8 oz (250g). Construction: aluminum housing. Mounting: base or face mounting.
