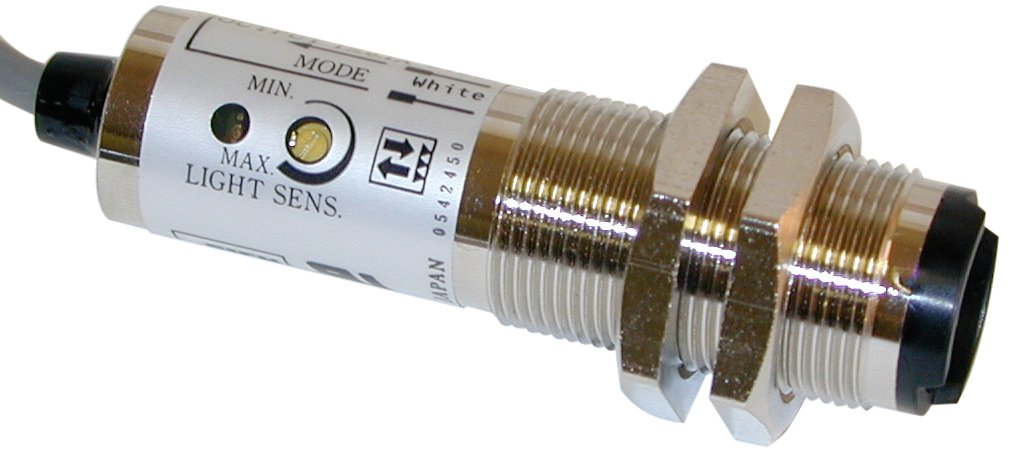

Click for larger image and other views

How can we improve our images or Product Specifications?

Shimpo MCS-655 Photo Reflective Sensor, 100mA max Load Current, NPN Open, 10-30VDC, 333Hz Switching Frequency, 1" - 3' Sensing Distance

Be the first to review this item


Specifications for this item
Number of Items
Minimum Storage Temperature
55  Degrees Celsius
Part Number
Terminal Type
-25 degrees_celsius
Brand Name
Output Type
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Apr 29? Order in-stock items in the next 22 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • A general purpose retro-reflective NPN open collector photo sensor
  • MCS-655 incorporates a complimentary switching voltage output (light/dark activated) that operates up to 333Hz
  • An LED is mounted on the top of the unit along with a sensitivity adjustment pot for alignment purposes
  • Excitation Requirement: 10-30VDC (30mA)
  • Maximum current sinking: 100mA

Package Details

Shipping Weight: 0.2 pounds
Package Size: 9 x 5 x 0.8 inches

Product Description

Incorporates a complimentary switching voltage output (light/dark activated) that operates up to 333Hz. An LED is mounted in the back of the unit with sensitivity adjustment. Sensing distance: 1" to 3 ft. Activity frequency: 333Hz. Excitation requirement: 10-30VDC (30mA). Maximum current sinking: 100mA. Operating temperature: -13 degree F-131 degree F (-25 degree C-55 degree C). Degree of protection: IP66/NEMA 4. Cable length: 10 ft.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
