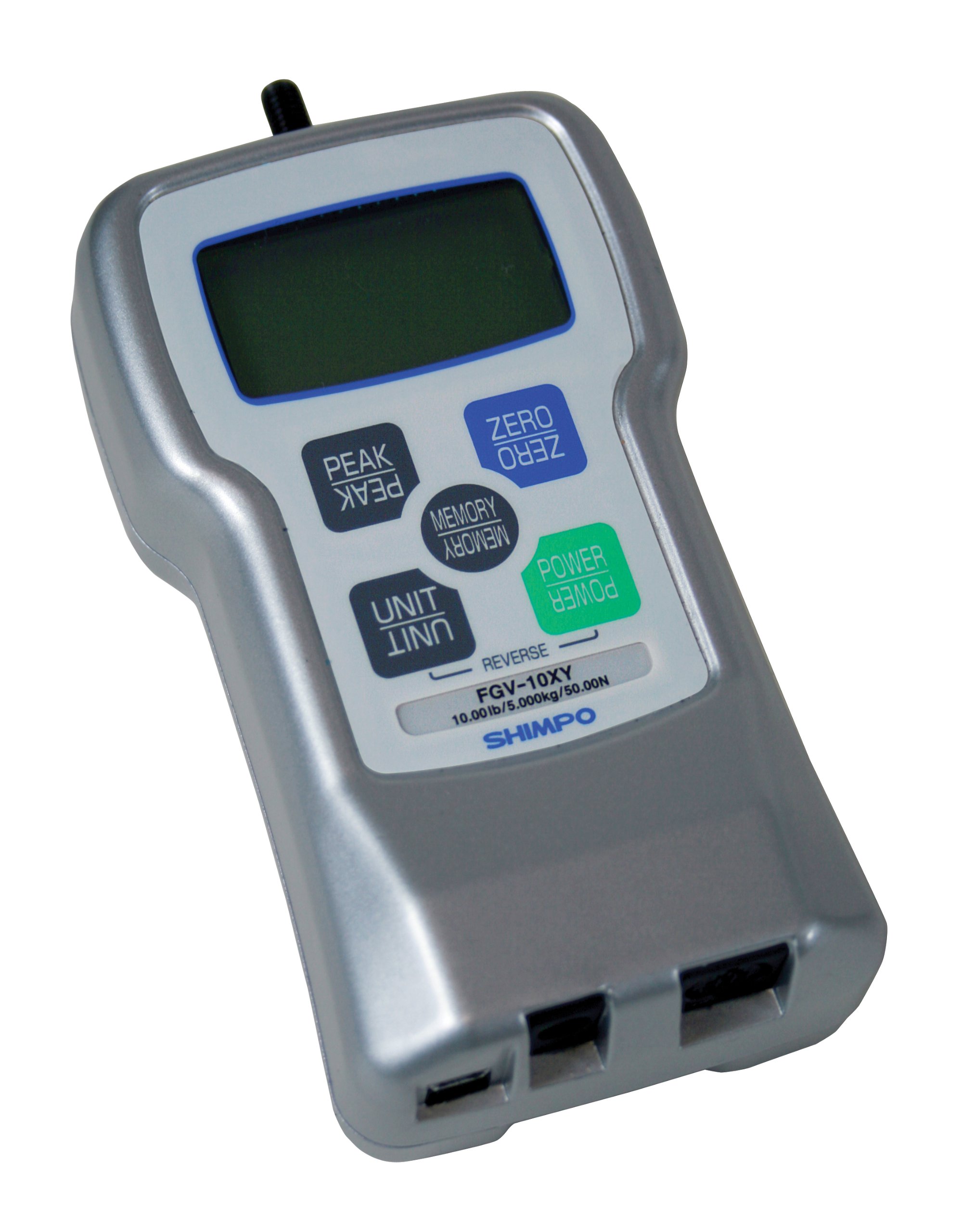

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Shimpo FGV-XY DART 2.0 Series LCD Display Digital Force Gauge

Be the first to review this item

Product Specifications
Manufacturer Series Number
FGV-XY DART 2.0 Series
Special Features
Brand Name

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 11 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Currently showing 1-9 of 9
0.001 lbs Graduation, 0.500 lbs Range B006C2M07Q yes $695.62 Buy Options
0.001 lbs Graduation, 1 lbs Range B006C2FWTE yes $695.62 Buy Options
0.001 lbs Graduation, 10 lbs Range B006C2F1ZE yes $695.62 Buy Options
0.001 lbs Graduation, 2 lbs Range B006C2M26K yes $695.62 Buy Options
0.001 lbs Graduation, 5 lbs Range B006C2F3U2 yes $695.62 Buy Options
0.01 lbs Graduation, 20 lbs Range B006C2D552 yes $695.62 Buy Options
0.01 lbs Graduation, 50 lbs Range B006C2D5ZC yes $695.62 Buy Options
0.1 lbs Graduation, 100 lbs Range B006C2D73W yes $695.62 Buy Options
0.1 lbs Graduation, 200 lbs Range B006C2D822 Usually ships in 24 hours $739.37 Buy Options

Key Features

  • Measures tensile (pull) or compression (push) forces
  • Displays present force or maximum positive or negative peak force
  • Measurement accuracy of + or - 0.2 percent of full scale
  • 1,000 hertz (Hz) maximum sampling rate updates measurements 1,000 times per second
  • USB, RS-232, and analog outputs provide connection to a computer or other compatible device

Product Description

The Shimpo FGV-XY DART 2.0 series digital force gauge with liquid crystal display (LCD) and USB, RS-232, and analog outputs measures compression (push) and tensile (pull) forces in quality control, consumer testing, research and development, and process control applications. The LCD shows either present force measured in real time or the maximum positive or negative peak force measured over the course of a test. It has a measurement accuracy of + or - 0.2 percent of full scale. The gauge has a 1,000-hertz (Hz) sampling rate and updates measurements 1,000 times per second. USB, RS-232, and analog outputs on the gauge provide connection to a computer or other compatible device, such as a motorized stand. A USB cable is included with the gauge. The meter can record and store measurements, and it provides statistics for recorded readings, including the highest or lowest positive or negative recorded values, the standard deviation of recorded values, the average of recorded values, and the last measurement value displayed. The gauge's comparator has user-preset high and low limits for pass/fail testing (also known as go/no-go testing). The gauge can withstand an overload of up to 200 percent of full-scale capacity. The reversible LCD and keypad provide readability when the gauge is held upside down. The user can adjust the speed at which the display refreshes, for readability, and the meter's response time can be set at 3, 20, or 150 milliseconds. A tracking function adjusts measurements to account for changes in ambient temperature and humidity, which can impact measurement accuracy. The zero function clears a reading on the display and zeroes the meter before measurement for improved accuracy. The display can be set to show compressive force as positive and tensile force as negative, or the other way around. The gauge can be held in one hand during use, or it can be mounted on a compatible stand (not included) for hands-free operation. A removable hanger allows the gauge to be suspended from a hook or fixture. The gauge comes with one hook, one chisel, one flat head, one notched head, and one cone head attachment that screw onto the sensor shaft for conducting tests on a variety of devices. It also comes with an extension rod for increasing the reach of the gauge's sensor. The unit accepts metric-threaded attachments and comes with a thread adapter for use with attachments that have English thread. The unit's calibration function helps maintain accuracy of measurements. The gauge's body is constructed from die-cast aluminum, which resists wear. The unit automatically shuts off after 10 minutes of non-use to conserve battery life, and a low-battery indicator shows when batteries need to be charged. The gauge operates on one rechargeable nickel-hydride (Ni-H2) battery (included), and it comes with an AC/DC power adapter that charges the battery and provides a back-up power source for the gauge.

Standards met European Conformity (CE)
Operating temperature 32 to 104 degrees Fahrenheit/0 to 40 degrees Celsius
Power supply Rechargeable nickel-hydride (Ni-H2) battery (one, installed)
Dimensions 5.8 x 2.9 x 1.5 inches/147 x 75 x 38 mm (H x W x D)

H is height, the vertical distance from lowest to highest point; W is the width, the horizontal distance from left to right; and D is depth, the horizontal distance from front to back

Force gauges, also called push-pull gauges or tension gauges, measure the tensile (pull) or compression (push) force applied to an object. They are used to test the strength and functionality of a variety of machines, electronic components, cables, wires, and consumer products in scientific, medical, automotive, quality assurance, and manufacturing applications. A digital force gauge shows the amount of force in digits on the gauge's display. Response time varies among digital force gauges depending on the speed of the processor. An analog (or mechanical) force gauge shows measurements on a calibrated dial. Analog force gauges are not as precise as digital force gauges, but they provide instantaneous measurements and can be used in a wider range of environmental conditions than digital force gauges. Hooks, compression plates, levers, handles, test stands, and other accessories can be used with the gauge for taking measurements on objects with a range of shapes and sizes.

Shimpo Instruments manufactures force, torque, and speed evaluation instruments. The company, founded in 1974 and headquartered in Itasca, IL, meets International Organization for Standardization (ISO) standard 9001.
