Shimpo FGS-1000H Manual Test Stand with Turn Wheel, 1000lbs Capacity

Be the first to review this item

ASIN B006C2FNMA

Specifications for this item
Number of Items
1
Range
1000 pounds
Travel
0.01  inches
Part Number
FGS-1000H
Resolution
0.01"
Brand Name
Shimpo
Maximum Measurement
1000 pounds
UNSPSC Code
41111934
Special Features
1000lbs Capacity
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 9 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hand-operated test stand for use with Shimpo FGV-HX and FGE-HX Javelin, FGV-XY Dart 2.0, and FGE-X Dart series force gauges as well as other compatible gauges
  • Turn wheel provides a more gradual application of force during testing than a lever
  • 1,000 lb. (500 kg) maximum capacity
  • 0.1" (3 mm) travel speed with a 6" (152 mm) maximum travel
  • Adjustable vertical clearance up to 13" (330 mm) and a 6" (152 mm) wide sample platform, for testing on samples with a range of sizes

Package Details

Shipping Weight: 54.95 pounds
Package Size: 36.1 x 13.2 x 12.6 inches

Product Description

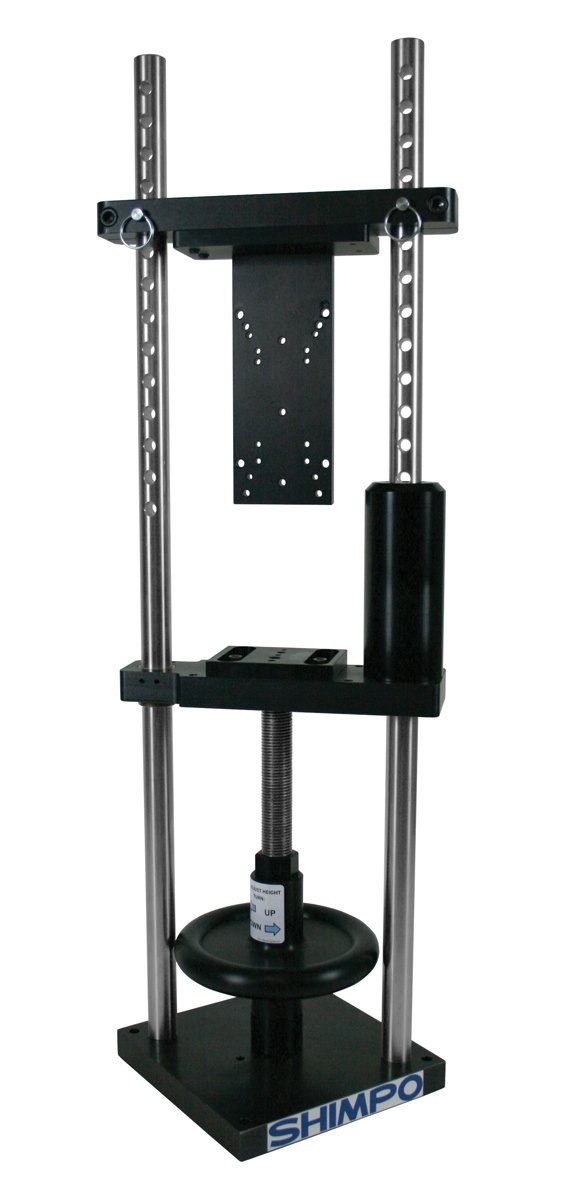

The Shimpo FGS-1000H vertical manual test stand with turn wheel is for use with Shimpo FGV-HX and FGE-HX Javelin, FGV-XY Dart 2.0, and FGE-X Dart series force gauges (not included) as well as other compatible gauges for tensile and compression force testing. The stand operates by rotating a turn wheel, which provides a more gradual application of force during testing than a lever. It has a 1,000 lb. (500 kg) maximum capacity, a 0.1" (3 mm) travel speed, and a 6" (152 mm) maximum travel. The user can adjust the vertical clearance between the force gauge and the sample up to 13" (330 mm) to accommodate samples with a range of sizes. The stand has a 6" (152 mm) wide sample platform, and the stand's base adapter block can accept a variety of attachments (sold separately) for different types of force testing. The stand is made from steel, which provides resistance to wear and corrosion. It weighs 56 lb. (25 kg) and measures 33.0 x 8.0 x 8.0 inches (838 x 203 x 203 mm, H x W x D, where H is height, the vertical distance from lowest to highest point; W is the width, the horizontal distance from left to right; and D is depth, the horizontal distance from front to back). It comes with three Allen wrenches and screws for assembly.

Force gauges, also called push-pull gauges or tension gauges, measure the tensile (pull) or compression (push) force applied to an object. They are used to test the strength and functionality of a variety of machines, electronic components, cables, wires, and consumer products in scientific, medical, automotive, quality assurance, and manufacturing applications. A digital force gauge shows the amount of force in digits on the gauge's display. Response time varies among digital force gauges depending on the speed of the processor. An analog (or mechanical) force gauge shows measurements on a calibrated dial. Analog force gauges are not as precise as digital force gauges, but they provide instantaneous measurements and can be used in a wider range of environmental conditions than digital force gauges. Hooks, compression plates, levers, handles, test stands, and other accessories can be used with the gauge for taking measurements on objects with a range of shapes and sizes.

Shimpo Instruments manufactures force, torque, and speed evaluation instruments. The company, founded in 1974 and headquartered in Itasca, IL, meets International Organization for Standardization (ISO) standard 9001.
