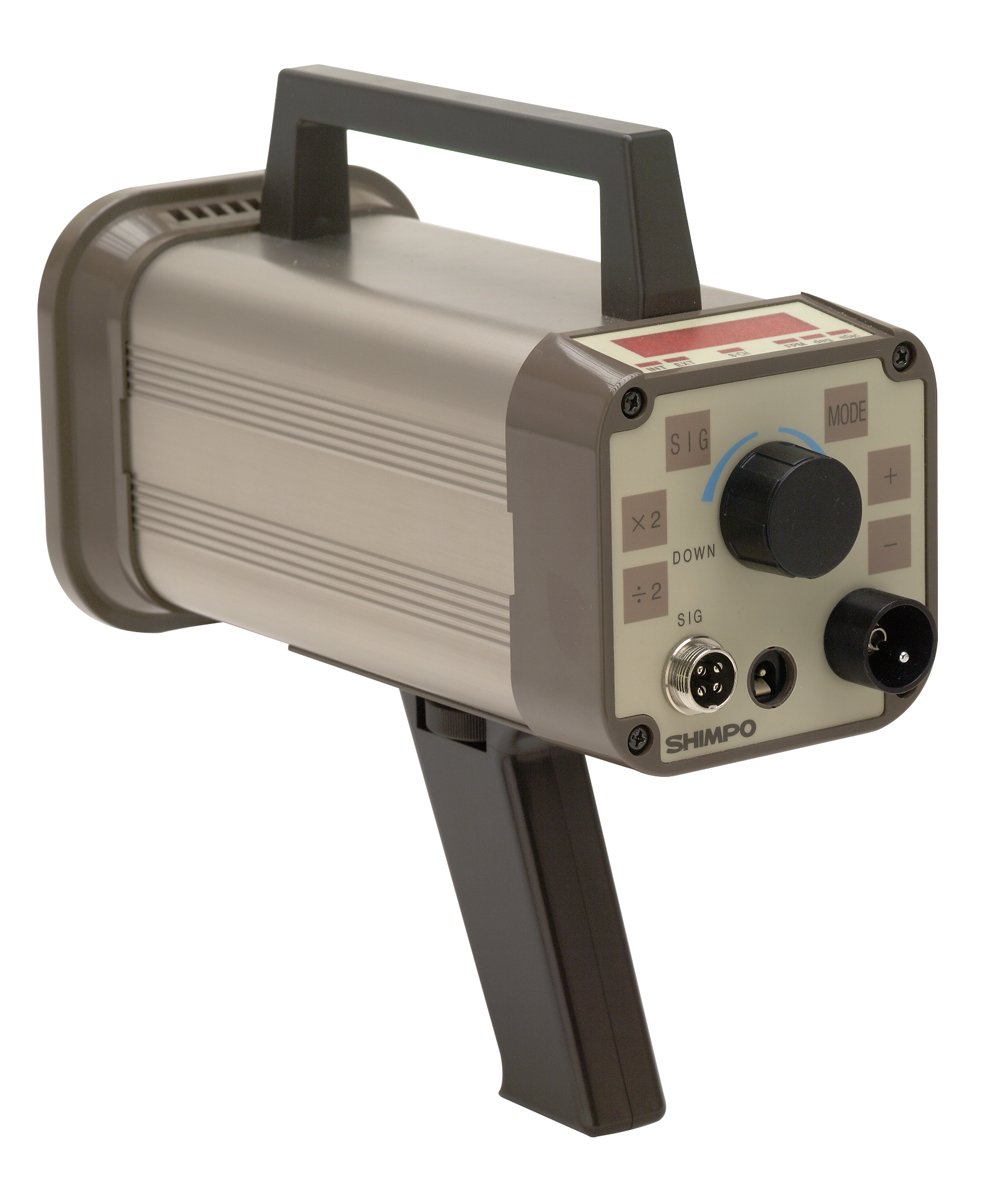

Shimpo DT-315A-230V Heavy Duty Digital Stroboscope with Internal Battery, LED Display, 230 V AC, 40.0 - 35000 FPM Range

Be the first to review this item

ASIN B006C2EGAK

Specifications for this item
Number of Items
1
Range
40.0 - 35000rpm
Material Type
Aluminum
Part Number
DT-315A-230V
Brand Name
Shimpo
Maximum Measurement
40.0 - 35000rpm
UNSPSC Code
41115317

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital stroboscope with wide-range flash rate is designed for motion analysis, preventive maintenance, printing inspection, and speed measurement of repetitive motion
  • Internal and external trigger with a flash-rate range of 40.0-35,000 flashes per minute (FPM) and a built-in multiply-by-2 and divide-by-2 functionality
  • Xenon flash tube has a 10-40 microsecond flash rate for crisp images in brightly lit areas
  • Phase shift and time delay change the image location without moving the trigger point
  • 230V AC line-powered or internal rechargeable battery power source

Package Details

Shipping Weight: 5.5 pounds
Package Size: 15.8 x 8.9 x 7 inches

Product Description

The Shimpo DT-315A-230V battery or line-powered digital stroboscope has a xenon flash tube, internal and external trigger modes, and time and phase shift to provide stop-motion or slow-motion viewing of moving machinery. It is used for motion analysis, preventive maintenance, printing inspection, and speed measurement of repetitive motion. The xenon flash tube has a 10 to 40 microsecond flash duration for crisp images in brightly lit areas and a flash timer conserves flash tube life. Xenon flash tubes have brighter light output and a shorter flash duration than LED lights. Bright light output is required for quality images in brightly lit areas, and shorter flash durations provide sharper images, especially at high rates of speed. A high-polish focused reflector eliminates blind viewing areas. Internal and external trigger modes have a 0 to 35,000 flashes per minute (FPM) range and an accuracy of + or - 0.01%, or + or - 1 digit. Built-in multiply-by-2 and divide-by-2 functionality allows the operator to distinguish true RPM from harmonics. Internal mode phase shift has a 360 degree range in six seconds. External mode has a phase shift range of 0 to 360 degrees in one-degree increments and a time delay of 0 to 2,000 milliseconds (msec) at speeds between 40 and 10,000 FPM. Time delay and phase shift enable the operator to adjust the focal point of the object to any point in the rotation without moving the trigger point. Synchronous output enables the stroboscope to drive other strobes for wider coverage. The stroboscope can be powered by the internal rechargeable battery or 230V AC line power. An integrated mounting thread and continuous duty cycle allow for permanent installation and long-term use without the need for cool-down periods. The aluminum housing provides durability. The stroboscope includes a flash tube removal tool, a handle, and instructions. Stroboscopes are used in a variety of settings including manufacturing, printing, education, and photography.

Specifications
Flash range and accuracy (internal mode)40.0 to 35,000 FPM, with + or - 0.01% of reading accuracy
Flash range and accuracy (external mode)0.0 to 35,000 FPM with + or - 0.01% or + or - one digit accuracy
Resolution0.1 FPM at 40.0 to 4,999.9 FPM
0.2 FPM at 5,000 to 7,999.8 FPM
0.5 FPM at 8,000 to 9,999.5 FPM
1 FPM at 10,000 to 35,000 FPM
Rate multiplier/divider (internal mode only)Multiply-by-2 and divide-by-2
Phase shift (internal mode)Push buttons shift 360 degrees in 6 seconds
Time and phase shift (external mode)0 to 2,000msec time delay from 40 to 10,000 FPM
0 to 360 degrees phase shift in 1 degree increments
Light sourceXenon flash tube, 10W maximum
Light source life100-million flashes
Flash duration10 to 40 microseconds
Power requirementsRechargeable battery or AC line power with AC adapter (included)
Dimensions4.72 x 4.72 x 7.28"/120 x 120 x 185mm (H x W x D)
Weight4.4lb./2kg

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Stroboscopes evaluate the functionality of fast-moving rotational objects, such as belts, fan blades, and other machine parts. They are used in industries such as manufacturing, entertainment, high-speed printing, wood and metal turning, and in education and research settings. Stroboscopes have a flashing light (strobe) that, when directed at a moving object, makes the object appear to be stopped or moving in slow motion. This enables the operator to evaluate machine performance without stopping the machine. Stroboscopes use either xenon flash tubes or LED light sources. The strobe is triggered either internally, which allows the operator to manually adjust the flash rate, or externally and automatically by a peripheral sensor. Multiply-by-2 (2/4 or 2X) and divide-by-2 (1/2) functionality enables the operator to verify the actual revolutions per minute (RPM) and to distinguish true RPM from harmonics. Phase shift adjusts the flash delay in degrees of a full rotation, and time delay adjusts the flash delay in seconds or fractions of a second. Input and output features enable the operator to use peripheral sensors to trigger flash rates, to perform tachometer operations, or to daisy-chain stroboscopes.

Shimpo Instruments manufactures force, torque, and speed evaluation instruments. The company, founded in 1974 and headquartered in Itasca, IL, meets International Organization for Standardization (ISO) standard 9001.

What's in the Box?
  • Shimpo DT-315A-230V digital stroboscope
  • Flash tube removal tool
  • AC charger/adapter
  • Handle
  • Instructions
