Shimpo DT-205LR Handheld Tachometer with 6" Wheel, LCD Display, +/-1rpm Accuracy, 6 - 99999rpm Range

Be the first to review this item

ASIN B006C2E15A

Specifications for this item
Number of Items
1
Range
6 - 99999rpm
Material Type
Aluminum
Part Number
DT-205LR
Item Weight
0.8 pounds
Brand Name
Shimpo
Maximum Measurement
6 - 99999rpm
UNSPSC Code
41112802
Style Name
LCD
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 18 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Multi-mode capability measures RPM, mPM, YPM, FPM, IPM and total meters, yards, feet and inches
  • Large memory capacity allows up to 13 measurements to be stored in memory
  • Single chip microprocessor ensures reliability and low maintenance
  • Safely measures RPM (non-contact mode) from up to 20 feet away
  • 5-digit LCD display permits easy reading

Package Details

Shipping Weight: 2.15 pounds
Package Size: 10.9 x 7.2 x 2.9 inches

Product Description

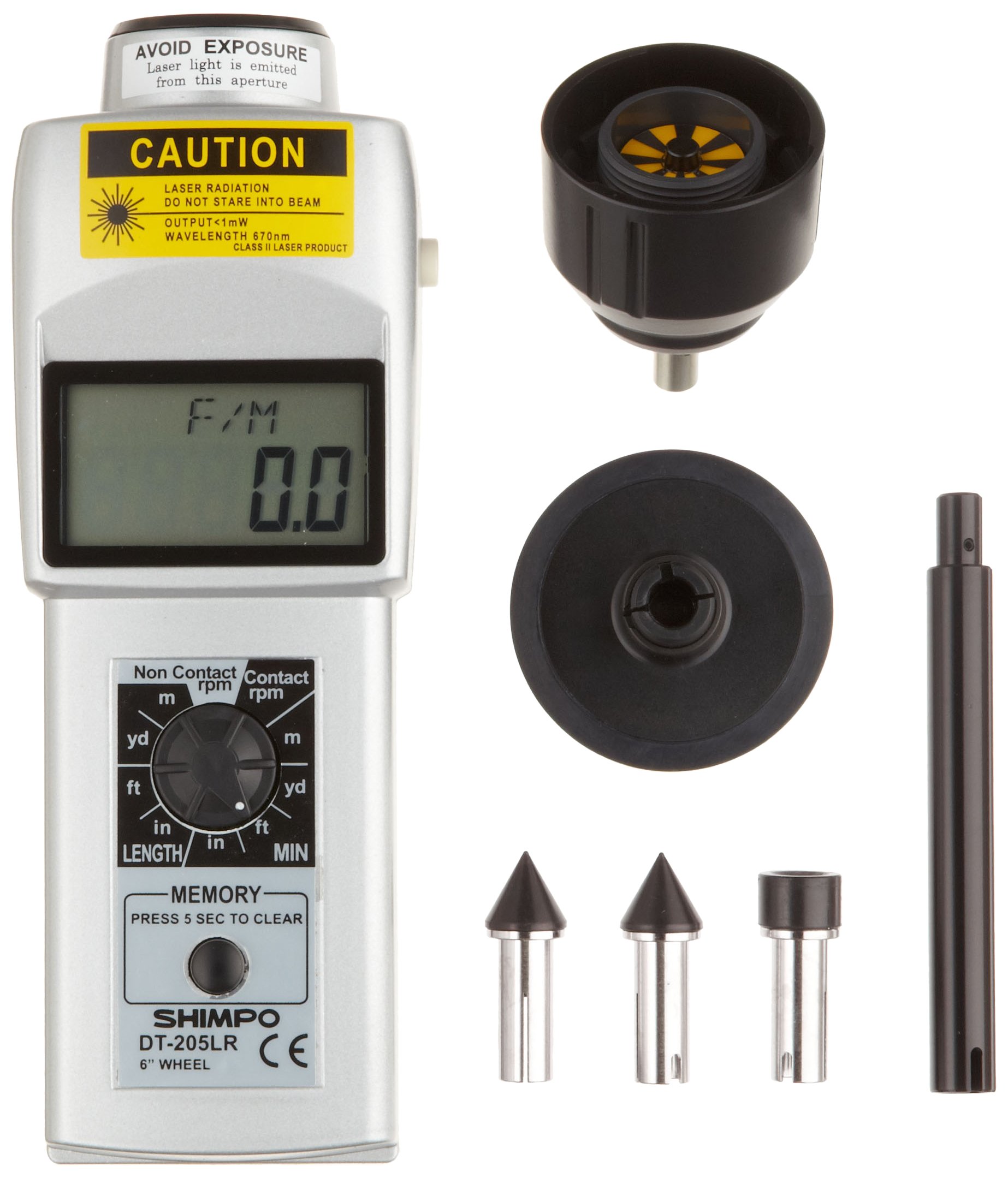

New DT-205LR tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components, both offer incredible value and versatility as they perform non contact and contact applications via the included contact adapter. We are confident you'll agree that these fine units are the most advanced handheld tachometers on the market. Display range: 6 to 99999 rpm. Accuracy: +/-1rpm: 6 to 8300rpm, +2rpm: 8300 to 25000rpm, 25000 to 99999rpm: +/-0.006 percent of reading +/-1 digit (+/-6 rpm max.). Display: 5 digit 0.47" (12mm) high LCD. Measuring units: RPM (on contact using adapter, included) For YPM, mPM, FPM, IPM and Length: YRD, m, FT and IN use 6" cir. Wheel with 200L adapter. Measuring distance: 20' (6m) maximum. Memory system: 13 readings are stored in memory and retained for 5 minutes (last, max., min. and 10 extra measurements). Detection: Laser diode / contact. System control: Single chip C-MOS microprocessor. Over range indicator: Flashing numerals. Update time: 1 second (typical). Batteries included: Size: 2AA 1.5V. Life; Approx. 40 hrs. Low voltage indicator: Flashing "LO BAT" display. Operating temperature: 32 degree to 113 degree F (0 degree to 45 degree C). Construction: Die-cast aluminum housing. Weight: 0.8lbs (365g). Measures 6.6" length by 2.4" width by 1.8" height. Warranty: 1 year. Standard accessories: Reflective tape, 2 cone adapters, 1 funnel adapter, NIST traceable certificate, instruction manual, carrying case, DT-ADP-200LR adapter, master wheel (6" cir.) and 3.5" extension shaft.
