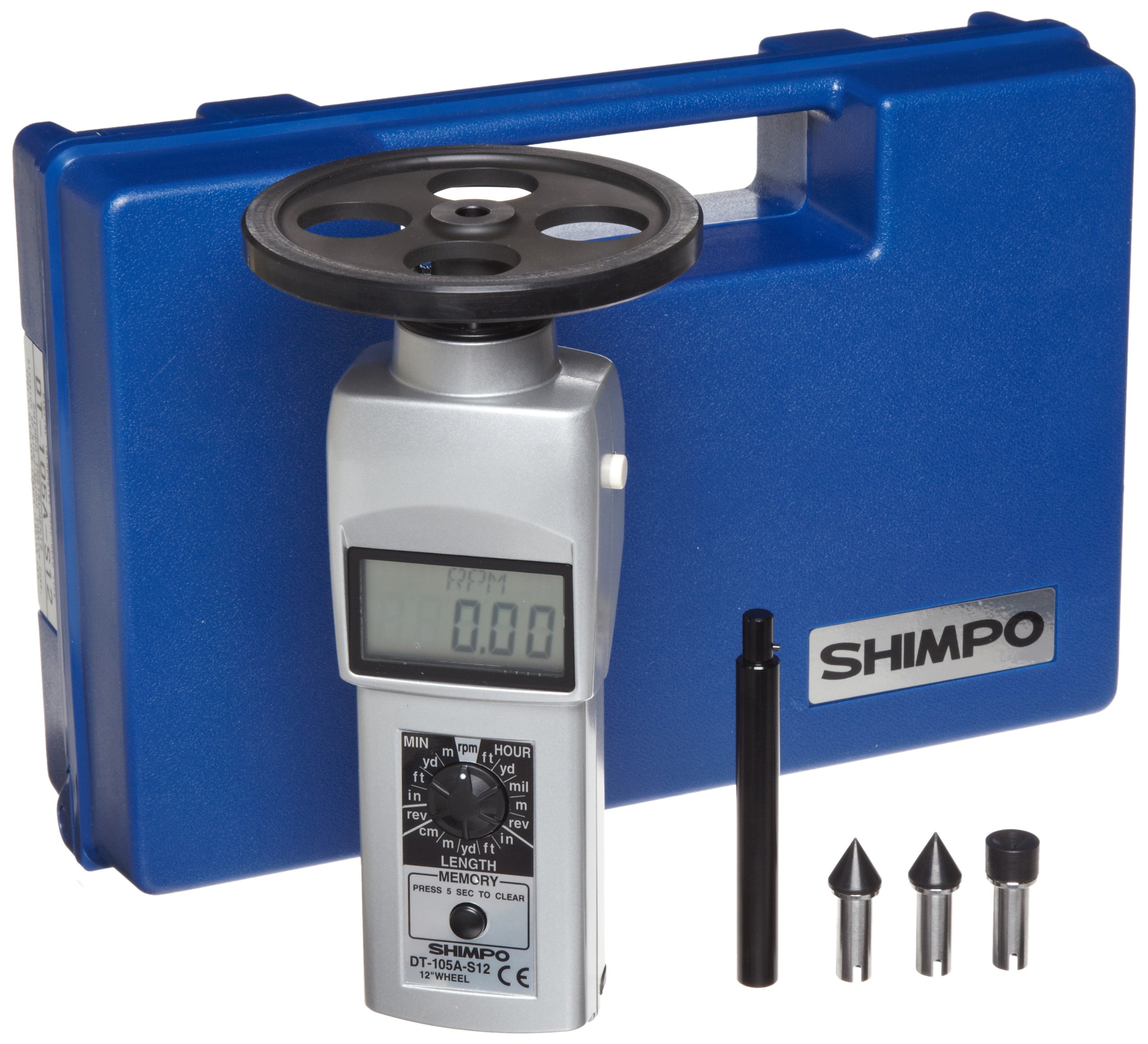

Shimpo DT-105A-S12 Handheld Tachometer with 12" Wheel, LCD Display, 0.10 - 25000rpm Range

Be the first to review this item

ASIN B006C2DMZU

Specifications for this item
Number of Items
1
Range
0.10-25000rpm
Material Type
Aluminum
Part Number
DT-105A-S12
Brand Name
Shimpo
Maximum Measurement
0.10-25000rpm
UNSPSC Code
41112802
Style Name
LCD
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 1 day 5 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Portable contact tachometer with a 12-inch wheel for measuring the speed of motors, conveyor belts, and other moving and rotational systems
  • Measures rotational speed, linear speed, surface speed, and total length for flexibility of use
  • Measures the rate of speed and length in 16 different units for versatility of use
  • Five-digit LCD screen presents test results and the unit of measurement
  • Conforms to NIST standards for compliance with regulations, and CE mark indicates compliance with applicable EU directives

Package Details

Shipping Weight: 2.05 pounds
Package Size: 10.9 x 7.2 x 2.9 inches

Product Description

The Shimpo DT-105A-S12 portable contact tachometer has a 12-inch wheel, measures rotational speed, linear speed, surface speed, and total length, and provides 16 different measurement units for rate and speed. This portable contact tachometer has a 12-inch wheel and is used for measuring the speed of motors, conveyor belts, and other moving and rotational systems. It measures rotational speed, linear speed, surface speed, and total length for flexibility of use, and measures the rate of speed and length in 16 different units for versatility. The five-digit LCD screen presents test results and the unit of measurement. Flashing numerals on the LCD screen indicate speeds outside of the measuring range to help avoid damage to the instrument. It stores up to 13 readings, including the maximum, minimum, and last test result values for ease of data recall. A die-cast aluminum body provides durability in harsh environments, and the device can be tripod-mounted and locked to take continuous measurements. The tachometer conforms to NIST standards for compliance with regulations, and the CE mark indicates compliance with applicable EU directives. It comes with a 12-inch wheel, two cone adapters, a funnel adapter, a 3.5-inch extension shaft, a carrying case, and an NIST certificate. This tachometer is suitable for measuring rotational speed and other measurements in mechanical or industrial engineering environments.

Specifications
Range0.1 to 25,000rpm
Accuracy+/-0.06rpm: 0.10 to 999.9rpm; +/-0.6rpm: 1,000.0 to 9,999.9rpm; +/-0.006% of reading +/-1 digit (+/-2rpm max.): 9,999.9 to 25,000rpm
Measuring unitsRPH, RPM, ft./hour, ft./min., MPH, yards/hour, yards/min., in./min., meters/hour, meters/minute; Length: meters, centimeters, inches, feet, and yards; total revolutions
Update time1 second
Operating temperature32 to 113 degrees F (0 to 45 degrees C)
Power(2) AA batteries
Dimensions7.2 x 2.4 x 1.8 inches/182.5 x 60 x 46mm (H x W x D)
Weight0.9 lb./400g

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Tachometers measure the rate of rotation or surface speed of motors, conveyor belts, and other moving systems. Contact tachometers take measurements through direct contact with the moving surface, and can measure both rpm and surface speed. Typically, contact tachometers come with a range of attachments that can be used to measure speed on different kinds of rotary systems, which may include tips used for measuring shafts with a central hole or flat end surfaces, and rotary wheels for measuring conveyor belts. Noncontact tachometers take measurements from a distance using a beam of infrared light, and provide highly accurate measurements. Contact tachometers are an excellent choice for dirty and dusty environments; noncontact tachometers only calculate rpm but are considered safer because they do not require the operator to be in close contact with the moving surface. Contact/noncontact tachometers, also known as dual, or combination tachometers, can be used to take contact and noncontact measurements. Some tachometers can also take other types of measurements, such as count or frequency, while others can output data to a computer for analysis. Tachometers are used in applications such as automobile maintenance, mechanical engineering, and maintenance of industrial equipment.

Shimpo Instruments manufactures force, torque, and speed evaluation instruments. The company, founded in 1974 and headquartered in Itasca, IL, meets International Organization for Standardization (ISO) standard 9001.

What's in the Box?
  • Shimpo DT-105A-S12 handheld contact tachometer
  • 12-inch wheel
  • (2) cone adapters
  • Funnel adapter
  • 3.5-inch extension shaft
  • Carrying case
  • Instructions
  • NIST certificate
