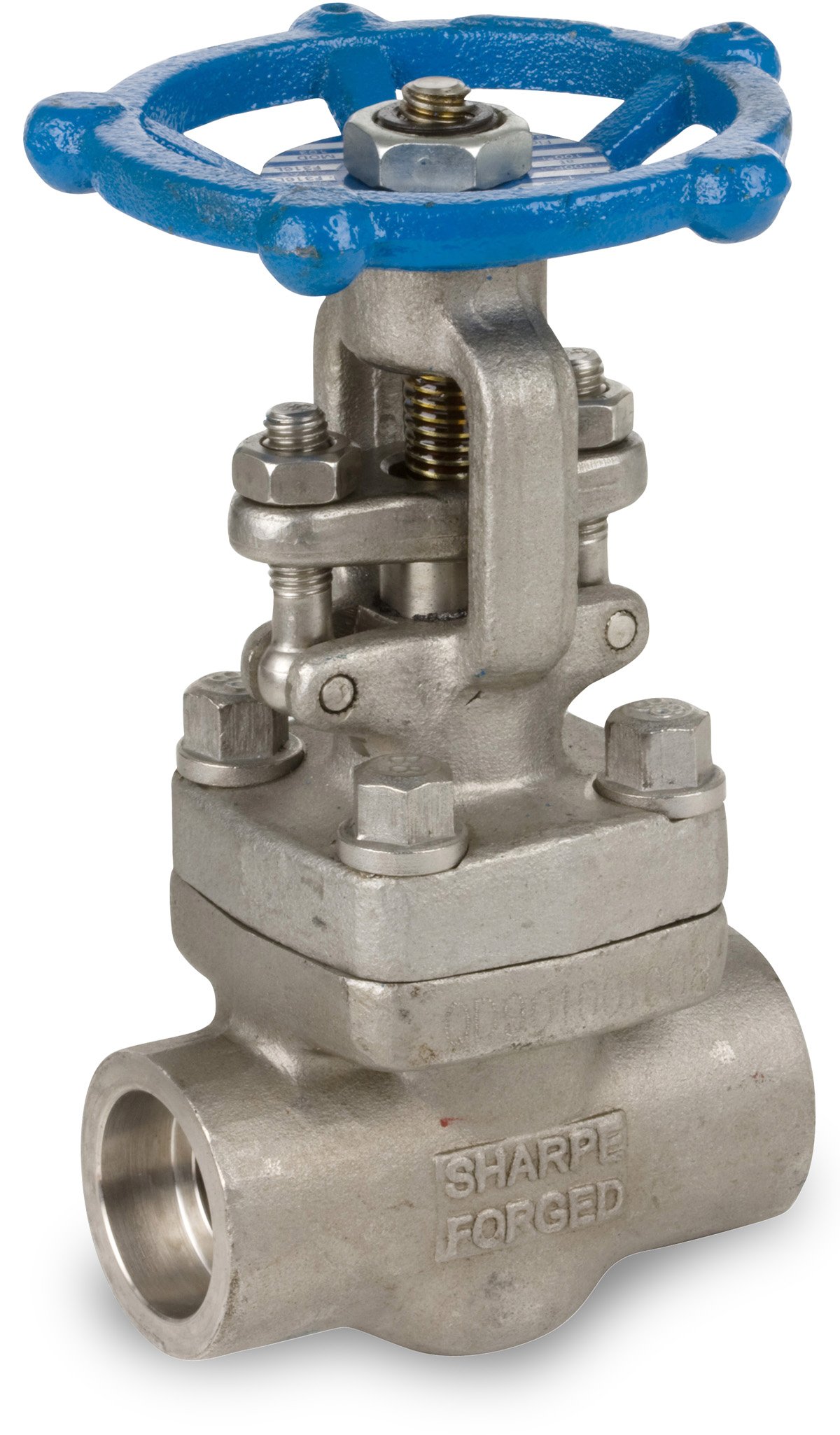

Sharpe Valves 34836 Series Stainless Steel 316L Gate Valve, Class 800, Outside Stem and Yoke, Inline, Hand Wheel, Socket Weld

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Stainless Steel
Structure Description
Outside Stem and Yoke
Handle Type
Hand Wheel
Brand Name
Sharpe Valves
Manufacturer Series Number
34836
Grade
316L
Connector Type
Socket Weld
Style Name
Socket Weld
UNSPSC Code
40141613
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 13 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/2" SV34836SW004 B00835UH02 yes $130.41 Buy Options
3/4" SV34836SW006 B00835UHES yes $148.34 Buy Options
1" SV34836SW010 B00835UHRK yes $230.80 Buy Options
1-1/4" SV34836SW012 B00835UHZC Usually ships in 1 to 3 months $379.78 Buy Options
1-1/2" SV34836SW014 B00835UIB0 yes $422.79 Buy Options
2" SV34836SW020 B00835UIPG Usually ships in 1 to 3 months $598.59 Buy Options

Key Features

  • Made from stainless steel 316L for strength and greater ease in welding than 304-grade steel
  • Outside stem and yoke lifts with the gate to signal visually when the valve is open
  • Socket-weld ends for welding to unthreaded pipes
  • Top-mounted lockable oval handle for lowering and lifting the gate
  • Meets ASTM A182 standards for quality assurance

Product Description

This class 800 Sharpe valves 34836 series stainless steel 316L gate valve has an outside stem, lockable oval handle, and socket weld connections on both ends. It has a bolted bonnet, and stainless steel 316L construction provides strength and greater ease in welding than stainless steel 304. The lower carbon content of the material minimizes harmful carbide precipitation due to welding, ensuring corrosion resistance. The outside stem and yoke moves up and down with the gate, providing a visual signal (when extended) that the valve is open. The stem, which rises through bushing in the handwheel, is kept out of the flow to avoid corrosion and extend valve life. The outside stem makes it easy to lubricate threads for smoother movement. This valve has socket-weld ends with for connecting to unthreaded pipe ends. The joined pieces are welded together to create a tight seal against leaks. Mounted on top of the valve, a manually operated hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes. The hand wheel is lockable to prevent the valve from being opened or closed accidentally. This gate valve meets American Society for Testing and Materials (ASTM) A182 standards for quality assurance.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
