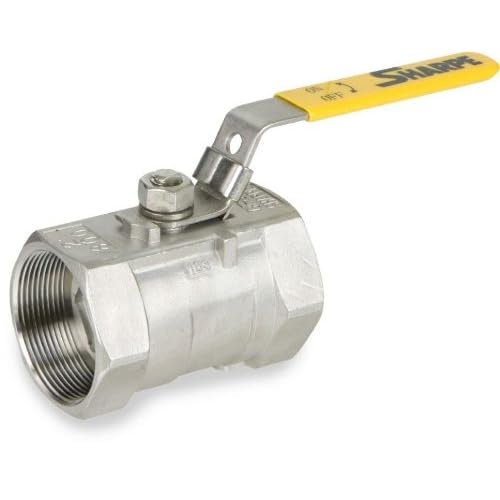

Sharpe Valves 58876 Series Stainless Steel 316 Ball Valve, Unibody, Inline, Lever Handle, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seal Material Type
PTFE
Seat Material Type
PTFE
Material Type
Stainless Steel
Construction Type
Standard Port
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Unibody
Handle Type
Lever Handle
Brand Name
Sharpe Valves
Manufacturer Series Number
58876
Ball Material Type
Stainless Steel 316
Upper Temperature Range
450  Degrees Fahrenheit
Specification Met
ASTM-A351
Grade
316
Maximum Pressure
800  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
Style Name
Threaded
System of Measurement
Inch
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 8 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
1.53 inches 1 SV58876002 B007RRU31U yes $16.99 Buy Options
1.73 inches 1 SV58876003 B007RRU3R4 yes $17.24 Buy Options
2.22 inches 1 SV58876004 B007RRU4CS yes $19.39 Buy Options
2.28 inches 1 SV58876006 B007RRU55Y yes $22.15 Buy Options
2.80 inches 1 SV58876010 B007RRU5LS yes $29.96 Buy Options
3.07 inches 1 SV58876012 B007RRU6HQ yes $44.68 Buy Options
3.26 inches 1 SV58876014 B007RRU770 yes $52.28 Buy Options
3.93 inches 1 SV58876020 B007RRU7QG yes $77.03 Buy Options

Key Features

  • Stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304
  • Lockable lever handle for manual on/off control
  • PTFE seats reduce the risk of leakage
  • Maximum pressure rating of 800 psig for WOG and 150 psig for saturated steam; maximum working temperature of 450 degrees Fahrenheit
  • Female NPT threads for connecting to male threaded pipes

Product Description

The Sharpe Valves 58876 series stainless steel 316 unibody inline ball valve has a lever handle and National Pipe Taper (NPT) male threads on both ends. This valve body is made of stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304. Stainless steel 316 is sometimes called "marine-grade stainless steel" due to its resistance to chloride corrosion. This valve has a stainless steel lockable lever handle for manual on/off control. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage. The valve is standard (or regular) port for reduced valve size and cost. This valve has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum pressure rating is 800 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), 150 psig for working steam pressure (WSP), and the maximum working temperature is 450 degrees Fahrenheit. This valve meets American Society for Testing and Materials (ASTM) A351 standards for quality assurance.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
