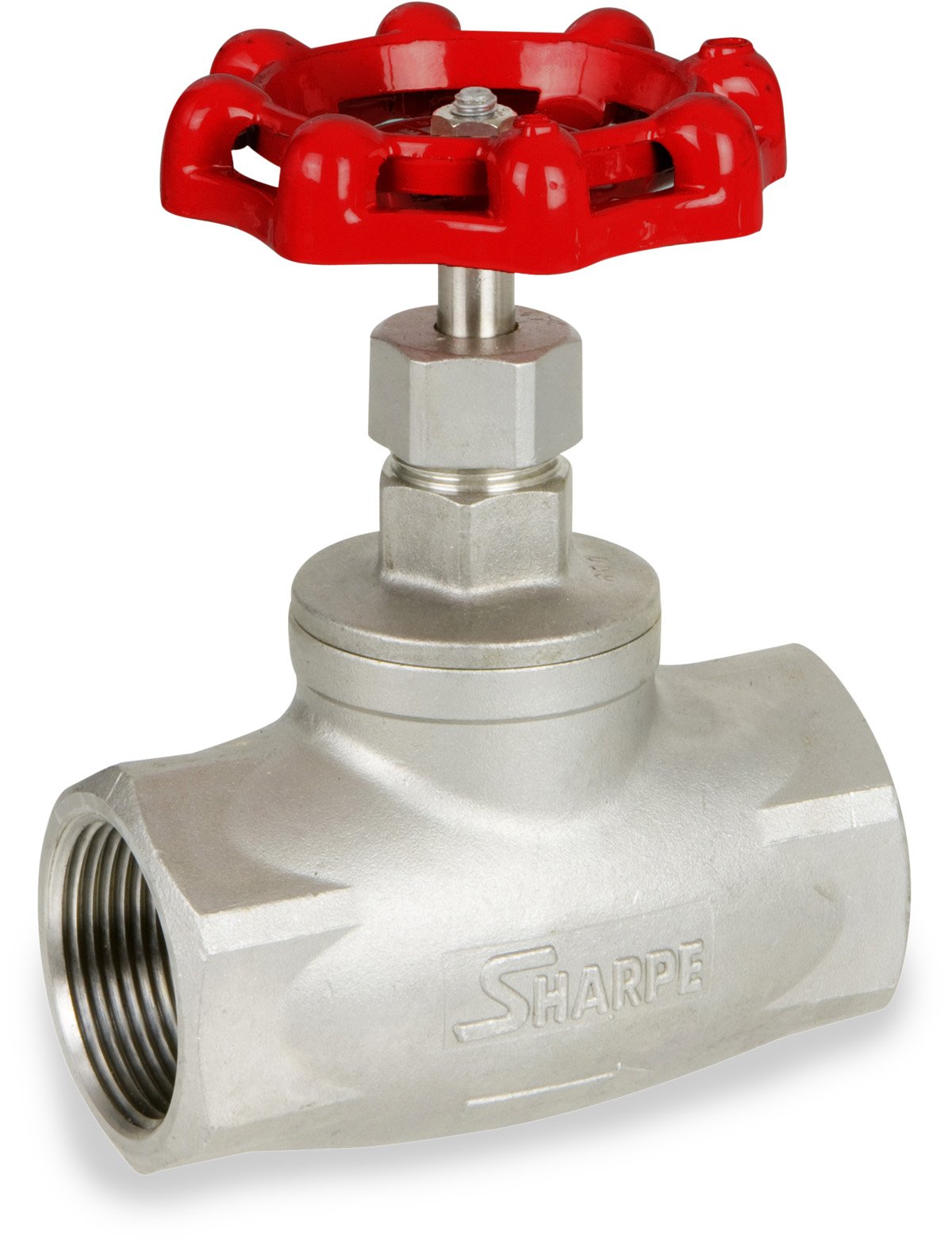

Sharpe Valves 40276 Series Stainless Steel 316 Globe valve, Screwed Bonnet, Inline, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Stainless Steel
Structure Description
Screwed Bonnet
Brand Name
Sharpe Valves
Manufacturer Series Number
40276
Upper Temperature Range
350  Degrees Fahrenheit
Grade
316
Maximum Pressure
200  PSI
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141611
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 10 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
1/2" 2.56" SV40276TE004 B00835QH6U 5 $50.18 Buy Options
3/4" 3.15" SV40276TE006 B00835QHL0 1 $55.16 Buy Options
1" 3.54" SV40276TE010 B00835QHQU 4 $67.85 Buy Options
1-1/4" 4.13" SV40276TE012 B00835QHY2 2 $93.70 Buy Options
1-1/2" 4.72" SV40276TE014 B00835QI5U 3 $127.60 Buy Options
2" 5.51" SV40276TE020 B00835QIAK 4 $188.03 Buy Options

Key Features

  • Inline globe valve with non-rising stem and screwed bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Stainless steel 316 valve body and disc for higher strength and greater corrosion resistance than stainless steel 304
  • Screwed bonnet for tight assembly and reduced risk of leakage
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • 200 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) at 350 degrees Fahrenheit

Product Description

The Sharpe 40276 series inline stainless steel 316 globe valve has a screwed bonnet, non-rising stem, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body and disc are constructed of stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304. Stainless steel 316 is sometimes called "marine-grade stainless steel" due to its resistance to chloride corrosion. The maximum pressure is 200 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) at 350 degrees Fahrenheit. The valve has a screwed bonnet for tight assembly and reduced risk of leakage, and female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads. This valve meets standards American Society for Testing and Materials ASTM A351 for quality assurance.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
