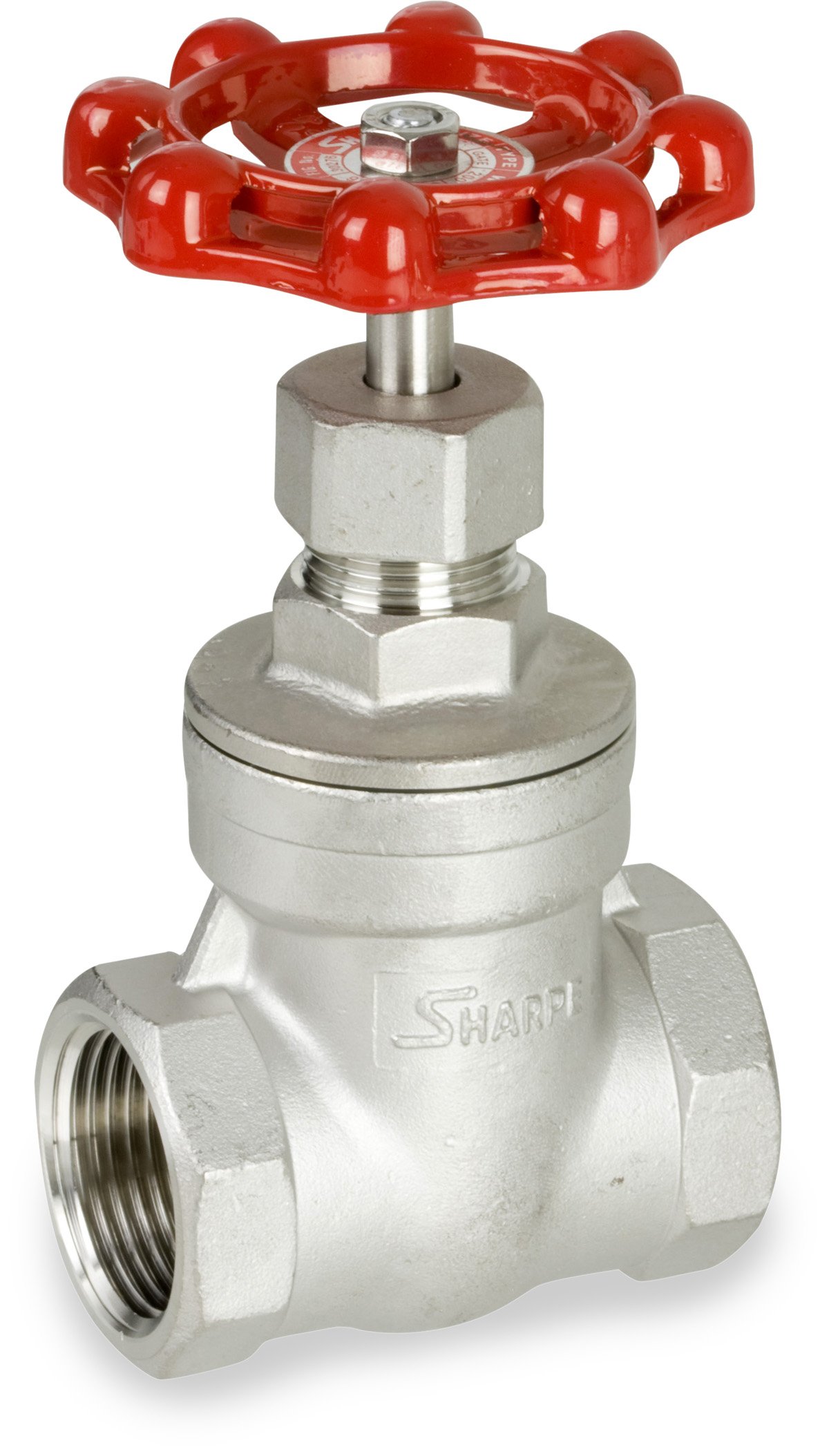

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sharpe Valves 30276 Series Stainless Steel 316 Gate Valve, Class 200, Non-Rising Stem, Inline, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Stainless Steel
Construction Type
Reduced Port
Structure Description
Non-Rising Stem
Brand Name
Sharpe Valves
Manufacturer Series Number
30276
Upper Temperature Range
350  Degrees Fahrenheit
Grade
316
Maximum Pressure
200  PSI
Connector Type
NPT Female
UNSPSC Code
40141613
Style Name
Threaded
System of Measurement
Inch
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 3 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
1/2" 2.13" SV30276TE004 B00835V1U2 yes $53.16 Buy Options
3/4" 2.28" SV30276TE006 B00835V23I yes $63.36 Buy Options
1" 2.56" SV30276TE010 B00835V2F6 yes $79.86 Buy Options
1-1/4" 2.91" SV30276TE012 B00835V2OW yes $110.31 Buy Options
1-1/2" 3.07" SV30276TE014 B00835V2WO yes $129.03 Buy Options
2" 3.43" SV30276TE020 B00835V3FU yes $179.38 Buy Options

Key Features

  • Made from stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304
  • Non-rising stem stays fixed in place when gate is raised or lowered for low clearance use
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • 200 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG)
  • Top-mounted hand wheel for lowering and lifting the gate

Product Description

This class 200 Sharpe valves 30276 series stainless steel 316 gate valve has a non-rising stem and female National Pipe Taper (NPT) threads on both ends. It has a solid wedge gate and screwed bonnet, and its stainless steel 316 construction provides higher strength and greater corrosion resistance than stainless steel 304. Stainless steel 316 is sometimes called "marine-grade stainless steel" due to its resistance to chloride corrosion. The non-rising stem stays fixed in place when the gate is raised or lowered, making it suitable for low clearance or underground use. The maximum pressure is 200 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) and the working temperature range is 0 to 350 degrees Fahrenheit. This valve has female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads Mounted on top of the valve, a manually operated hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes This gate valve meets American Society for Testing and Materials (ASTM) A351 standards for quality assurance.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
