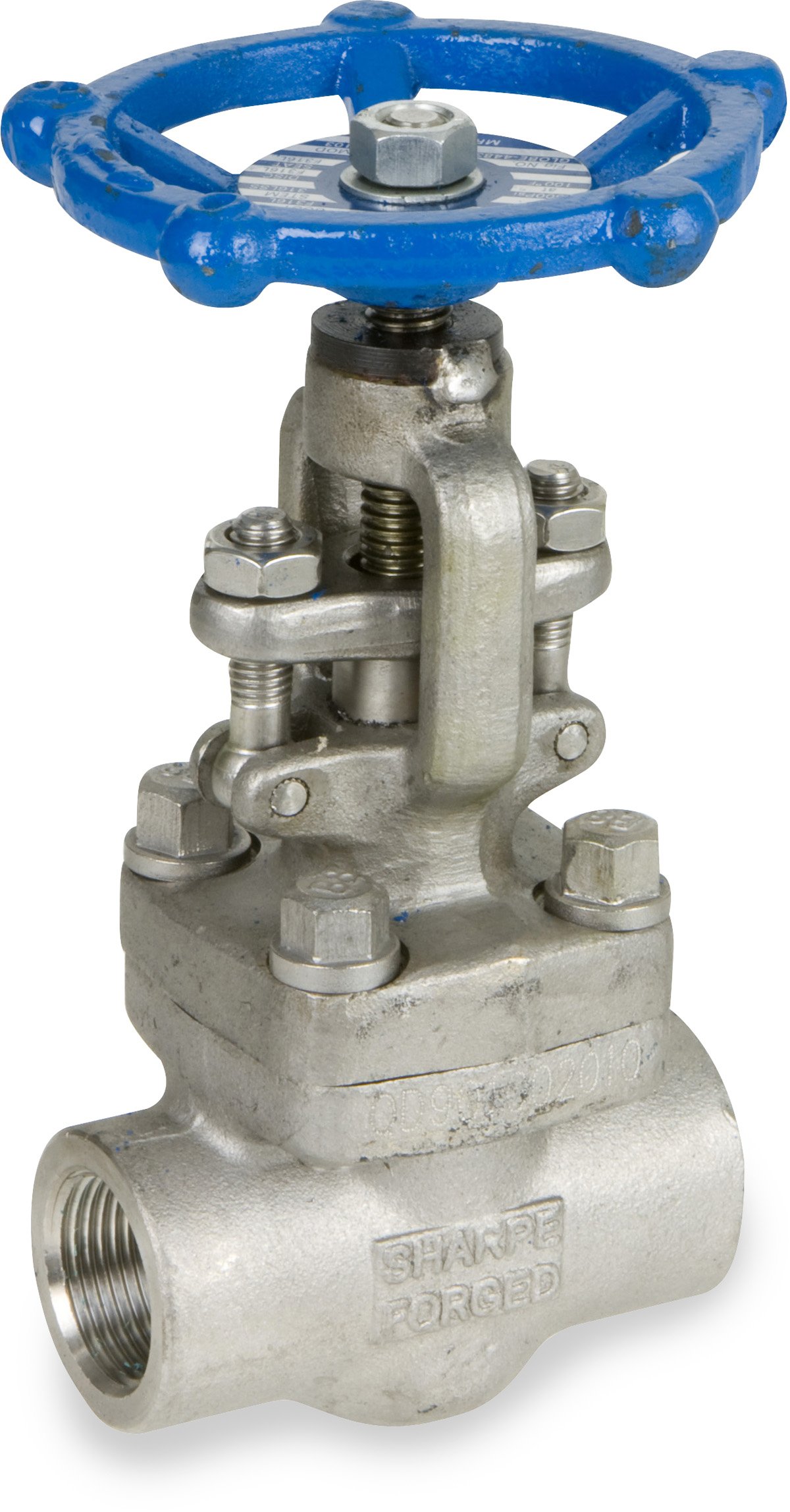

Sharpe Valves 44836 Series Stainless Steel 316L Globe Valve, Bolted Bonnet, Inline, Hand Wheel, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Stainless Steel
Structure Description
Bolted Bonnet
Handle Type
Hand Wheel
Brand Name
Sharpe Valves
Manufacturer Series Number
44836
Grade
316L
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141611
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 10 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/2" SV44836TE004 B00835UMJS yes $148.98 Buy Options
3/4" SV44836TE006 B00835UMT8 Temporarily out of stock. Order now and we'll deliver when available. $147.68 Buy Options
1" SV44836TE010 B00835UN3I yes $258.98 Buy Options
1-1/4" SV44836TE012 B00835UN9C Usually ships in 1 to 3 months $398.54 Buy Options
1-1/2" SV44836TE014 B00835UNP6 Usually ships in 1 to 3 months $535.92 Buy Options
2" SV44836TE020 B00835UNYC Usually ships in 1 to 3 months $756.96 Buy Options

Key Features

  • Class 800 inline globe valve with non-rising stem and bolted bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Stainless steel 316L valve body for strength and greater ease in welding than 304-grade steel
  • Bolted bonnet for tight assembly and reduced risk of leakage
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • Lockable oval handle for safety

Product Description

This Class 800 Sharpe 44836 series inline stainless steel 316L globe valve has a bolted bonnet, non-rising stem, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of stainless steel 316L for strength and greater ease in welding than stainless steel 304. The lower carbon content of the material minimizes harmful carbide precipitation due to welding, ensuring corrosion resistance. A lockable oval handle prevents the valve from being opened or closed accidentally. The valve has a bolted bonnet for tight assembly and reduced risk of leakage, and female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads. This valve meets standards American Society for Testing and Materials ASTM A182 for quality assurance.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
