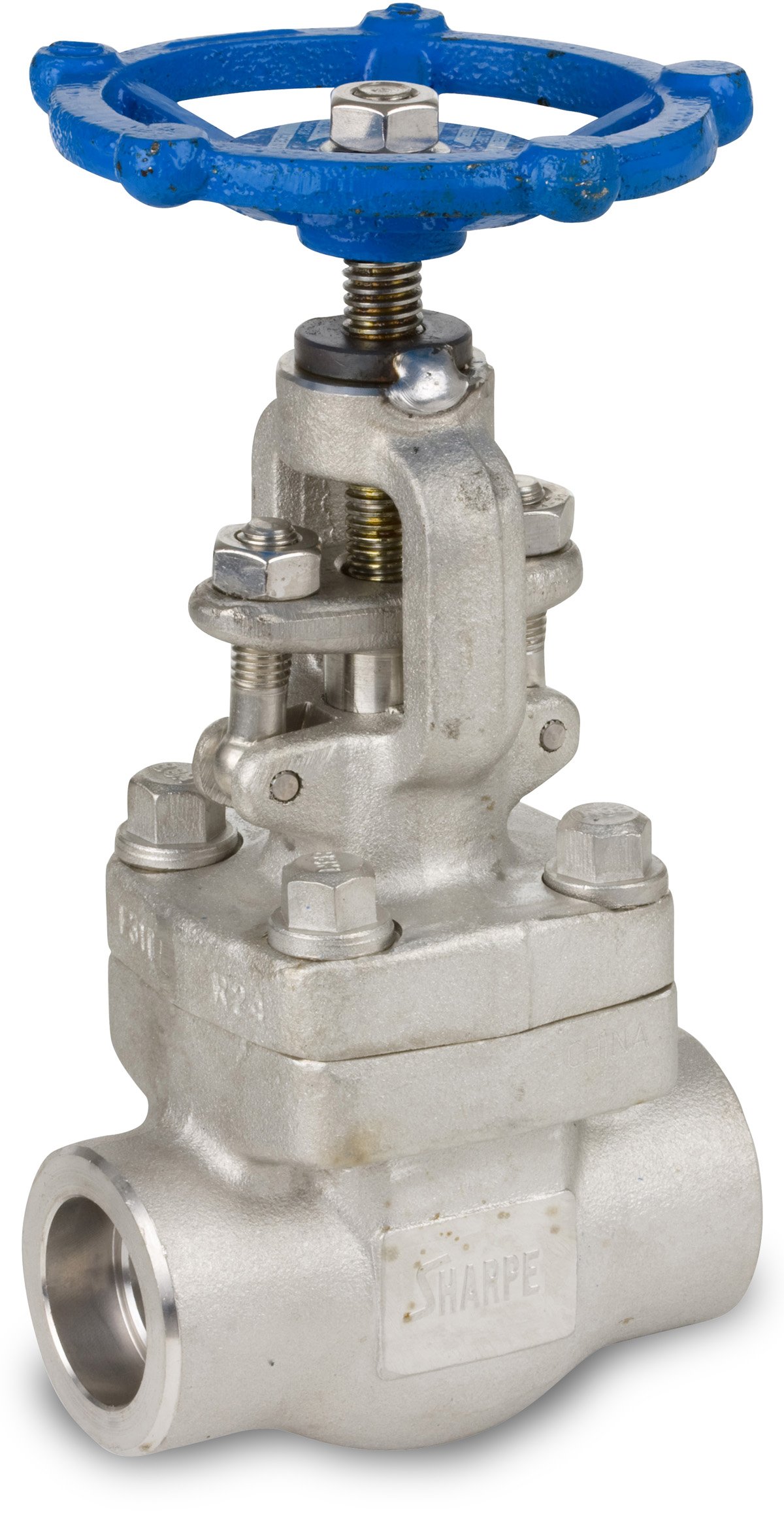

Sharpe Valves 44836 Series Stainless Steel 316L Globe Valve, Bolted Bonnet, Inline, Hand Wheel, Socket Weld

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Stainless Steel
Structure Description
Bolted Bonnet
Handle Type
Hand Wheel
Brand Name
Sharpe Valves
Manufacturer Series Number
44836
Grade
316L
Connector Type
Socket Weld
Style Name
Socket Weld
UNSPSC Code
40141611
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-6 of 6
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/2" SV44836SW004 B00835UKPE yes $144.76 Buy Options
3/4" SV44836SW006 B00835UL3A yes $163.75 Buy Options
1" SV44836SW010 B00835ULCG Temporarily out of stock. Order now and we'll deliver when available. $281.90 Buy Options
1-1/4" SV44836SW012 B00835ULNU Temporarily out of stock. Order now and we'll deliver when available. $396.08 Buy Options
1-1/2" SV44836SW014 B00835ULY4 Temporarily out of stock. Order now and we'll deliver when available. $532.61 Buy Options
2" SV44836SW020 B00835UM84 Temporarily out of stock. Order now and we'll deliver when available. $743.19 Buy Options

Key Features

  • Class 800 inline globe valve with non-rising stem and bolted bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Stainless steel 316L valve body for strength and greater ease in welding than 304-grade steel
  • Bolted bonnet for tight assembly and reduced risk of leakage
  • Socket-weld ends for welding to unthreaded pipes
  • Lockable oval handle for safety

Product Description

The Sharpe 44836 series inline stainless steel 316L globe valve has a bolted bonnet, non-rising stem, and socket weld threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of stainless steel 316L for strength and greater ease in welding than stainless steel 304. The lower carbon content of the material minimizes harmful carbide precipitation due to welding, ensuring corrosion resistance. A lockable oval handle prevents the valve from being opened or closed accidentally. The valve has a bolted bonnet for tight assembly and reduced risk of leakage, and socket-weld ends for connecting to unthreaded pipe ends. The joined pieces are welded together to create a tight seal against leaks. This valve meets standards American Society for Testing and Materials ASTM A182 for quality assurance.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
