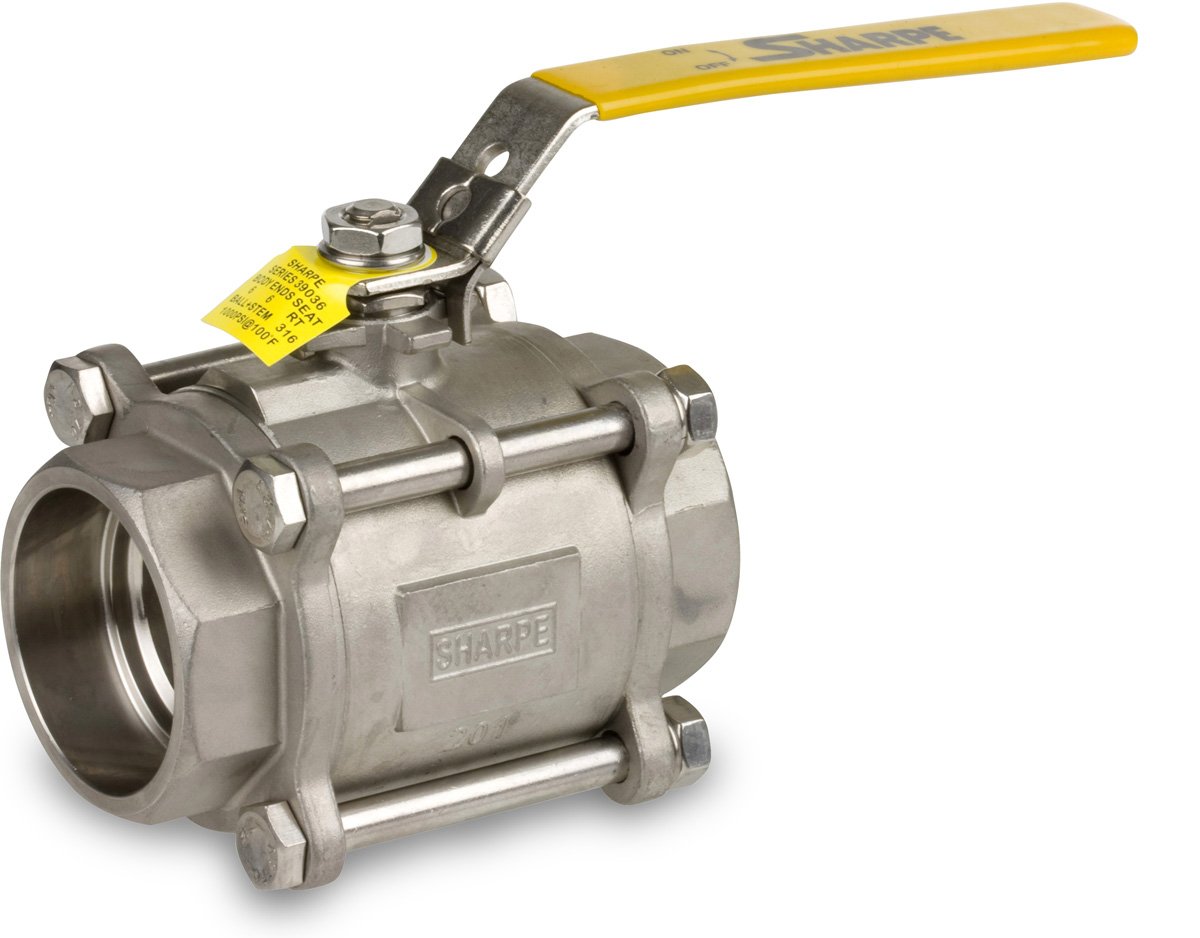

Sharpe Valves 39036 Series Stainless Steel 316 Ball Valve, Three Piece, Inline, Lockable Lever Handle, Socket Weld

Be the first to review this item

Product Specifications
Internal Packing Material Type
PTFE
Item Shape
Inline
Seal Material Type
RTFE 15% Glass Reinforced
Seat Material Type
RTFE 15% Glass Reinforced
Material Type
Stainless Steel
Construction Type
Standard port
Structure Description
Three Piece
Handle Type
Lockable Lever Handle
Brand Name
Sharpe Valves
Manufacturer Series Number
39036
Ball Material Type
Stainless Steel 316
Upper Temperature Range
450  Degrees Fahrenheit
Grade
316
Connector Type
Socket Weld
UNSPSC Code
40141607
Style Name
Socket Weld
System of Measurement
Inch
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 22 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-11 of 11
2.28 inches 1 SV39036SW002 B00835U5JK 1 $22.65 Buy Options
2.28 inches 1 SV39036SW003 B00835U5UO 1 $22.65 Buy Options
2.48 inches 1 SV39036SW004 B00835U630 2 $28.34 Buy Options
2.87 inches 1 SV39036SW006 B00835U6E4 2 $32.34 Buy Options
3.35 inches 1 SV39036SW010 B00835U6LW 1 $46.51 Buy Options
3.78 inches 1 SV39036SW012 B00835U6US 1 $76.22 Buy Options
4.49 inches 1 SV39036SW014 B00835U73E 2 $110.95 Buy Options
5.28 inches 1 SV39036SW020 B00835U7ES 1 $170.40 Buy Options
7.09 inches 1 SV39036SW024 B00835U7N4 Usually ships in 2 to 4 weeks $337.46 Buy Options
7.87 inches 1 SV39036SW030 B00835U7Z2 Usually ships in 2 to 4 weeks $516.82 Buy Options
8.98 inches 1 SV39036SW040 B00835U874 Usually ships in 2 to 4 weeks $965.70 Buy Options

Key Features

  • Stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304
  • Lockable stainless steel lever handle with a PVC sleeve for manual on/off control
  • RPTFE 15% glass reinforced seats reduce the risk of leakage
  • Maximum pressure rating of 1000 psig for WOG, and maximum working temperature of 450 degrees Fahrenheit
  • Socket-weld ends for welding to unthreaded pipes

Product Description

The Sharpe Valves 39036 series stainless steel 316 three-piece inline ball valve has a lockable lever handle and socket weld connections on both ends. This valve body is made of stainless steel 316 for higher strength and greater corrosion resistance than stainless steel 304. Stainless steel 316 is sometimes called "marine-grade stainless steel" due to its resistance to chloride corrosion. This valve has a lockable stainless steel lever handle with a PVC sleeve for manual on/off control. Reinforced polytetrafluoroethylene (RPTFE) 15% glass reinforced seats reduce the risk of leakage. The valve is standard (or regular) port for reduced valve size and cost. This valve has socket-weld ends for connecting to unthreaded pipe ends. The joined pieces are welded together to create a tight seal against leaks. The maximum pressure rating is 1000 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and the maximum working temperature is 450 degrees Fahrenheit.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
