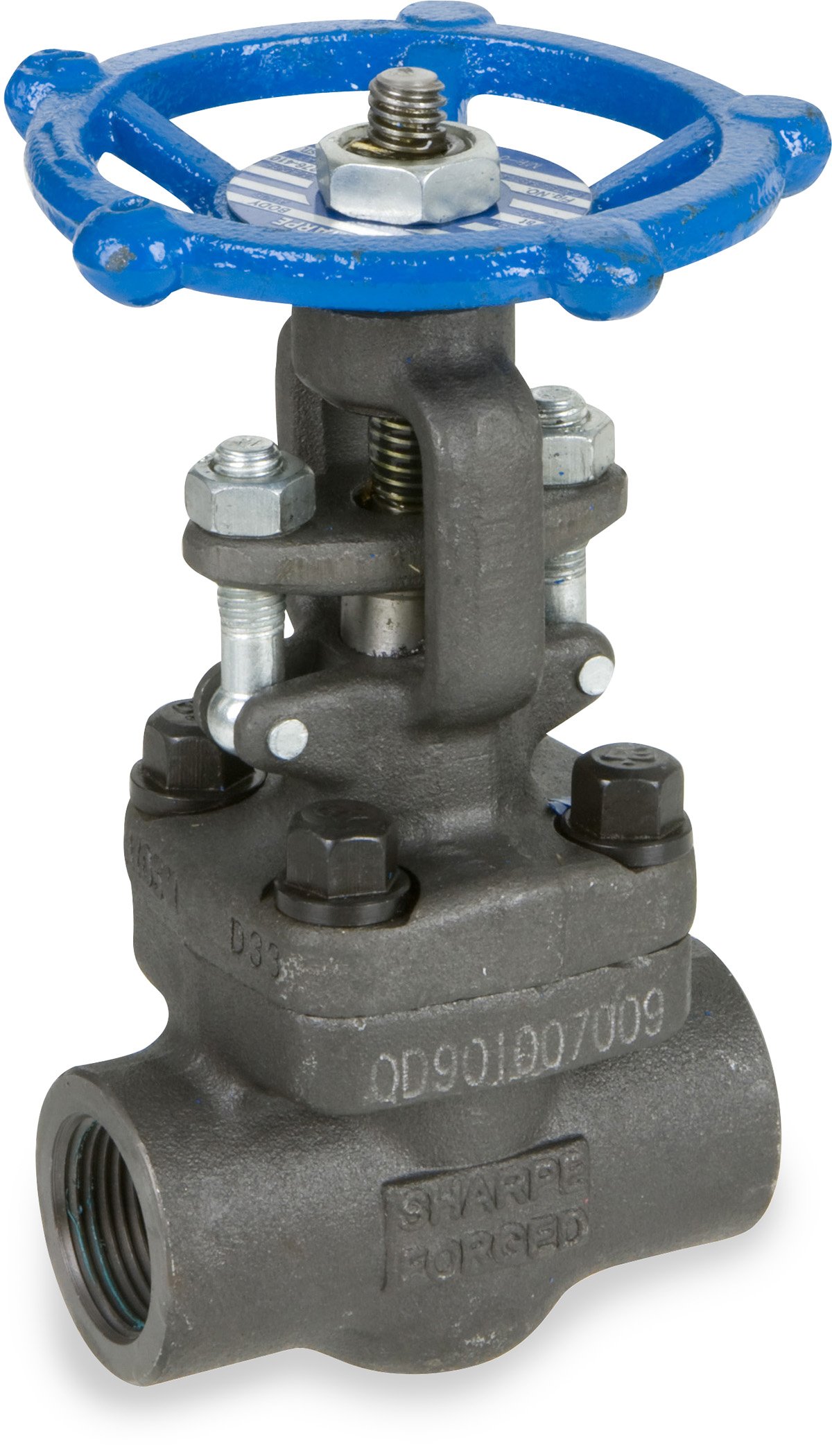

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sharpe Valves 34834 Series Carbon Steel Gate Valve, Class 800, Rising Stem, Inline, Hand Wheel, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Carbon Steel
Construction Type
Reduced Port
Structure Description
Rising Stem
Handle Type
Hand Wheel
Brand Name
Sharpe Valves
Manufacturer Series Number
34834
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141613
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 24? Order in-stock items in the next 17 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connection Size Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-8 of 8
1/4" SV34834TE002 B00835UZTA 1 $40.99 Buy Options
3/8" SV34834TE003 B00835V04O 2 $40.10 Buy Options
1/2" SV34834TE004 B00835V0D0 1 $33.30 Buy Options
3/4" SV34834TE006 B00835V0LC 2 $36.02 Buy Options
1" SV34834TE010 B00835V0US 3 $57.35 Buy Options
1-1/4" SV34834TE012 B00835V13Y 3 $94.99 Buy Options
1-1/2" SV34834TE014 B00835V1D4 1 $99.56 Buy Options
2" SV34834TE020 B00835V1K2 3 $148.07 Buy Options

Key Features

  • Made from carbon steel for tensile strength and hardness
  • Rising stem with inside screw lifts with the gate to signal visually when the valve is open
  • Female National Pipe Taper (NPT) threads for connecting to male threaded pipes
  • Top-mounted lockable oval handle for lowering and lifting the gate
  • Meets ASTM A105 standards for quality assurance

Product Description

This class 800 Sharpe valves 34834 series carbon steel gate valve has a rising stem, lockable oval handle, and female National Pipe Taper (NPT) threads on both ends. It has a bolted bonnet, and its carbon steel construction provides tensile strength and hardness. The rising stem moves up and down with the gate, providing a visual signal (when extended) that the valve is open. This stem design also prevent the stem threads from coming into contact with flow to avoid corrosion to extend valve life. This valve has female NPT threads on both ends for connecting to male pipes with tighter seals than straight threads. Mounted on top of the valve, a manually operated hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes. The hand wheel is lockable to prevent the valve from being opened or closed accidentally. This gate valve meets American Society for Testing and Materials (ASTM) A105 standards for quality assurance.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
