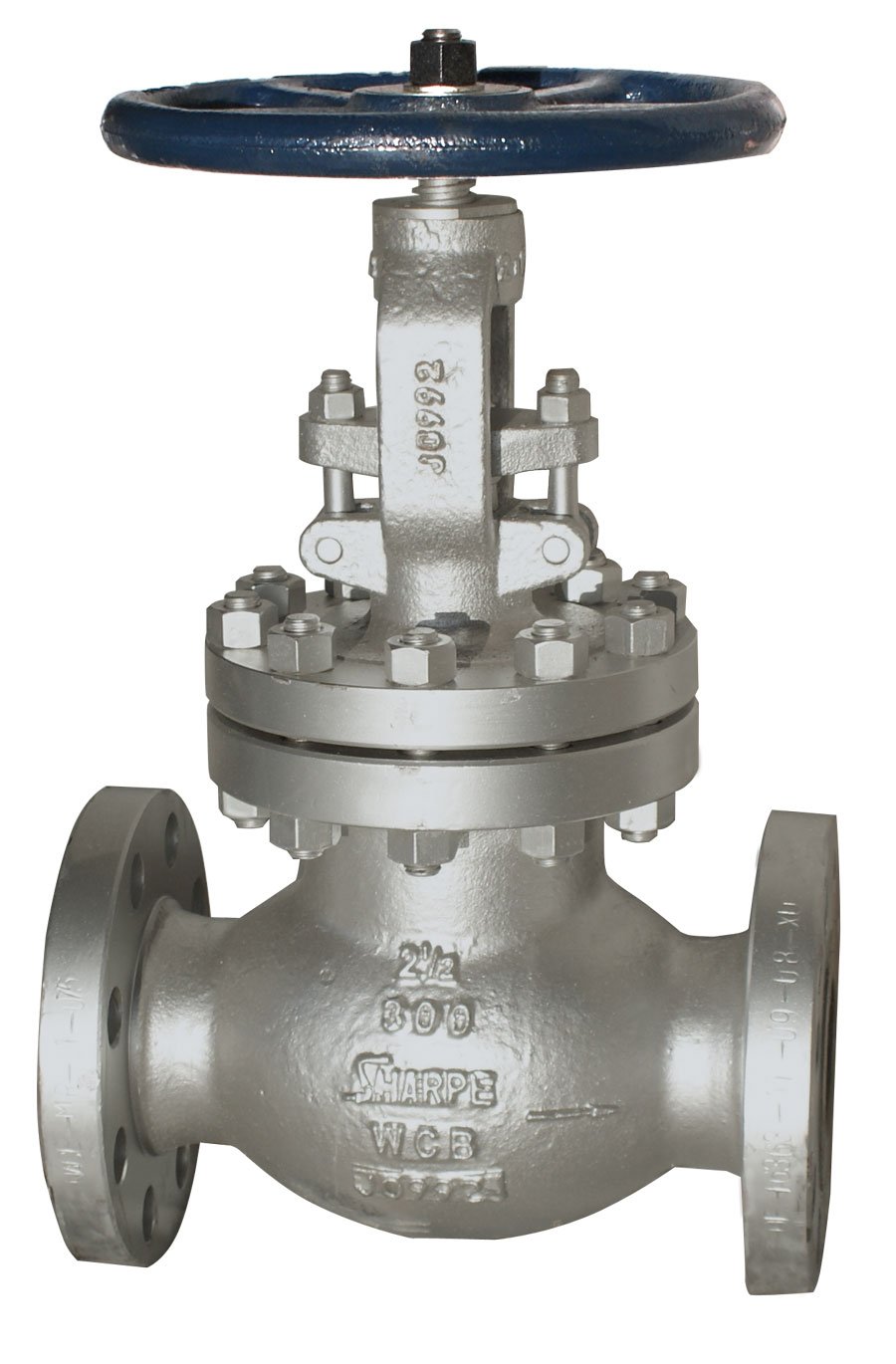

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sharpe Valves 45314 Series Carbon Steel Globe Valve, Bolted Bonnet, Inline, Flanged

Be the first to review this item

Product Specifications
Manufacturer Series Number
45314
Item Shape
Inline
Material Type
Carbon Steel
Connector Type
Flanged
Style Name
Flanged
UNSPSC Code
40141611
Structure Description
Bolted Bonnet
Brand Name
Sharpe Valves
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 9 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-4 of 4
2" 10.50" SV45314020 B00835VWBU yes $332.79 Buy Options
2-1/2" 11.50" SV45314024 B00835VWI8 Usually ships in 1 to 3 months $469.85 Buy Options
3" 12.50" SV45314030 B00835VWRO Usually ships in 1 to 3 months $515.48 Buy Options
4" 14" SV45314040 B00835VX4Q Usually ships in 1 to 3 months $763.05 Buy Options

Key Features

  • Inline globe valve with rising stem and bolted bonnet for on/off actuation and flow control (throttling) in a pipeline
  • ASTM A216 carbon steel valve body for tensile strength and hardness
  • Bolted bonnet for tight assembly and reduced risk of leakage
  • Flanged connections for bolting to pipes
  • Maximum working pressure of 285 pounds per square inch (psi)

Product Description

The Sharpe 45314 series inline carbon steel globe valve has a bolted bonnet, non-rising stem, and flanged connections on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of American Society for Testing and Material (ASTM) A216 carbon steel for tensile strength and hardness. The maximum working pressure is 285 pounds per square inch (psi). The valve has a bolted bonnet for tight assembly and reduced risk of leakage, and flanged end connections for bolting to compatible pipe flanges. The stem/wedge connection meets the API 600 Pull test. This valve meets the following specifications for quality assurance: American National Standards Institute (ANSI) B16.34, B16.10, B16.5, B16.25; and American Petroleum Institute (API) 598.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
