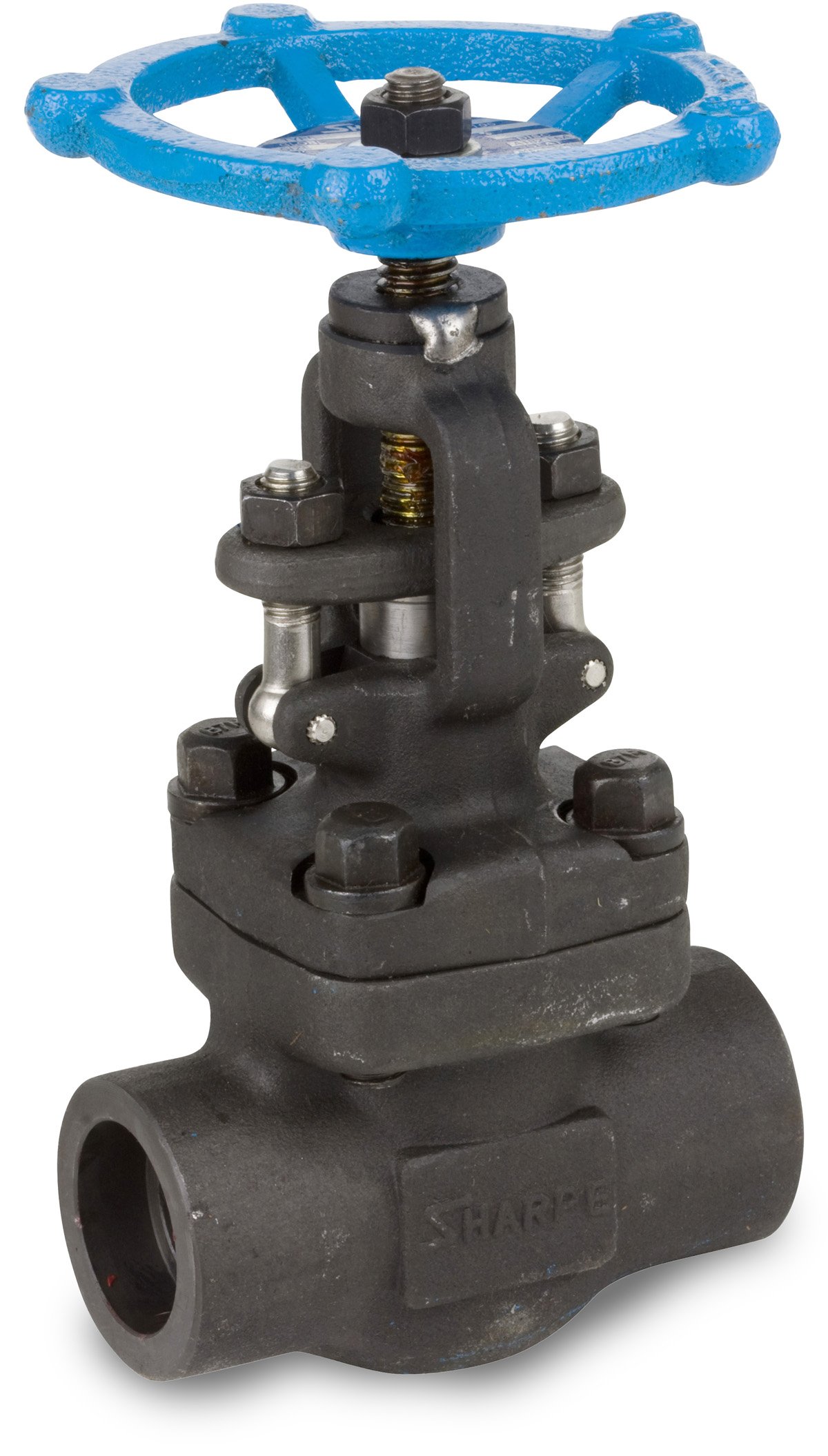

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sharpe Valves 44834 Series Carbon Steel Globe Valve, Bolted Bonnet, Inline, Socket Weld

Be the first to review this item

Product Specifications
Item Shape
Inline
Material Type
Carbon Steel
Structure Description
Bolted Bonnet
Brand Name
Sharpe Valves
Manufacturer Series Number
44834
Maximum Pressure
200  PSI
Connector Type
Socket Weld
UNSPSC Code
40141611
Style Name
Socket Weld
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 16 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
1/4"   SV44834SW002 B00835V3RS yes $48.11 Buy Options
3/8"   SV44834SW003 B00835V46S yes $47.86 Buy Options
1/2" 3.15" SV44834SW004 B00835V4F4 yes $49.02 Buy Options
3/4" 3.54" SV44834SW006 B00835V4S6 yes $50.08 Buy Options
1" 4.33" SV44834SW010 B00835V4YK yes $68.70 Buy Options
1-1/4" 5" SV44834SW012 B00835V56M yes $124.17 Buy Options
1-1/2" 6.1" SV44834SW014 B00835V5HG yes $131.22 Buy Options
2" 6.69" SV44834SW020 B00835V5QC yes $151.00 Buy Options

Key Features

  • Class 800 inline globe valve with non-rising stem and bolted bonnet for on/off actuation and flow control (throttling) in a pipeline
  • Carbon steel valve body for tensile strength and hardness
  • Bolted bonnet for tight assembly and reduced risk of leakage
  • Socket-weld ends for welding to unthreaded pipes
  • Maximum working pressure of 200 pounds per square inch (psi)

Product Description

This Class 800 Sharpe 44834 series inline carbon steel globe valve has a screwed bonnet, non-rising stem, and socket weld threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body is constructed of carbon steel for tensile strength and hardness. The maximum pressure is 200 pounds per square inch (psi). The valve has a bolted bonnet for tight assembly and reduced risk of leakage, and socket-weld ends for connecting to unthreaded pipe ends. The joined pieces are welded together to create a tight seal against leaks. This valve meets standards American Society for Testing and Materials ASTM A105 for quality assurance.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

Sharpe Valves manufactures a wide variety of valves, including stainless and carbon steel ball, gate, globe, and check valves. The company, founded in 1986 and headquartered in Chicago, IL, meets International Organization for Standardization (ISO) 9001:2008 standards based on Sharpe's design and manufacturing of valves.
