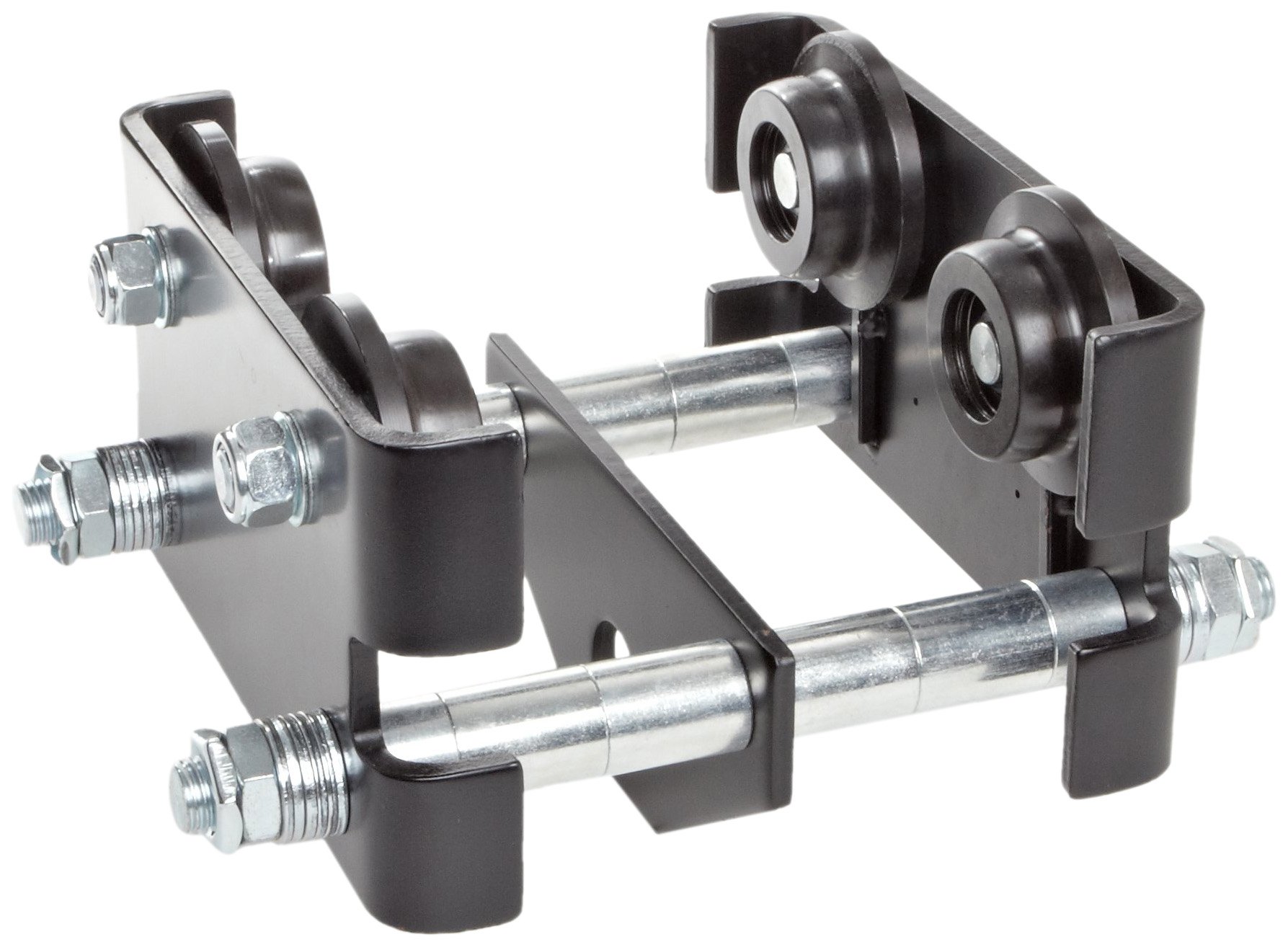

CM 84A Series Heavy Duty Rolled Steel Manual Plain Trolley with Hook Mounted, 2000 lbs Capacity, 24" Minimum Radius Curve

Be the first to review this item

ASIN B004C44C8G

Specifications for this item
Number of Items
1
Overall Height
5-3/8  inches
Material Type
Steel
Part Number
CBTP0100
Item Weight
1 pounds
Brand Name
CM
Manufacturer Series Number
CM 84A
Mounting Type
Hook
Load Capacity
2000  pounds
UNSPSC Code
24101511

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 22 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Plain trolley features a minimal maintenance design with fully sealed precision bearings, heavy-duty side frames and fully machined wheel tread for a superior performance over a long life
  • Heavy rolled steel side frames extend beyond the wheels to provide these trolleys with superior strength, rigidity and added protection for the trackwheels
  • Trolley wheels are fully machined from alloy cast iron and hardened for high strength and long life
  • Alloy steel axles and equalizer pins are heat treated for maximum strength and wear life
  • 1 year warranty

Package Details

Shipping Weight: 27.3 pounds
Package Size: 12.5 x 10.9 x 6.7 inches

Product Description

The CM series 84 plain trolley features a minimal maintenance design with fully sealed precision bearings, heavy-duty side frames and fully machined wheel tread for a superior performance over a long life. Trolleys are equipped with Lifetime lubricated and precision ball bearings. Heavy rolled steel side frames extend beyond the wheels to provide these trolleys with superior strength, rigidity and added protection for the trackwheels. Units operate on universal wheel treads for use on flat or tapered beam flanges. Trolley wheels are fully machined from alloy cast iron and hardened for high strength and long life. Alloy steel axles and equalizer pins are heat treated for maximum strength and wear life. Enamel finish. Hook mounting. Cast Iron wheel. 1 ton capacity. 5" - 12" Beam height. 3.00" - 6.00" Flange width. 24" Minimum radius curve. 1 year warranty.
