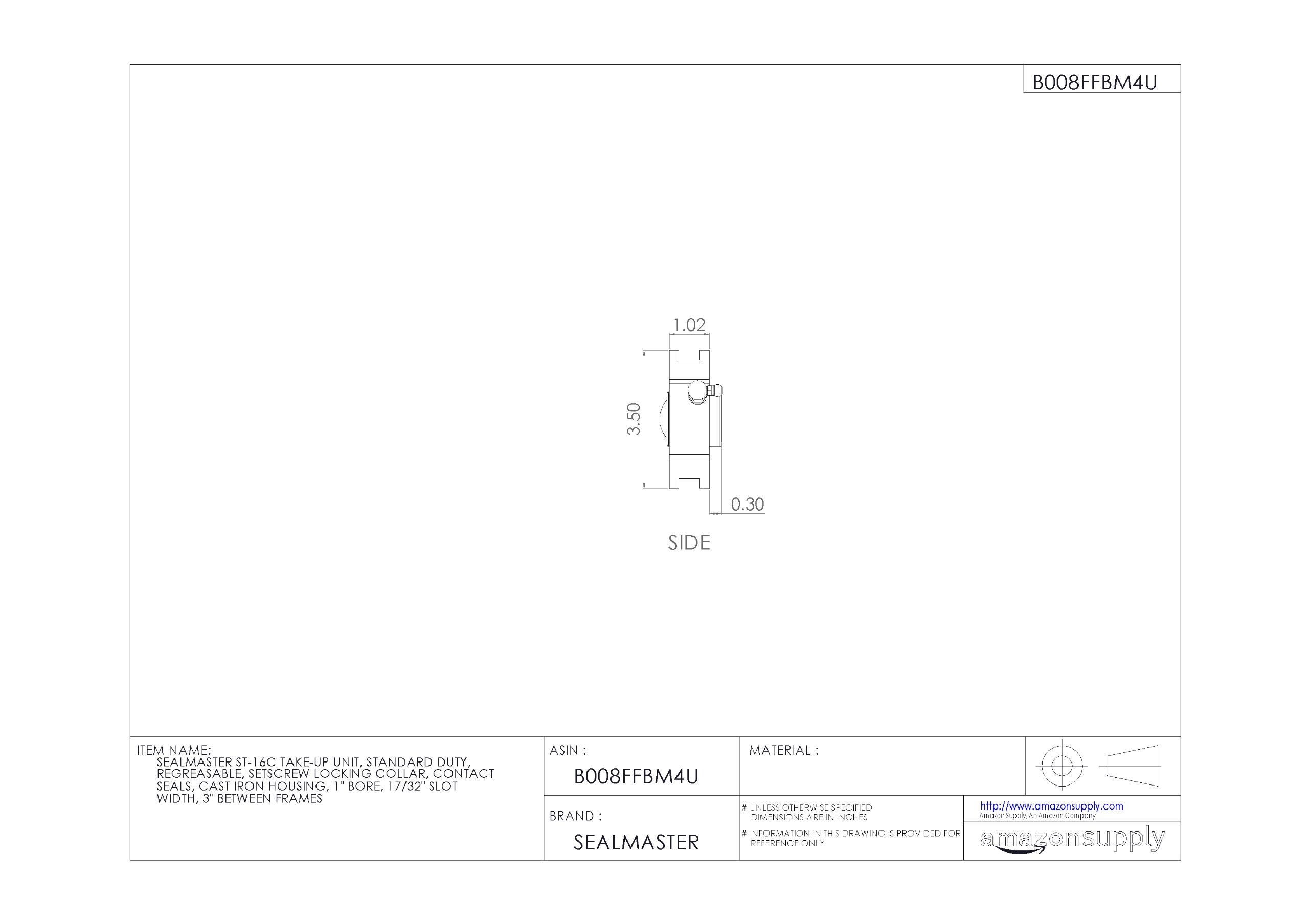

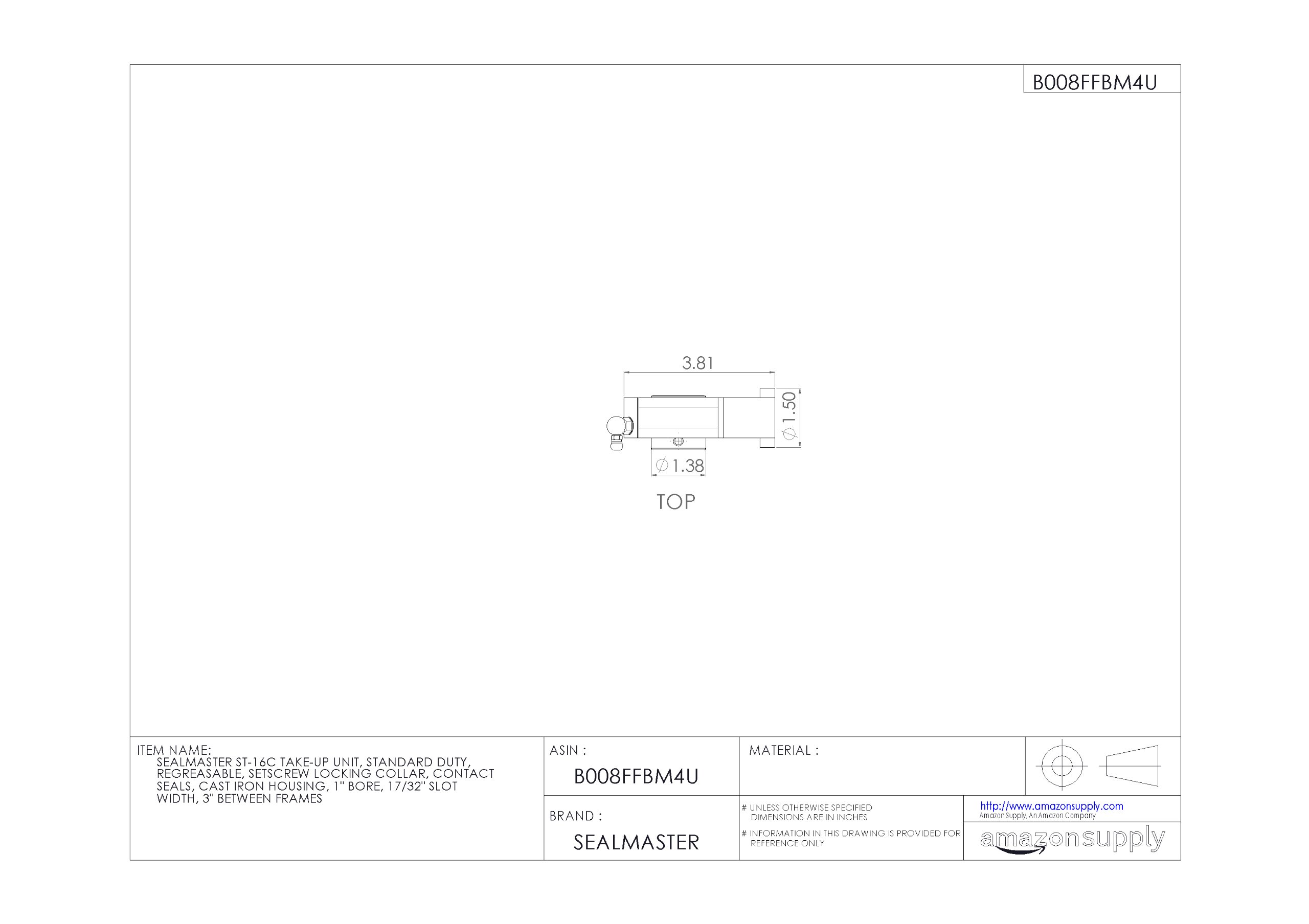

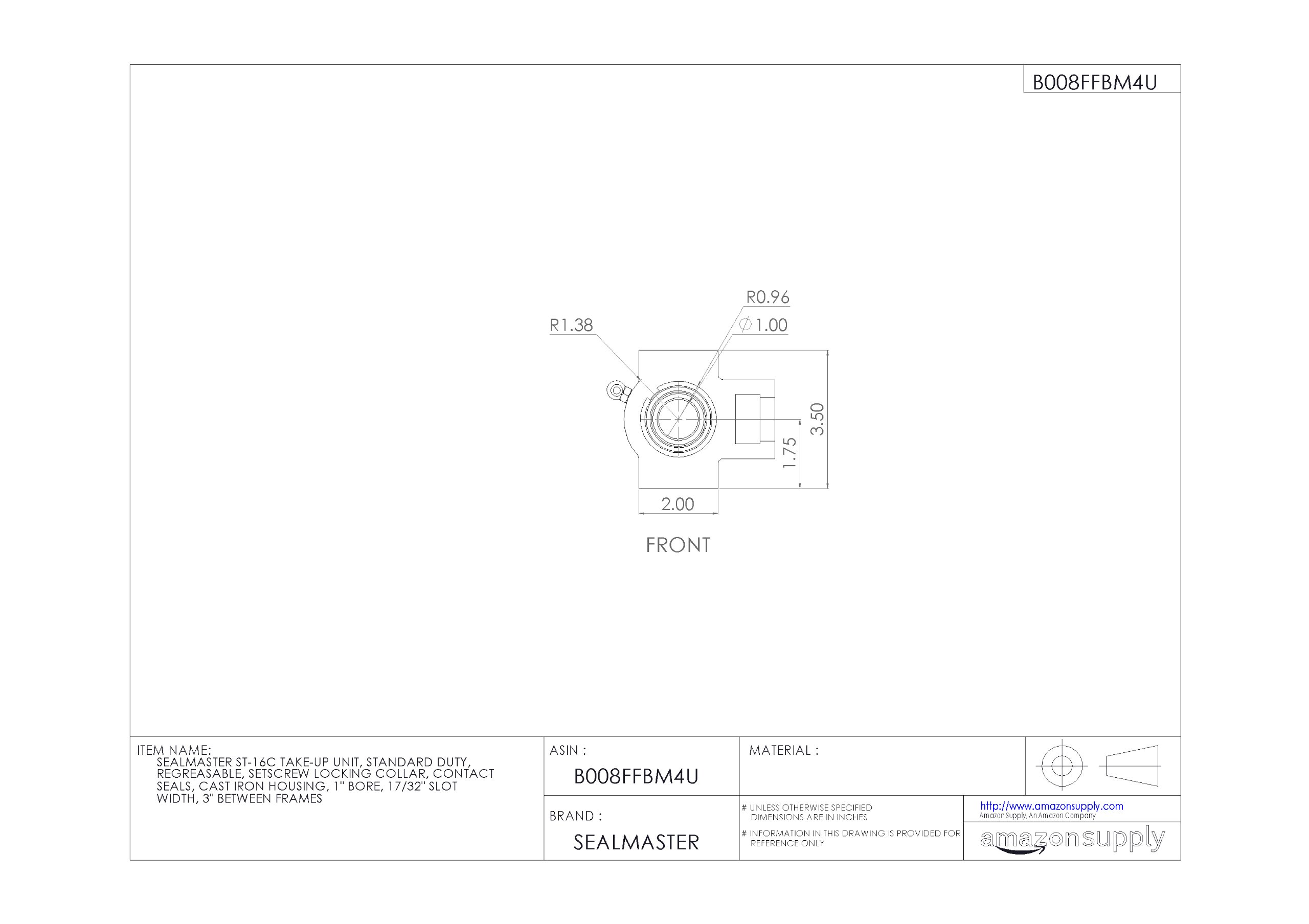

Click for larger image and other views

How can we improve our images or Product Specifications?

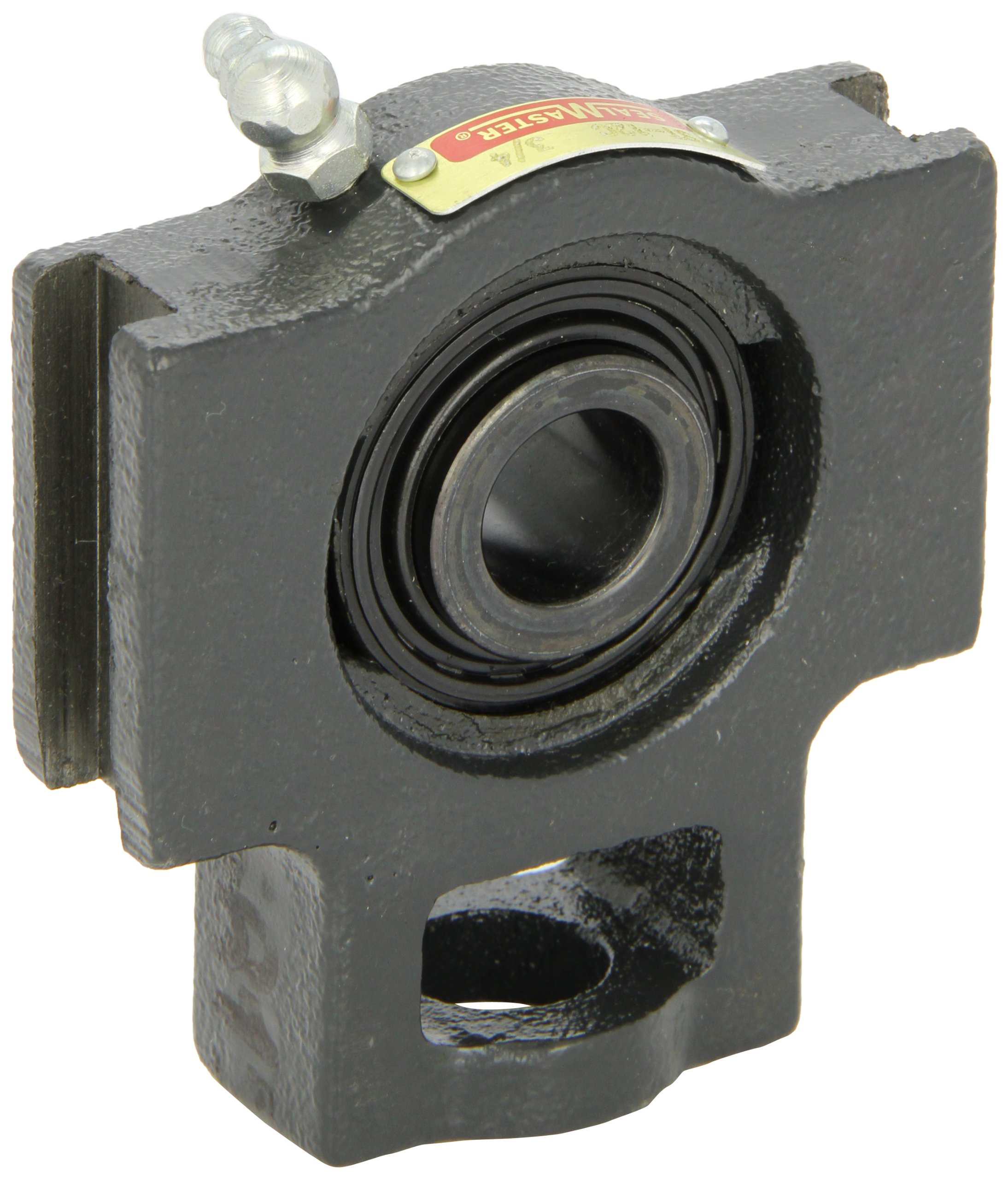

Sealmaster ST-16C Take-Up Unit, Standard Duty, Regreasable, Setscrew Locking Collar, Contact Seals, Cast Iron Housing, 1" Bore, 17/32" Slot Width, 3" Between Frames

Be the first to review this item

ASIN B008FFBM4U

Specifications for this item
Number of Items
1
Bore Diameter
1  inches
Part Number
ST-16C
Item Weight
2 pounds
Thickness
1-3/8  inches
Outside Diameter
17/32  inches
UPC
662461023969
Size Name
3 inches
Brand Name
Sealmaster
Manufacturer Series Number
ST
EAN
0662461023969
UNSPSC Code
31171500

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 1 hr 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Slotted sides in take-up unit for shaft adjustment or belt tightening in conveyor applications
  • High carbon steel rings with protective coating for corrosion resistance
  • Land riding retainer spaces ball bearings for even load distribution and reduced friction, vibration, and noise
  • Setscrew locking collar for secure attachment to shaft
  • Single lip contact seals to protect against contaminants and retain lubrication

Package Details

Shipping Weight: 2.05 pounds
Package Size: 4.6 x 4.6 x 1.8 inches

Product Description

This Sealmaster ST Series take-up unit has a setscrew locking collar and contact seals, and is suitable for use in a take-up frame to adjust guided shaft position, such as in adjusting belt tension for a conveyor. The one-piece cast iron take-up unit housing has slotted sides that fit into a take-up frame to allow movement within the frame. This bearing insert is made from ASTM International 52100 high carbon steel and its rings are coated with black oxide for corrosion resistance. The bearing insert has a heat treated inner race for wear resistance and an outer race with a brass land riding retainer that spaces the ball bearings for even load distribution and prevents contact to reduce friction, vibration, and noise. A collar extends from the bearing inner ring and setscrews lock the collar and bearing onto the shaft. This regreasable non-expansion-type bearing allows self-realignment and compensates for static and dynamic alignment errors, has an operating temperature range of -20 to 220 degrees F, and has single lip contact seals to retain lubricant and protect against contamination that would shorten the bearing life. This take-up unit is suitable for use in material handling applications, such as in belt conveyors.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Sealmaster manufactures bearings and bearing accessories. The company, founded in 1938 and headquartered in Elsmere, KY, meets International Organization for Standardization (ISO) standard 9001.
