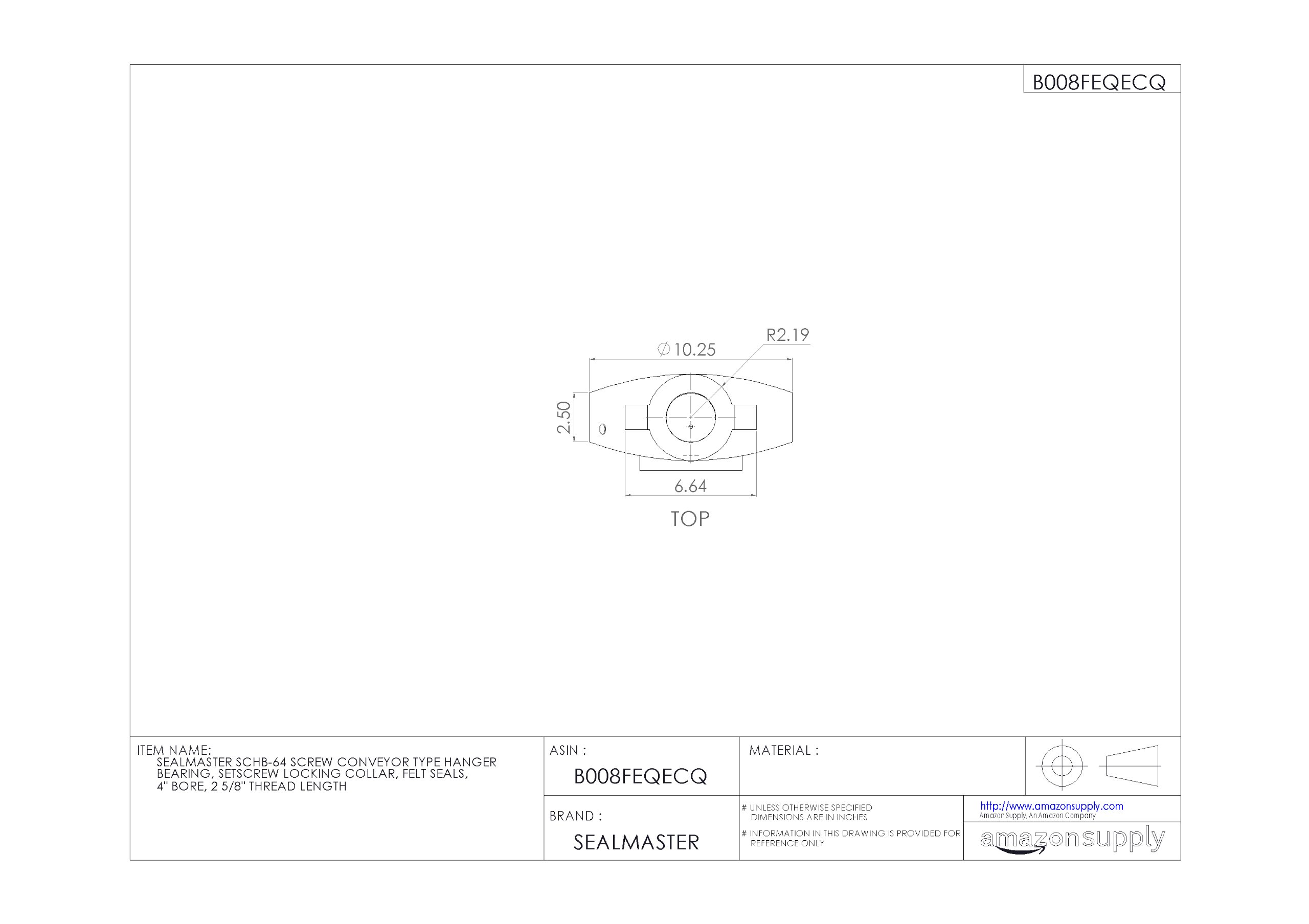

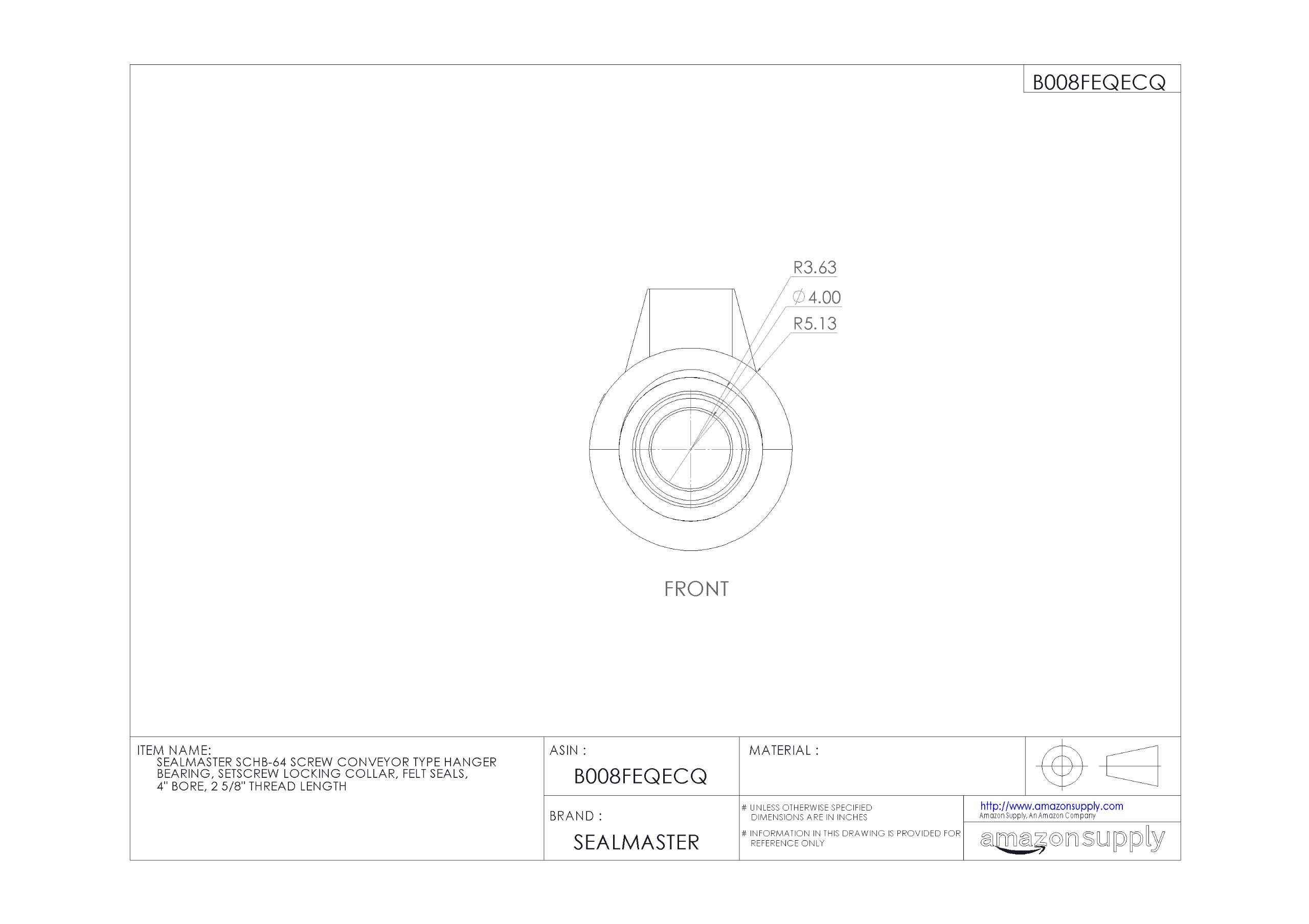

Sealmaster SCHB-64 Screw Conveyor Type Hanger Bearing, Setscrew Locking Collar, Felt Seals, 4" Bore, 2 5/8" Thread Length

Be the first to review this item

ASIN B008FEQECQ

Specifications for this item
Number of Items
1
Bore Diameter
4  inches
Part Number
SCHB-64
Item Weight
62 pounds
UPC
662461002964
Thickness
4-5/8  inches
Brand Name
Sealmaster
Manufacturer Series Number
SCHB
EAN
0662461002964
UNSPSC Code
31171513
Thread Length
2 5/8  inches

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Straight pipe thread tapped ductile iron housing for a ready to mount installation
  • Self-aligning ball bearing insert for shaft misalignment adjustment
  • Lubrication fitting inside threaded shank for remote lubrication through the pipe
  • Setscrew locking collar for secure attachment to shaft
  • Felt and flinger seals to protect against contaminants and retain lubrication

Product Description

This Sealmaster SCHB Series hanger bearing has a setscrew locking collar and felt seals, and is suitable for providing adjustable suspension for linkage ends in screw conveyor applications, such as in grain transfer. The one-piece housing is made of ductile iron for maximum strength and rigidity, is tapped for straight pipe thread, and contains a fitting inside the threaded shank for remote lubrication through the pipe. The bearing insert has a wide outer race with a land riding retainer that spaces the ball bearings for even load distribution and prevents contact to reduce friction, vibration, and noise. A collar extends from the bearing inner ring and setscrews lock the collar and bearing onto the shaft. This non-expansion-type bearing allows self-realignment and compensates for static and dynamic alignment errors, has an operating temperature range of -20 to 220 degrees F, and has felt and flinger seals to retain lubricant and protect against contamination that would shorten the bearing life. This hanger bearing is suitable for use in screw conveyor applications, such as conveying slurries, grains, and chemicals.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Sealmaster manufactures bearings and bearing accessories. The company, founded in 1938 and headquartered in Elsmere, KY, meets International Organization for Standardization (ISO) standard 9001.
