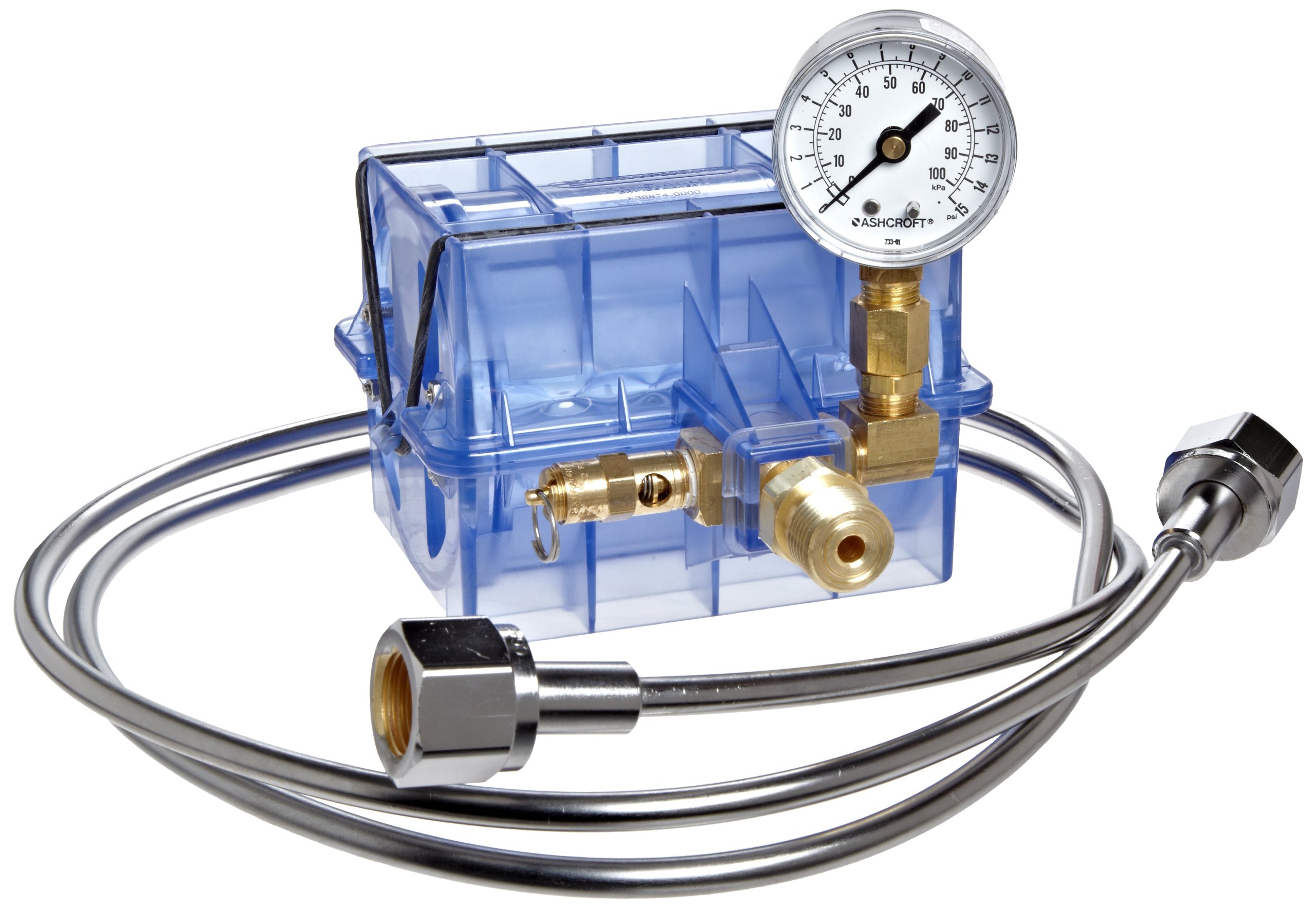

Bel-Art Scienceware® 388740000 Frigimat® Cub Dry Ice Maker

Be the first to review this item

ASIN B0013J1UTM

Specifications for this item
Number of Items
1
Material Type
Polycarbonate (PC)
Catalog Number
BRT-388740000
Part Number
388740000
Brand Name
Scienceware
Price:
$252.08
Quantity:

In Stock (62)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 1 hr 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Attach to a liquid CO2 cylinder equipped with a dip tube to produce a ready-to-use 250 to 350 gram block of dry ice in only a few minutes; each 50lb. cylinder makes from 10-16 blocks of dry ice

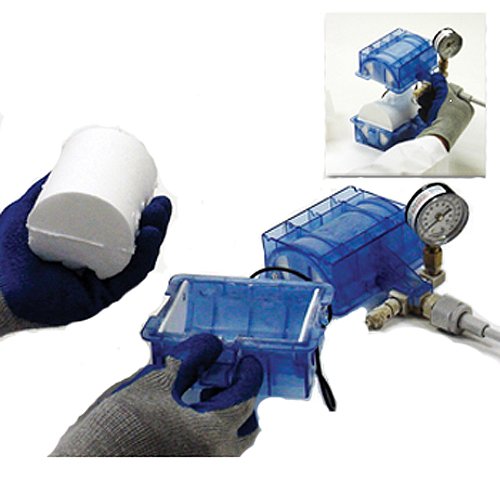

  • Dry ice production can be viewed through the transparent polycarbonate body that secures without clamps, screws or tools ensuring easy removal of the solid block of dry ice and disconnection from the CO2 cylinder
  • Lightweight body is never as cold as the dry ice, even when filled; allows safe transport of the unit and contents when wearing appropriate gloves
  • Rugged nickel-plated "pigtail" connects it to the CO2 cylinder valve which is used to regulate gas flow
  • Includes a 1.8m (6ft) nickel-plated copper connecting tube with standard CGA 320 thread coupling for easy attachment to a LCO2 cylinder

Package Details

Shipping Weight: 4.3 pounds
Package Size: 12 x 10 x 6.5 inches

Product Description

The Bel-Art Frigimat Cub portable dry ice maker, model number 388740000 by Scienceware, is an on-demand unit, and has a transparent polycarbonate body to view ice production. Dry ice is used to keep a substance or object cool for food handling and shipping, science, and medical applications, and is used to create a fog-type of atmosphere in the entertainment industry.

This unit is lightweight and compact, for ease of setup and transportation. Even when filled, the unit is not as cold as the dry ice. Use of cryogenic gloves for protection (sold separately) allows for safe transport of the ice maker. A nickel-plated pigtail connects the ice maker to the CO2 cylinder valve to regulate gas flow. It operates at very low pressure, which is displayed on the built-in dial gauge, and the unit incorporates multiple pressure relief safeguards. Within three to five minutes, this dry ice maker can produce one ready-to-use 250 to 350 gram block of dry ice. A 50-lb. cylinder of liquid carbon dioxide [(LCO2) sold separately, locally] equipped with a dip tube can make from ten to sixteen blocks of dry ice. The dry ice maker body secures without the use of clamps, screws, or tools for ease of solid block dry ice removal and disconnection from the LCO2 cylinder.

The unit includes a 1.8-meter (6-foot), nickel-plated copper connecting tube with standard CGA 320 thread coupling for attachment to a LCO2 cylinder. It is a U.S. model (unmarked nut) for direct connection to an LCO2 tank. Threads on the LCO2 tank (supplied by tank manufacturer) must match the U.S. model. The ice maker’s dimensions are 7.625 (l) x 6.5 (h) x 5.65 (w) inches, and it weighs 3.8 lbs., with valve attachment. Dry ice temperature is -109.3 degrees F (-78.5 degrees C).

Dry ice, the solid form of carbon dioxide (CO2), is commonly used as a cooling agent when temperatures lower than conventional ice are desired, and liquid melt-water is not desired. Dry ice is made by compressing and cooling the gas form of CO2 until it liquefies. With expansion, the liquid changes into a solid state, and is then hydraulically compressed into dry ice blocks, pellets, or slices. Rather than melting, dry ice sublimates, turning back into gas, as the temperature rises. Under specific conditions, dry ice can create a fog-like effect. It is much heavier than frozen H2O, and can be handled using insulated cryogenic gloves for thermal protection. Dry ice is used in laboratory and field applications in the fire-fighting, food handling and shipping, medical, science, education, industrial cleaning, and entertainment industries.

Since 1946, Bel-Art has been manufacturing and distributing scientific equipment such as lab ware, dry ice makers, desiccators, glassware, testing equipment, and safety supplies for the scientific and medical industries. With worldwide distribution, and facilities located in New Jersey, Maryland and Missouri, most Bel-Art products are manufactured in the USA. Bel-Art is the recipient of numerous awards, including the Presidential “E” Award by the US Department of Commerce for excellence in export sales.

What’s in the Box?

  • Dry ice maker
  • Connecting tube
