Schumacher SE-1-12S-CA Fully Automatic Onboard Battery Charger - 1.5 Amps

Be the first to review this item

ASIN B0000AXTUY

Specifications for this item
Color Name
Black
Part Number
SE-1-12S-CA
UPC
026666705011
Item Weight
0.25 pounds
Brand Name
Schumacher
EAN
0026666705011
UNSPSC Code
26111704
Warranty
2 year limited warranty

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 22 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 1.5-amp charger
  • Has reverse polarity protection
  • Molded with plastic weather proof case
  • Plugs into an electrical wall outlet
  • Can install next to the battery on automobiles, boats, tractors, golf carts, and other equipment

Package Details

Shipping Weight: 0.8 pounds
Package Size: 8 x 5.9 x 2 inches

Product Description

This fully automatic onboard battery charger is a 1.5-amp charger which plugs onto an electrical wall outlet. This unit charges 6- and 12-volt batteries, and keeps larger batteries warm even under cold temperatures. This plug-in trickle charger has reverse polarity protection and can install next to the battery on automobiles, boats, tractors, golf carts, and other equipment. Appropriate hardware and mounting brackets are included with this battery charger.

Amazon.com

The Schumacher SE-1-12S-CA Fully Automatic 1.5-amp Onboard Battery Charger is an AC powered automatic trickle charger / maintainer for use with 6- and 12-volt lead-acid batteries. The unit features an automatic charge cycling process that allows charging to turn on and off automatically as is necessary, and its "onboard" design and included hardware makes for easy, convenient mounting adjacent to batteries both inside and away from vehicles. Additional features include: 1.5-amp trickle charge rate, an LED charge indicator, reverse-hookup protection, auto-voltage detection, molded plastic case and short leads for safety. This unit is also energy efficient.

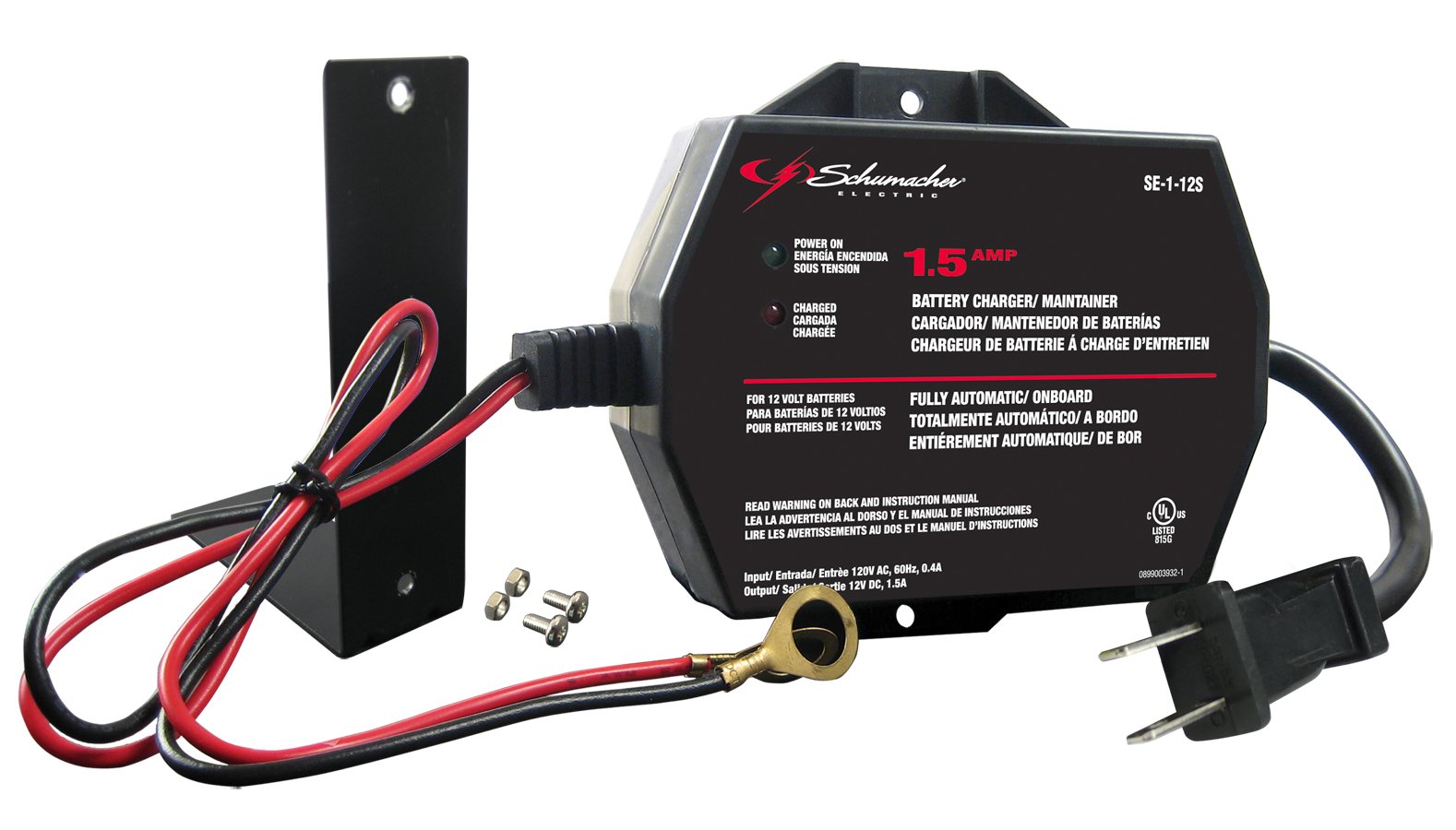

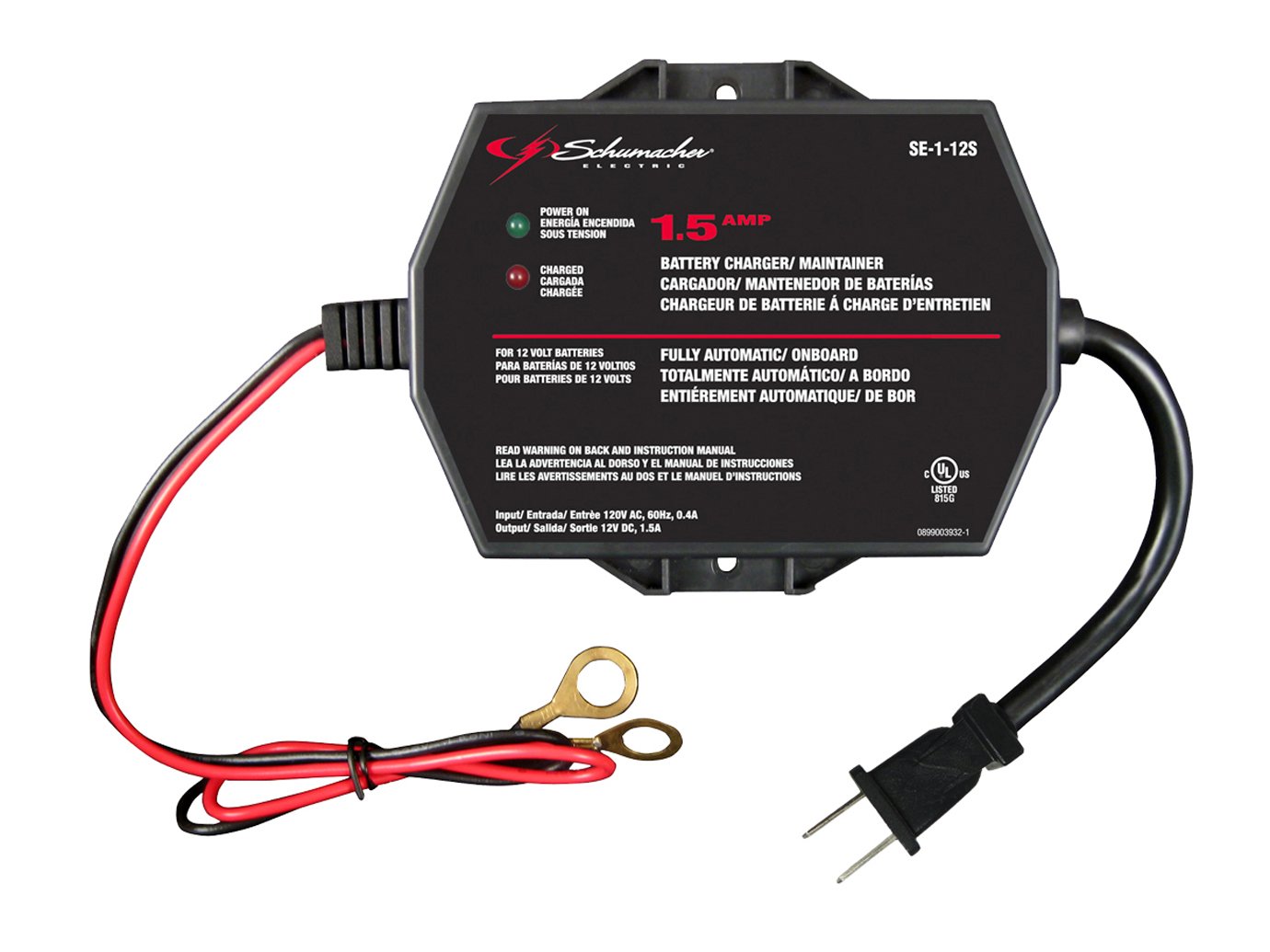

The Schumacher SE-1-12S Fully Automatic Onboard Battery Charger - 1.5 Amps
Dedicated, automatic 6- and 12-volt battery charging for batteries of vehicles in storage.
View larger.

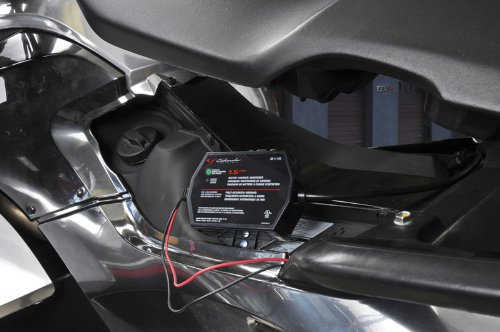

The Schumacher SE-1-12S Fully Automatic Onboard Battery Charger in use
Compact size and onboard design allows for multiple mounting options.
View larger.

Mountable Automatic 6- and 12-Volt Battery Charging

Designed to allow for safe charging of batteries used with RV, street rods, classic cars, motorcycles and snowmobiles, as well as deep-cycle or most other commonly used lead-acid batteries, the Schumacher SE-1-12S-CA Fully Automatic Onboard Battery Charger is a convenient accessory suitable for use with most any vehicle that experiences long storage periods between uses, or requires improved battery performance during cold weather. Light, rugged and compact, its low-profile "onboard" outer design and included mounting hardware allow for easy mounting close to, if not directly on your battery's outer housing. This makes it perfect for use as a dedicated trickle charger, although it can also to mounted away from your vehicle in the case of dedicated, stand-alone charge stations for batteries. Once mounted, with the permanent ring terminal connections made and the AC power cord properly connected to a grounded 120-volt outlet*, the SE-1-12S-CA automatically switches between charge mode and maintain mode as necessary. The charger contains an easy-to-read LED indicators related to battery connection and charge state, and an electronic control circuit which safeguards against overcharging the battery ensuring that your stored battery is safely kept at proper levels and will be ready when you need it.

Additional features include: reverse hook-up protection that keeps power from flowing unless a proper connection exists; a 1.5-amp trickle charge rate; intentionally short battery leads and AC power cord that won't get tangled in moving engine parts; and a rugged molded plastic outer case.

Specifications

  • Charger Type - Fully Automatic Controlled
  • Output Voltage - 12 VDC
  • Input Voltage - 120 VAC
  • Output Current Cont: 1.5A
  • Input Current Cont: 0.4A
  • Dimensions - 1.57" H x 4.64" W x 5.03" D
  • Product Weight - 0.93 lbs.

What's in the Box

  • Schumacher SE-1-12S-CA Fully Automatic Onboard Battery Charger (with attached ring terminal cable assembly)
  • Hardware mounting brackets and screws
  • Users manual and warranty information

Two-Year Limited Warranty

Schumacher Electric Corporation (the "Manufacturer") warrants this battery charger for two (2) years from the date of purchase at retail against defective material or workmanship that may occur under normal use and care. If your unit is not free from defective material or workmanship, Manufacturer's obligation under this warranty is solely to repair or replace your product with a new or reconditioned unit at the option of the Manufacturer. It is the obligation of the purchaser to forward the unit, along with mailing charges prepaid to the Manufacturer or its authorized representatives in order for repair or replacement to occur.

About Schumacher Electric Corporation

Since 1947, Schumacher Electric Corporation has been leading change and driving performance to exceed its customers' expectations. Engineered patent pending technologies and award winning marketing allows Schumacher to be the brand of choice when it comes to portable power and battery charger/jump starter/maintainer/tester needs. Passion and commitment is the Schumacher way which shows as they are official supplier for chargers, jump starters and inverters for NASCAR.

* Not for use with ungrounded 2-pronged outlet adapters; ensure any extension cords used are grounded and are of sufficient AWG size.
