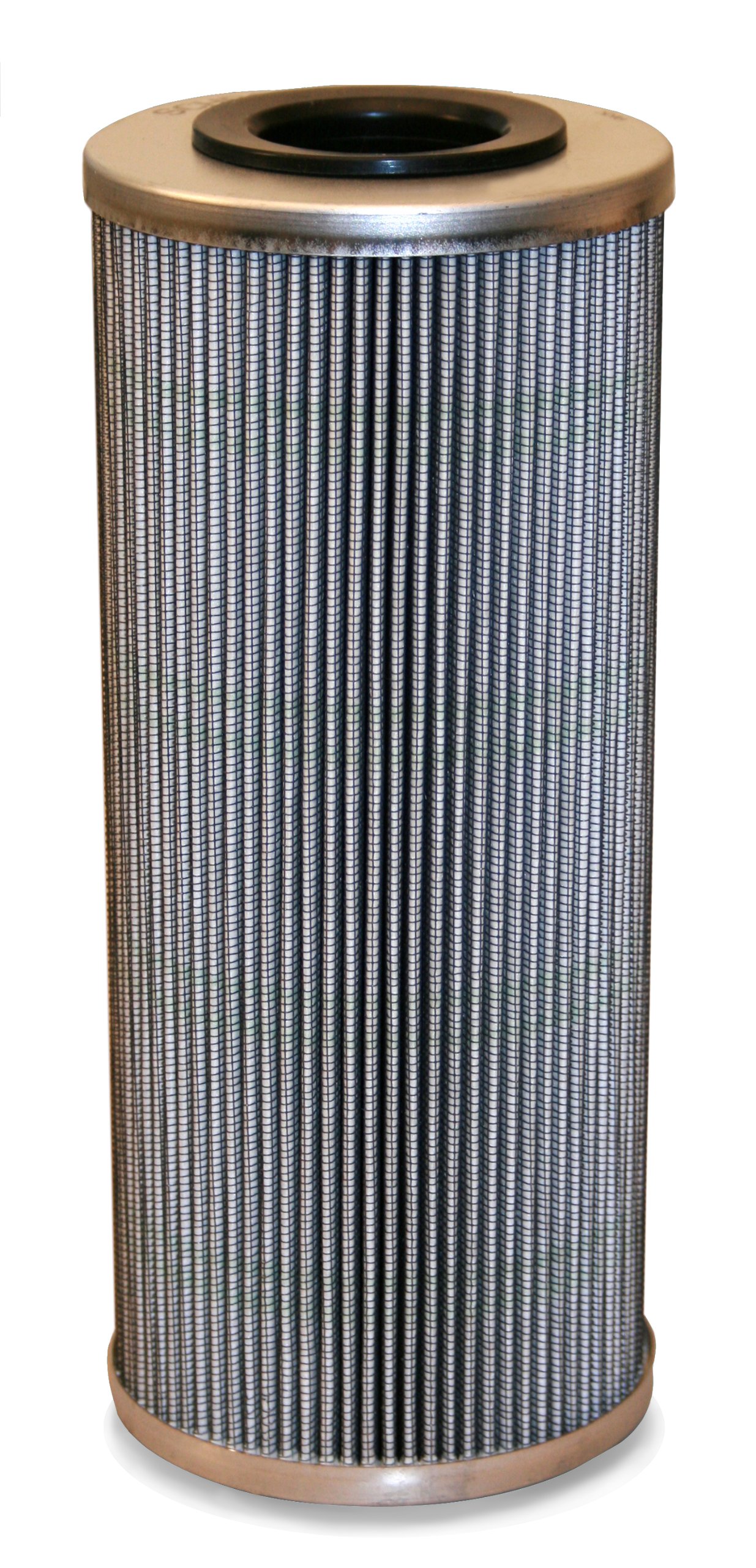

Schroeder KZ5 Hydraulic Filter Cartridge, Z-Media, Micro-Glass, Removes Rust, Metallic Debris, Fibers, Dirt; 9" Height, 3.9" OD, 1.625" ID, 5 Micron
Be the first to review this item
ASIN B005KBLYXG
Specifications for this item
- Brand Name
- Schroeder
- For Use With Product Type
- Rust, Metallic Debris, Fibers, Dirt
- Inside Diameter
- 1.625 inches
- Material Type
- Glass
- Maximum Operating Pressure
- 150 PSI
- Maximum Temperature
- 225 Degrees Fahrenheit
- Number of Items
- 1
- Outside Diameter
- 3.9 inches
- Part Number
- KZ5
- Particle Retention Size
- 5 Micron
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 2 hours 22 minutes and choose One-Day Shipping at checkout.
Key Features
- Better flow characteristics: lower pressure drop and improved flow stability
- Improved efficiency: cleans oil in less time and improved reliability
- Higher dirt holding capacity: Longer element life, lower maintenance costs (labor) and decreased
- Multi-layer construction: each layer performs a distinct function and double layer of Excellement (Z) media
- Beta stability: excellement (Z) media maintains efficiency as differential pressure increases
Package Details
Shipping Weight:
1.85 pounds
Package Size:
9.8 x 4.1 x 4.1 inches
Product Description
The special class of micro-glass and other fibers used in Z media are manufactured with utmost precision, to specific thicknesses and densities, and bonded with select resins to create material with extra fine passages. No other filter media can provide the benefits of Schroeder’s Excellement® Z media: maximum dirt-holding capacity, superior particle capture, excellent beta stability, minimum pressure drop, high flow rate and low operating cost. The typical multiple layer construction has evolved from comprehensive laboratory testing to provide extended element life and system protection. Each successive layer performs a distinct and necessary function. The outermost layer is designed to maintain element integrity. Beyond this layer is a spun bonded scrim, offering coarse filtration and protection for the filtering layers within. Multiple sheets of fine filtering media follow, providing intricate passageways for the entrapment of dirt particles. Together, the various layers of filter media provide the ideal combination for peak filtration performance Schroeder KZ5 Filter Cartridge, Z-Media: Micro-Glass, 9" Cartridge Height, 3.9" Cartridge OD, 1.625" Cartridge ID; 5 Micron (absolute); Removes: Rust, Metallic Debris, Fibers, Dirt.
