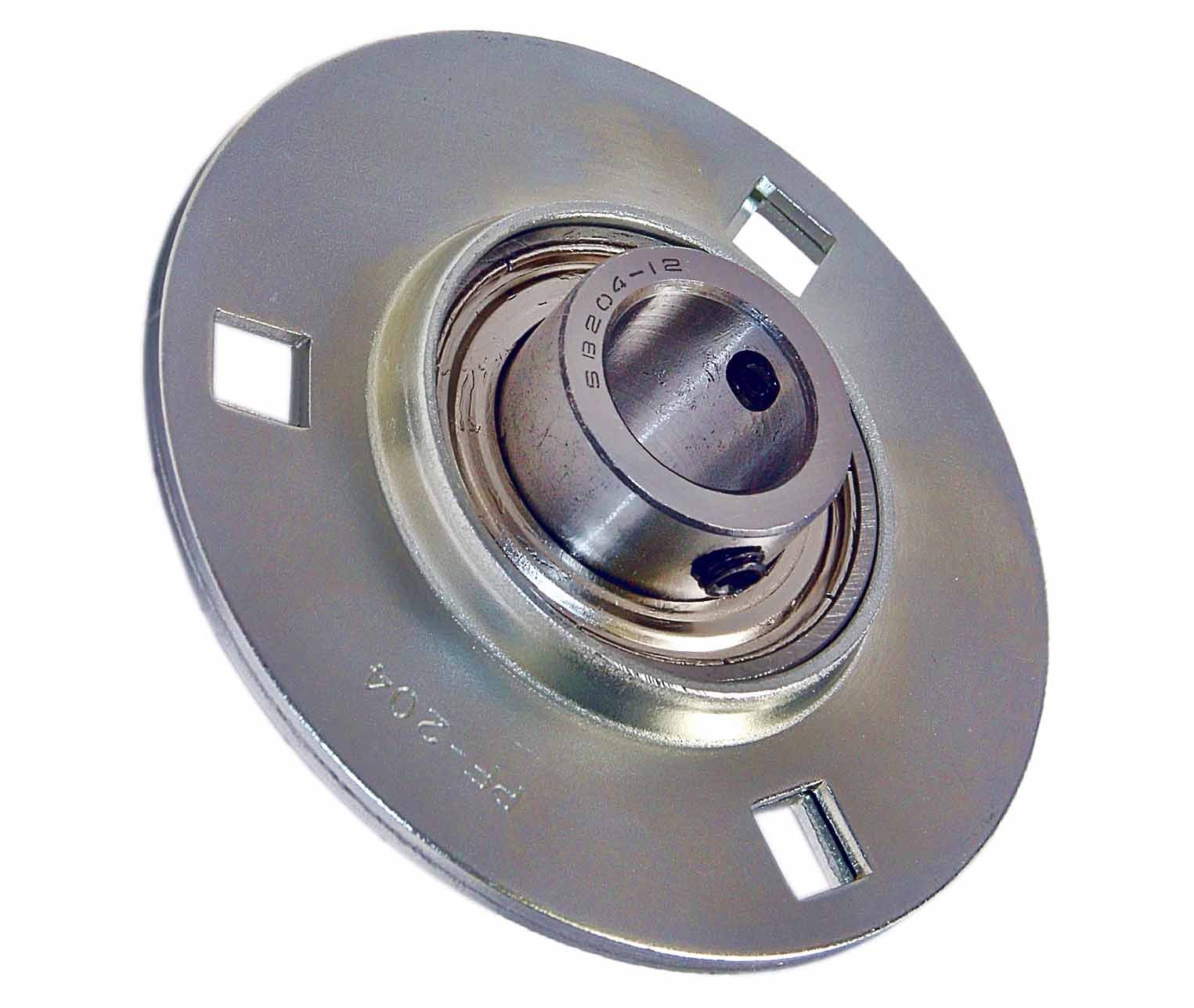

SBPF204-12 Flanged Mounted Bearing, 3 Bolt, 3/4" Inside Diameter, Set screw Lock, Steel, Inch

Be the first to review this item

ASIN B0056JH4H2

Specifications for this item
Number of Items
1
Part Number
Kit12375
Outside Diameter
3/4  inches
Brand Name
VXB

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 19 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Pressed steel PFL204, 3-bolt flanged housing increases the life of the bearing
  • SB204-12 steel bearing for efficient operations at a wide range of speeds
  • Dynamic (radial) load rating of 12.8 kN and static (axial) load rating of 6.65 kN
  • Set screw prevents shaft slippage
  • 3/4" inside diameter fits conventional cylindrical shafts

Package Details

Shipping Weight: 0.65 pounds
Package Size: 3 x 2.4 x 0.8 inches

Product Description

The SBPF204-12 flange mounted bearing has a pressed steel flange housing, three bolt holes, a 3/4" inside diameter, and steel bearings. The bearing has a dynamic (radial) load rating of 12.8 kN and a static (axial) load rating of 6.65 kN. The bearing is secured to the shaft with set screws to prevent slippage and the housing requires three 5/16" mounting bolts (sold separately). These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved and the shaft and mounting surface are perpendicular to each other.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.
