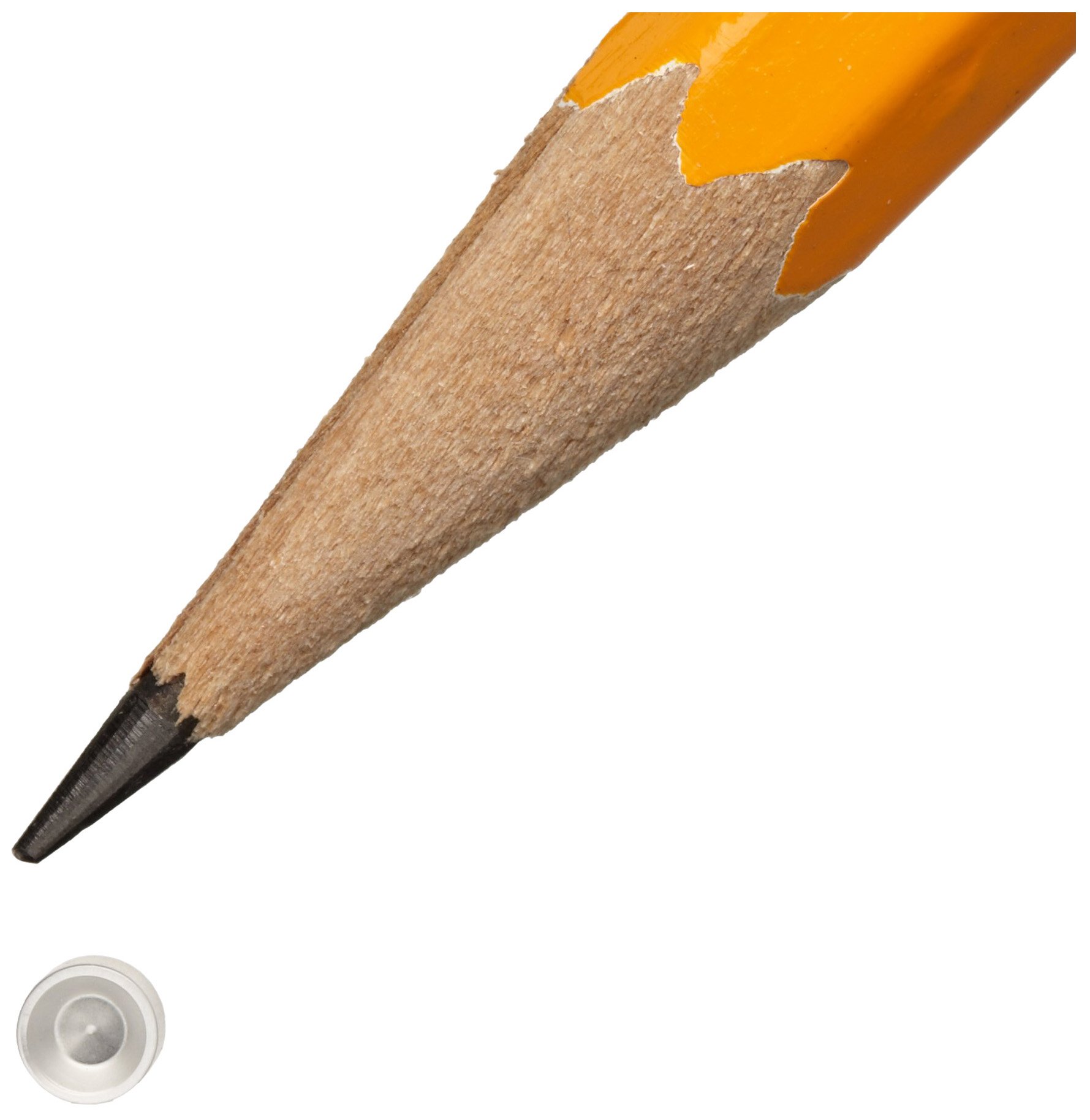

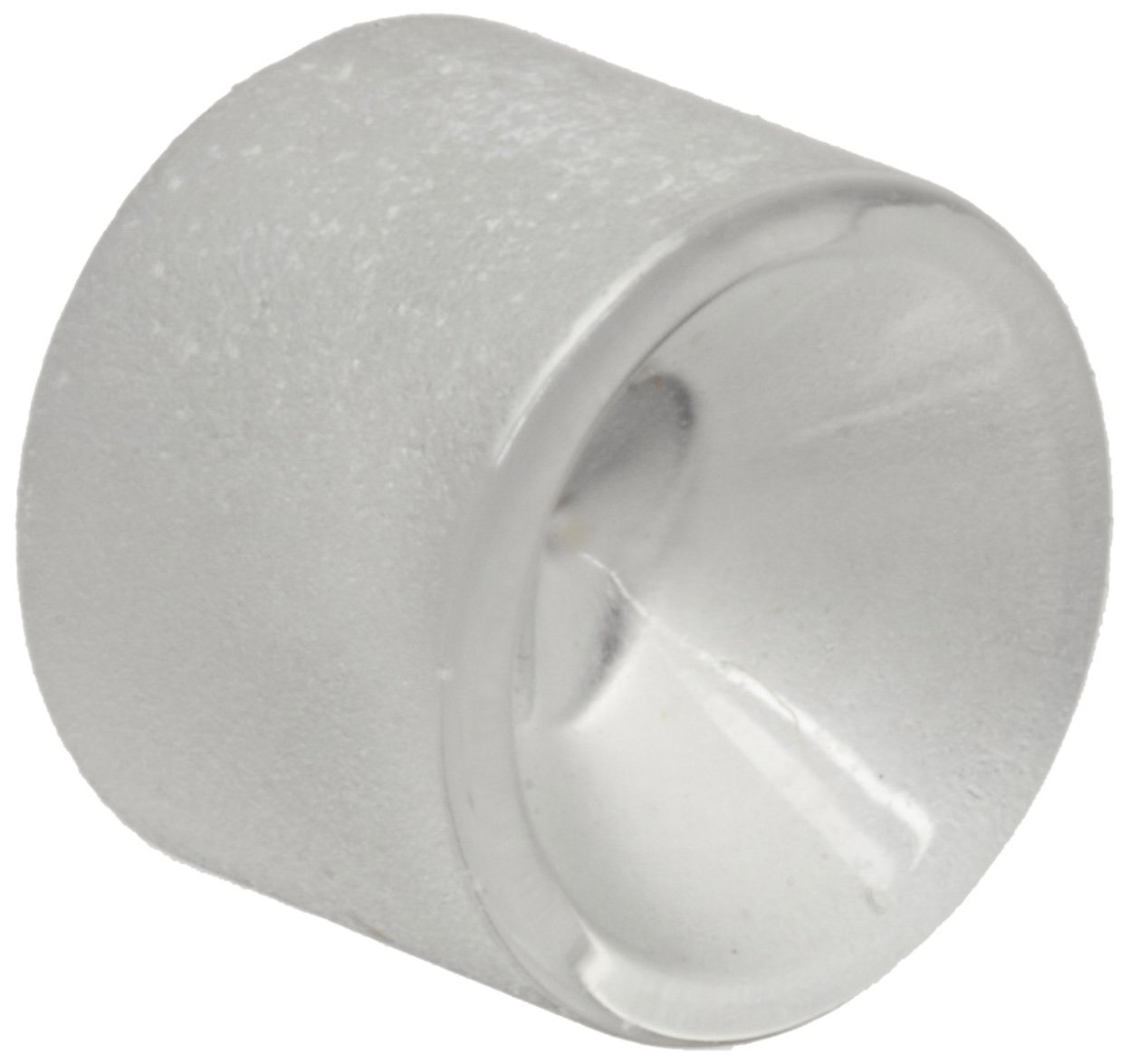

Sapphire Vee Jewel Bearing .0787" / .0791" OD , Angle 85 / 95 Degrees , Thickness .0433" / .0453" , Vee Depth .0250" / .0300" (Pack of 5)

Be the first to review this item

ASIN B0016JDJ5C

Specifications for this item
Number of Items
5
Material Type
Synthetic Sapphire
Part Number
VJ-0787-05
Brand Name
Small Parts
UNSPSC Code
31171549
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 3 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Radius .0080 / .0120
  • Melting Point 3722 Degrees Fahrenheit
  • Specific Gravity 3.98
  • Scratch Hardness 9 Mohs
  • Compressive Strength 300000 psi at 25 deg Celcius

Package Details

Shipping Weight: 0.05 pounds
Package Size: 4 x 3 x 0.1 inches

Product Description

Synthetic sapphires are next to diamonds in hardness which makes these highly polished bearings scratch and shock resistant. They also have a long wear life, and are highly resistant to heat, corrosion and distortion. In addition, sapphire bearings are nonmagnetic, dielectrically strong and provide good shaft end support and freedom of motion. They are especially well suited for use in delicate instruments such as ammeters, voltmeters, compasses and precision indicator devices. The jewel radius should be 2.5 to 3 times the pivot radius. In general, the greater the ratio between jewel and pivot, the greater the sensitivity and pivot roll. The contact area of the pivot should be highly polished and a finish of 2 to 3 micro-inch on the pivot radius is recommended. Small Parts also offers Brass Vee Jewel Assemblies in 80/85 Degrees (VJA-1, VJA-3, and VJA-5) and 85/95 Degrees (VJA-7)and Stainless Steel Vee Jewel Pivots in 50 Degrees (p/n VJPX-1D), 70 Degrees (p/n VJPX-2D) and 53 Degrees (p/n VJPX-7D)
