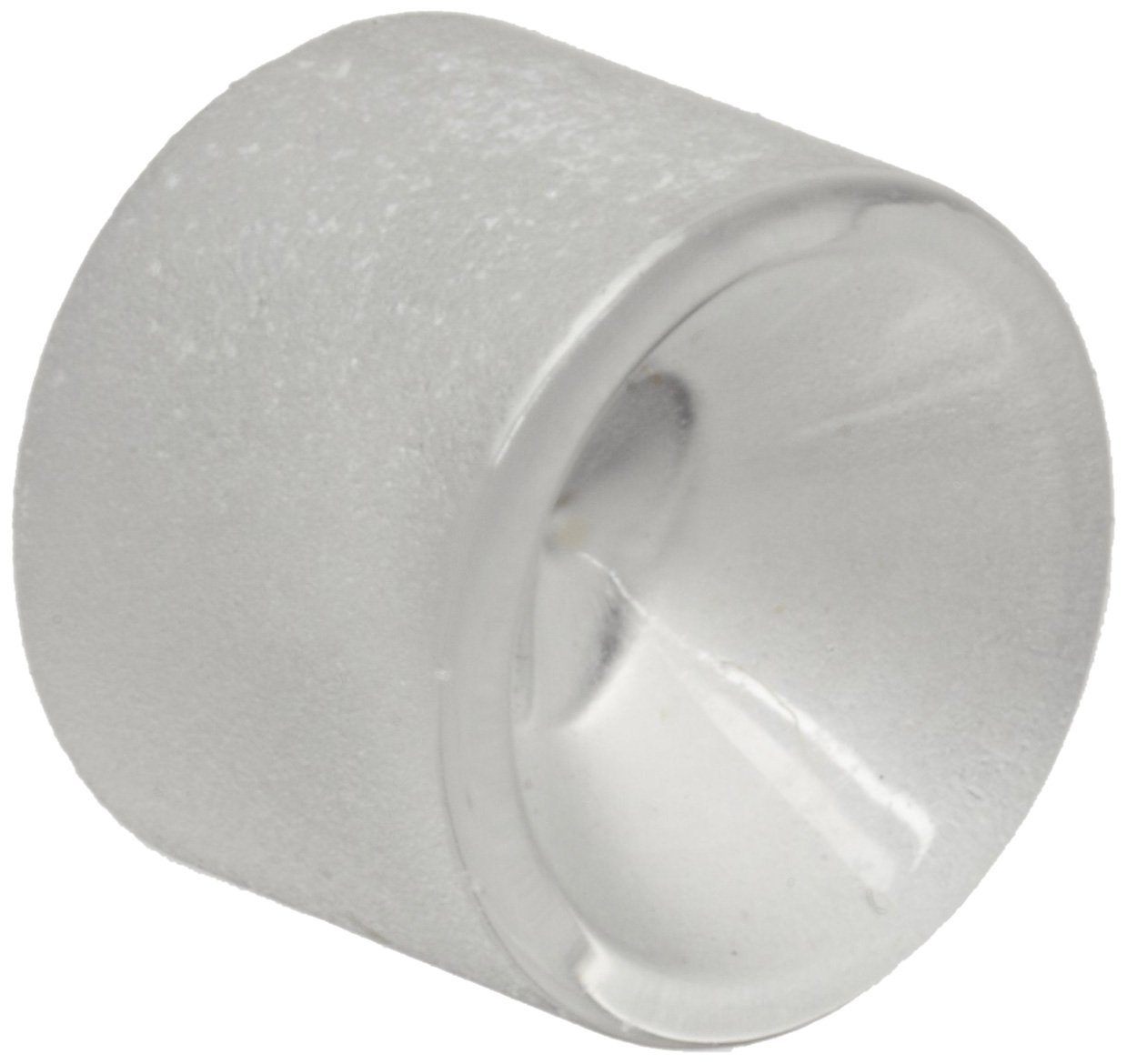

Sapphire Vee Jewel Bearing .1244" / .1256" OD , Angle 90 / 95 Degrees , Thickness .0880" / .0930" , Vee Depth .0450" / .0550"
Be the first to review this item
ASIN B0016JBB8E
Specifications for this item
- Brand Name
- Small Parts
- Material Type
- Synthetic Sapphire
- Mfr Part #
- VJ-1244-01
- Number of Items
- 1
- System of Measurement
- Inch
In Stock (14)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 29? Order in-stock items in the next 10 hours 32 minutes and choose One-Day Shipping at checkout.
Key Features
- Radius .0059 / .0099
- Melting Point 3722 Degrees Fahrenheit
- Specific Gravity 3.98
- Scratch Hardness 9 Mohs
- Compressive Strength 300000 psi at 25 deg Celcius
Package Details
Shipping Weight: 0.05 pounds
Product Description
Synthetic sapphires are next to diamonds in hardness which makes these highly polished bearings scratch and shock resistant. They also have a long wear life, and are highly resistant to heat, corrosion and distortion. In addition, sapphire bearings are nonmagnetic, dielectrically strong and provide good shaft end support and freedom of motion. They are especially well suited for use in delicate instruments such as ammeters, voltmeters, compasses and precision indicator devices. The jewel radius should be 2.5 to 3 times the pivot radius. In general, the greater the ratio between jewel and pivot, the greater the sensitivity and pivot roll. The contact area of the pivot should be highly polished and a finish of 2 to 3 micro-inch on the pivot radius is recommended. Small Parts also offers Brass Vee Jewel Assemblies in 80/85 Degrees (VJA-1, VJA-3, and VJA-5) and 85/95 Degrees (VJA-7)and Stainless Steel Vee Jewel Pivots in 50 Degrees (p/n VJPX-1D), 70 Degrees (p/n VJPX-2D) and 53 Degrees (p/n VJPX-7D)
