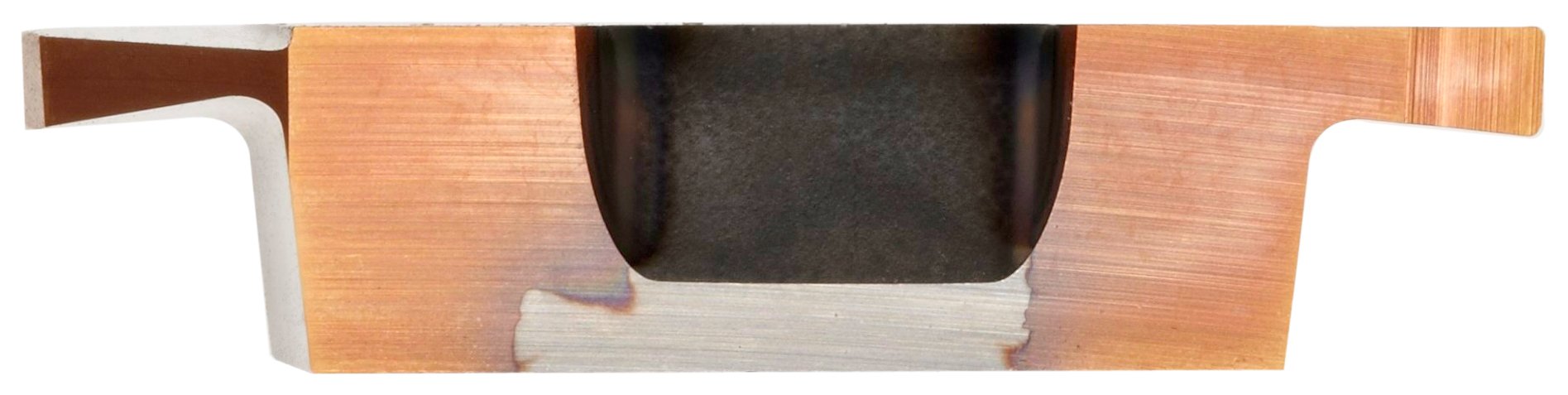

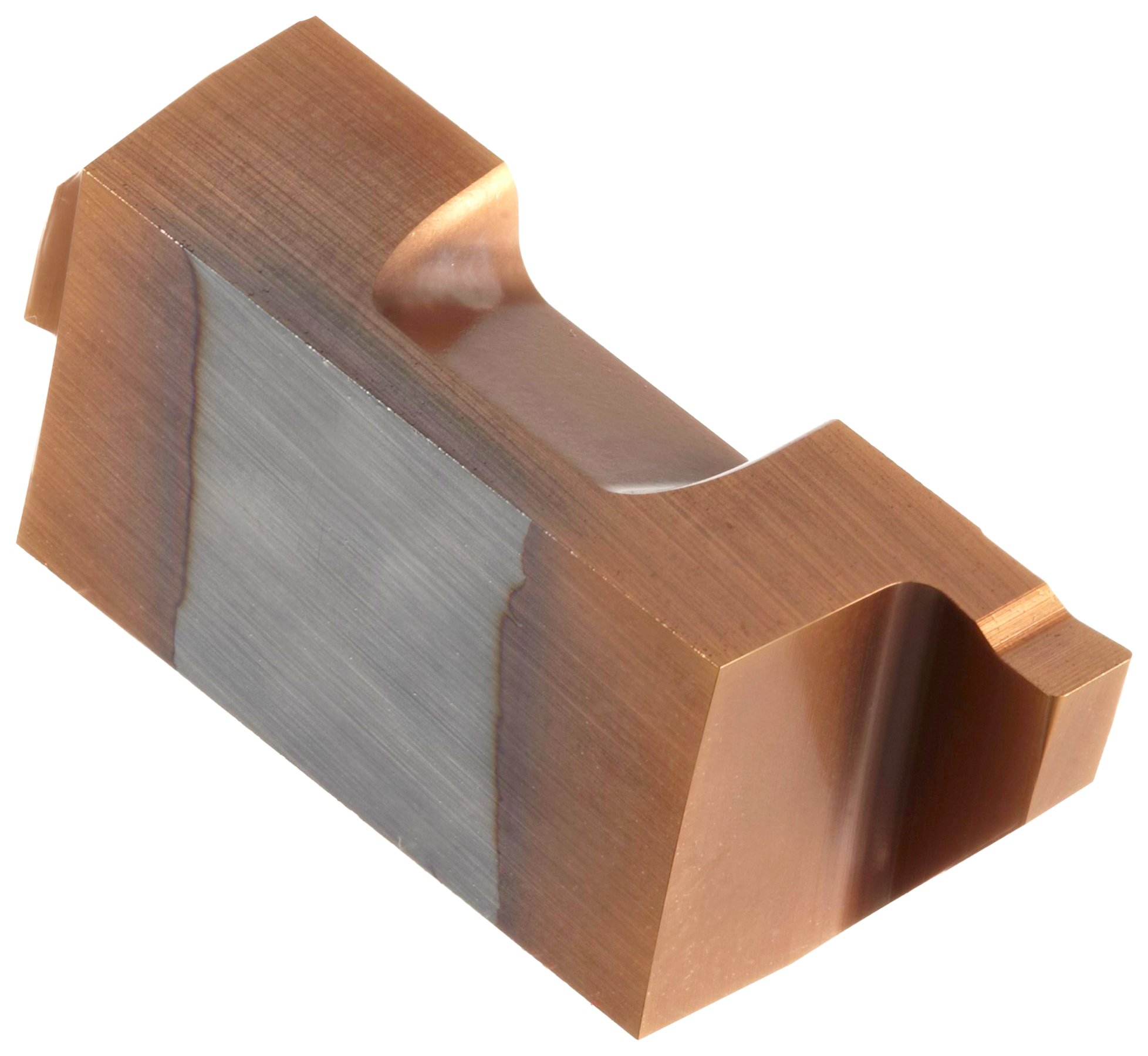

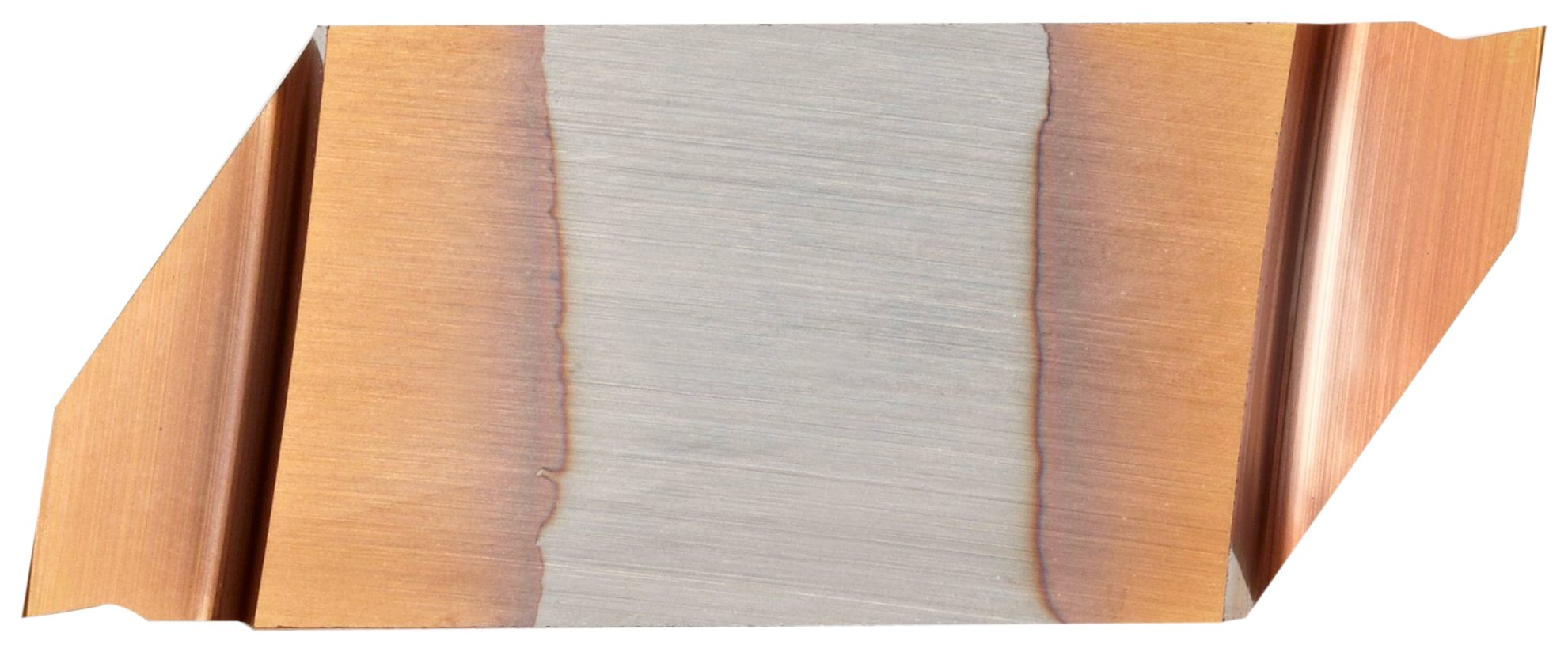

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sandvik Coromant Top Lok Carbide Grooving Insert, Positive Rake, Right Hand, Neutral Cut, GC1125 Grade, Multi-Layer Coating, 1 Edges

Be the first to review this item

Product Specifications
Cutting Direction
Neutral
Finish Types
Multi-Layer
Material Type
Carbide
Brand Name
Sandvik Coromant
Manufacturer Series Number
Top Lok
Number of Cutting Edges
1
Manufacturer Grade
GC1125
Style Name
TLGP
UNSPSC Code
31162802
Hand Orientation
Right Hand

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 25 Next 5 »
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-20 of 25 Next 5 »
TLGP-2031R B004AP96ZQ Temporarily out of stock. Order now and we'll deliver when available. $252.00 Buy Options
TLGP-2041R B004AP96Z6 Usually ships in 4 to 7 weeks $252.00 Buy Options
TLGP-2058R B004AP96OW Temporarily out of stock. Order now and we'll deliver when available. $252.00 Buy Options
TLGP-2062R B004AP98EA Temporarily out of stock. Order now and we'll deliver when available. $252.00 Buy Options
TLGP-2094R B004AP98CW Usually ships in 4 to 7 weeks $252.00 Buy Options
TLGP-2125R B004AP96OC Usually ships in 4 to 7 weeks $251.00 Buy Options
TLGP-3047R B004AP98CM Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3062R B004AP98CC yes $303.00 Buy Options
TLGP-3072R B004AP98C2 Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3078R B004C040C8 Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3088R B004AP98BS yes $303.00 Buy Options
TLGP-3094R B004AP98AY yes $303.00 Buy Options
TLGP-3097R B004AP99UI Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3105R B004AP96O2 Temporarily out of stock. Order now and we'll deliver when available. $266.21 Buy Options
TLGP-3110R B004AP96NS Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3122R B004AP96NI Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3125R B004AP98AO yes $303.00 Buy Options
TLGP-3142R B004AP96N8 Temporarily out of stock. Order now and we'll deliver when available. $266.21 Buy Options
TLGP-3156R B004AP989U Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options
TLGP-3178R B006K5KAKO Temporarily out of stock. Order now and we'll deliver when available. $303.00 Buy Options

Key Features

  • Used with the Sandvik Coromant Top-Lok system for internal and external grooving operations on all materials
  • GC1125 grade is a physical vapor deposition (PVD) coating of titanium aluminum nitride (TiAlN) and chromium oxide (Cr2O3) over carbide that provides a balance of resistance to shock and wear in average machining conditions
  • TLGP chipbreaker has a positive rake for low feeds
  • For use with Top-Lok toolholders for secure clamping
  • One cutting edge and right-hand neutral cutting angle

Product Description

This Sandvik Coromant Top-Lok grooving insert is carbide GC1125 grade and has one cutting edge, a right-hand neutral cutting angle, and a positive-rake TLGP chipbreaker for internal and external grooving operations on all materials at low feeds. GC1125 grade is carbide with a coating of titanium aluminum nitride (TiAlN) and chromium oxide (Cr2O3) applied through physical vapor deposition (PVD) that provides a balance of hardness and toughness for resistance to shock and wear in average machining conditions. A PVD coating maintains a sharper cutting edge than a chemical vapor deposition (CVD) coating.

This right-hand, single-edged insert has a TLGP chipbreaker, which has a positive rake for evacuating chips during internal and external grooving operations at low feed rates. It is used with Sandvik Coromant Top-Lok toolholders, which lock the insert against both the back and side of the insert pocket for secure clamping. Tolerance of the cutting width of the insert is + or - 0.001".

Grooving inserts are coded according to their specific cutting and application capability (e.g., N123M1-0900-0008-GM). Each section of the code represents details of the insert: hand, compatible toolholder series, seat size, number of edges, insert width, lead angle, corner radius, and chipbreaker. Generally, as the insert size becomes larger, the maximum cutting depth increases. Cutting depth influences the material removal rate, the number of cuts, and chip evacuation efficiency when using the insert. Indexable inserts are small cutting tools designed to remove material in external and internal cutting applications such as turning, milling, drilling, parting, and grooving. They are held by an insert holder and usually have multiple cutting edges that can be rotated when one edge wears down. Multiple inserts can accomplish a variety of cuts in one operation.

Sandvik Coromant produces tools for turning, milling, and drilling. Headquartered in Sweden, the company manufactures tools used throughout the metalworking field, including the automotive and aerospace, die and mold, and general engineering industries.

Matching Inserts to Holders

These inserts are used with the Sandvik Coromant Top-Lok, an indexable holding system for grooving and parting. The Top-Lok design of the toolholder provides secure clamping.
