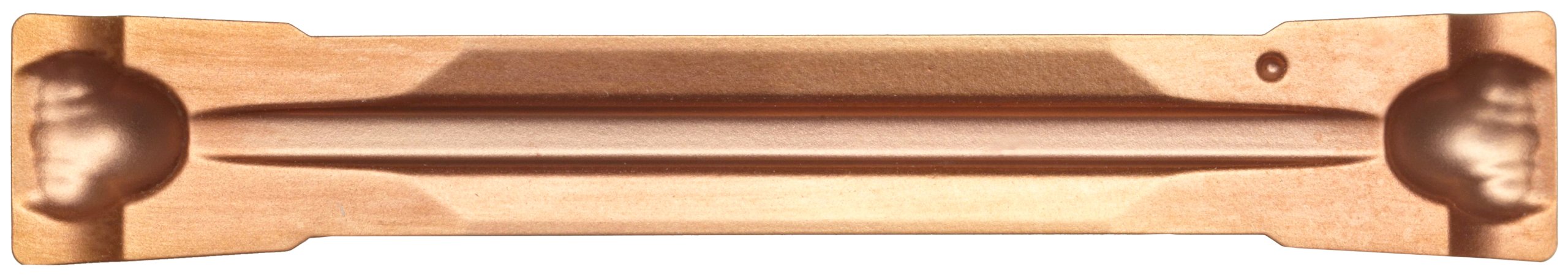

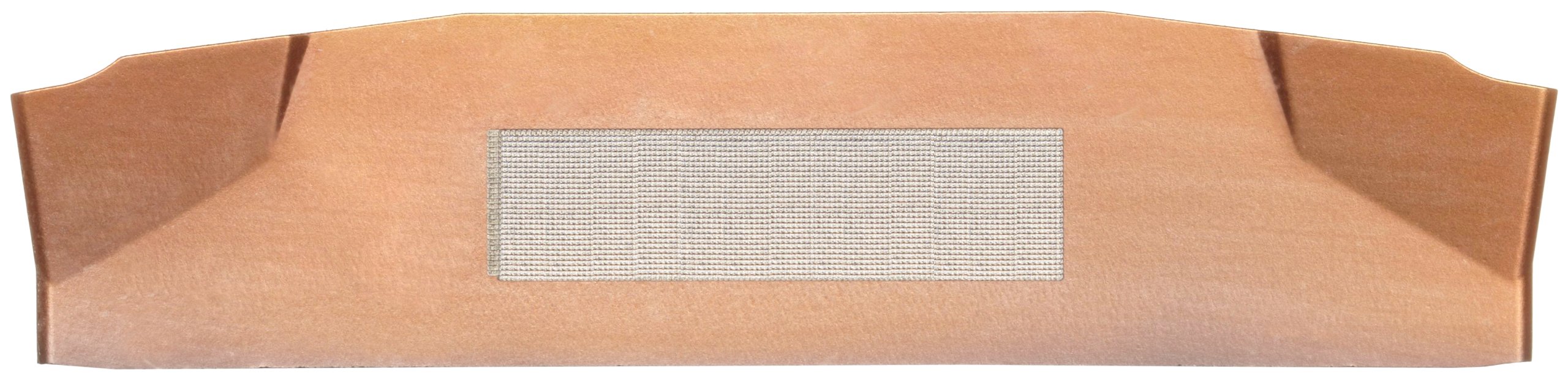

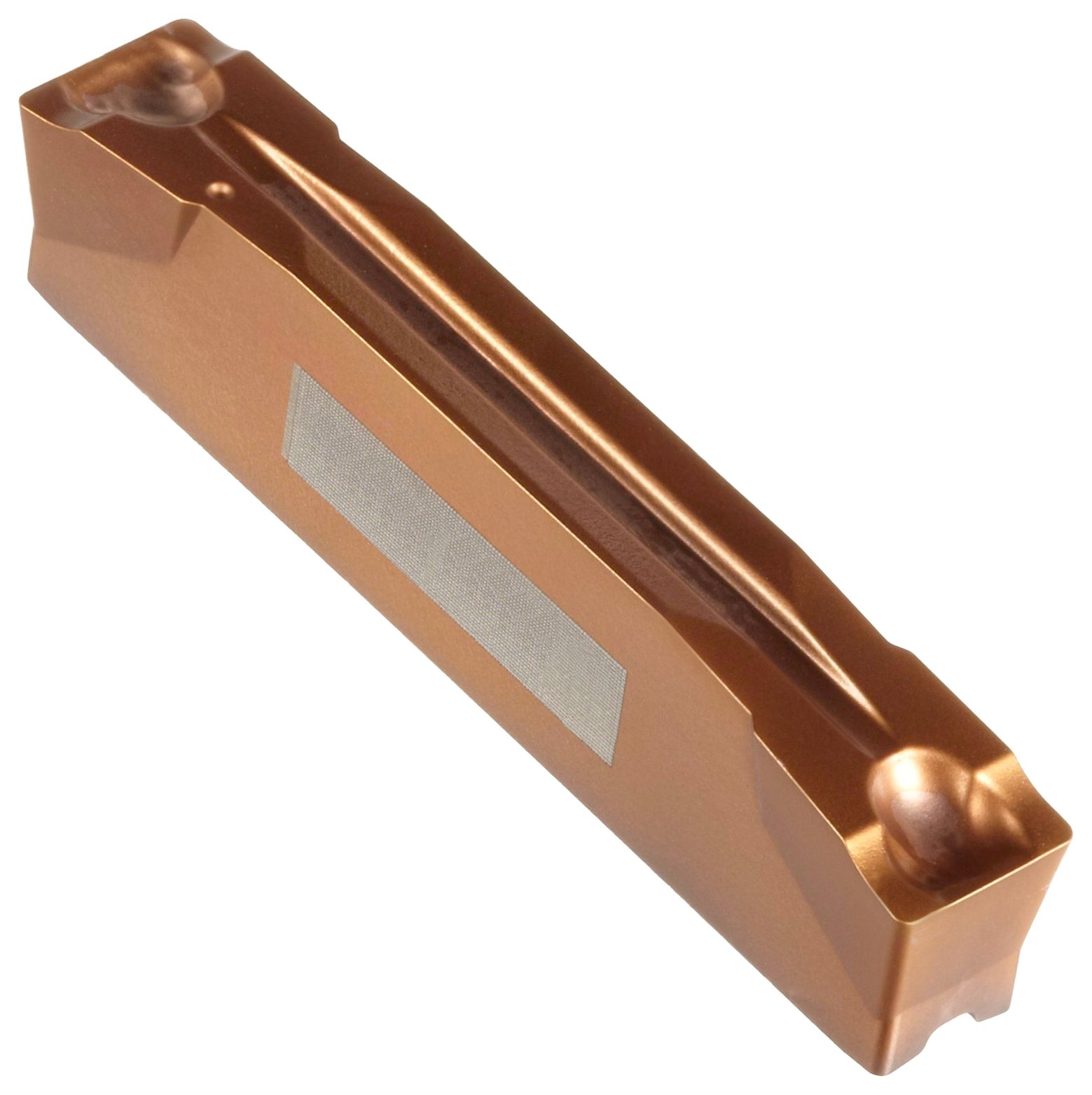

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sandvik Coromant CoroCut 2-Edge Carbide Grooving Insert, GF Geometry, Non-Handed, Neutral Cut, GC1125 Grade, Multi-Layer Coating, 2 Edges

Be the first to review this item

Product Specifications
Cutting Direction
Neutral
Chip Breaker Type
GF
Finish Types
Multi-Layer
Material Type
Carbide
Cutting Angle
0  Degrees
Brand Name
Sandvik Coromant
Size Name
Non-Handed, Neutral Cut, GC1125 Grade, Multi"
Manufacturer Series Number
CoroCut 2-Edge
Number of Cutting Edges
2
Manufacturer Grade
GC1125
UNSPSC Code
31162802
Style Name
123
Hand Orientation
Non-Handed

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 1 hr 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 43 Next 20 »
Insert size Cutting width Corner radius Insert seat size Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 43 Next 20 »
N123D2-0150-0001-GF 0.059 inches 0.0039 inches D 10 B004AP97CS yes $351.00 Buy Options
N123E2-0185-0001-GF 0.073 inches 0.0039 inches E 10 B004AP97CI Temporarily out of stock. Order now and we'll deliver when available. $351.00 Buy Options
N123E2-0198-0002-GF 0.078 inches 0.0079 inches E 10 B004AP997G Temporarily out of stock. Order now and we'll deliver when available. $351.00 Buy Options
N123E2-0200-0002-GF 0.079 inches 0.0079 inches E 10 B004AP996M yes $351.00 Buy Options
N123E2-0200-0004-GF 0.079 inches 0.0157 inches E 10 B004C041QS Temporarily out of stock. Order now and we'll deliver when available. $351.00 Buy Options
N123E2-0215-0001-GF 0.085 inches 0.0039 inches E 10 B004AP97C8 Temporarily out of stock. Order now and we'll deliver when available. $351.00 Buy Options
N123E2-0224-0002-GF 0.088 inches 0.0079 inches E 10 B004AP994O yes $351.00 Buy Options
N123F2-0239-0002-GF 0.094 inches 0.0079 inches F 10 B004C040YG yes $362.00 Buy Options
N123F2-0239-0004-GF 0.094 inches 0.0157 inches F 10 B004AP9AIE yes $351.00 Buy Options
N123F2-0246-0003-GF 0.097 inches 0.0118 inches F 10 B004AP99R6 yes $362.00 Buy Options
N123F2-0265-0002-GF 0.104 inches 0.0079 inches F 10 B004AP993K Temporarily out of stock. Order now and we'll deliver when available. $362.00 Buy Options
N123F2-0267-0002-GF 0.105 inches 0.0079 inches F 10 B004AP993A Temporarily out of stock. Order now and we'll deliver when available. $362.00 Buy Options
N123F2-0279-0003-GF 0.11 inches 0.0118 inches F 10 B004AP99QM Temporarily out of stock. Order now and we'll deliver when available. $362.00 Buy Options
N123G2-0300-0002-GF 0.118 inches 0.0079 inches G 10 B004AP991M yes $388.61 Buy Options
N123G2-0300-0004-GF 0.118 inches 0.0157 inches G 10 B004AP9AHK Temporarily out of stock. Order now and we'll deliver when available. $389.00 Buy Options
N123G2-0310-0002-GF 0.122 inches 0.0079 inches G 10 B004AP991C Temporarily out of stock. Order now and we'll deliver when available. $389.00 Buy Options
N123G2-0315-0002-GF 0.124 inches 0.0079 inches G 10 B004AP9912 yes $389.00 Buy Options
N123G2-0318-0002-GF 0.125 inches 0.0079 inches G 10 B004AP990S Usually ships in 1 to 2 months $388.61 Buy Options
N123G2-0318-0004-GF 0.125 inches 0.0157 inches G 10 B004AP9AGQ Temporarily out of stock. Order now and we'll deliver when available. $388.61 Buy Options
N123G2-0318-0008-GF 0.125 inches 0.0315 inches G 10 B004AP9AXO yes $389.00 Buy Options

Key Features

  • Used with the Sandvik Coromant CoroCut 1-2 for internal and external grooving in all materials
  • GC1125 grade is a physical vapor deposition (PVD) coating of titanium aluminum nitride (TiAlN) and chromium oxide (Cr2O3) over carbide that provides a balance of resistance to shock and wear in average machining conditions
  • GF chipbreaker with a sharp cutting edge for precision grooving at low feed rates
  • For use with V- or rail-shape clamp toolholders for security
  • Two cutting edges for indexing and a non-handed 0-degree cutting angle for neutral cutting direction

Product Description

This Sandvik Coromant CoroCut 2-Edge indexable grooving insert is carbide GC1125 grade and has two cutting edges, a non-handed 0-degree cutting angle, and a GF chipbreaker for neutral-cut external or internal grooving in all materials at low feed rates. GC1125 grade is a physical vapor deposition (PVD) coating of titanium aluminum nitride (TiAlN) and chromium oxide (Cr2O3) over carbide that provides a balance of hardness for wear resistance and toughness for shock resistance in average machining conditions. The PVD coating maintains a sharper cutting edge than a chemical vapor deposition (CVD) coating.

The insert has a GF chipbreaker that has a sharp cutting edge for precision grooving at low feed rates. This double-edged insert has a non-handed 0-degree cutting angle for a neutral cutting direction. It has a V-shape or rail-shape clamping groove on both sides. Tolerance of the cutting width of the insert is + or - 0.0008".

Grooving inserts are coded according to their specific cutting and application capability (e.g., N123M1-0900-0008-GM). Each section of the code represents details of the insert: hand, compatible toolholder series, seat size, number of edges, insert width, lead angle, corner radius, and chipbreaker. Generally, as the insert size becomes larger, the maximum cutting depth increases. Cutting depth influences the material removal rate, the number of cuts, and chip evacuation efficiency when using the insert. Indexable inserts are small cutting tools designed to remove material in external and internal cutting applications such as turning, milling, drilling, parting, and grooving. They are held by an insert holder and usually have multiple cutting edges that can be rotated when one edge wears down. Multiple inserts can accomplish a variety of cuts in one operation.

Sandvik Coromant produces tools for turning, milling, and drilling. Headquartered in Sweden, the company manufactures tools used throughout the metalworking field, including the automotive and aerospace, die and mold, and general engineering industries.

Matching Inserts to Holders

These inserts are used with the Sandvik Coromant CoroCut 1-2, an indexable holding system for internal and external medium to deep parting, grooving, and profiling operations. The V- or rail-shape design of the toolholder provides secure clamping.
