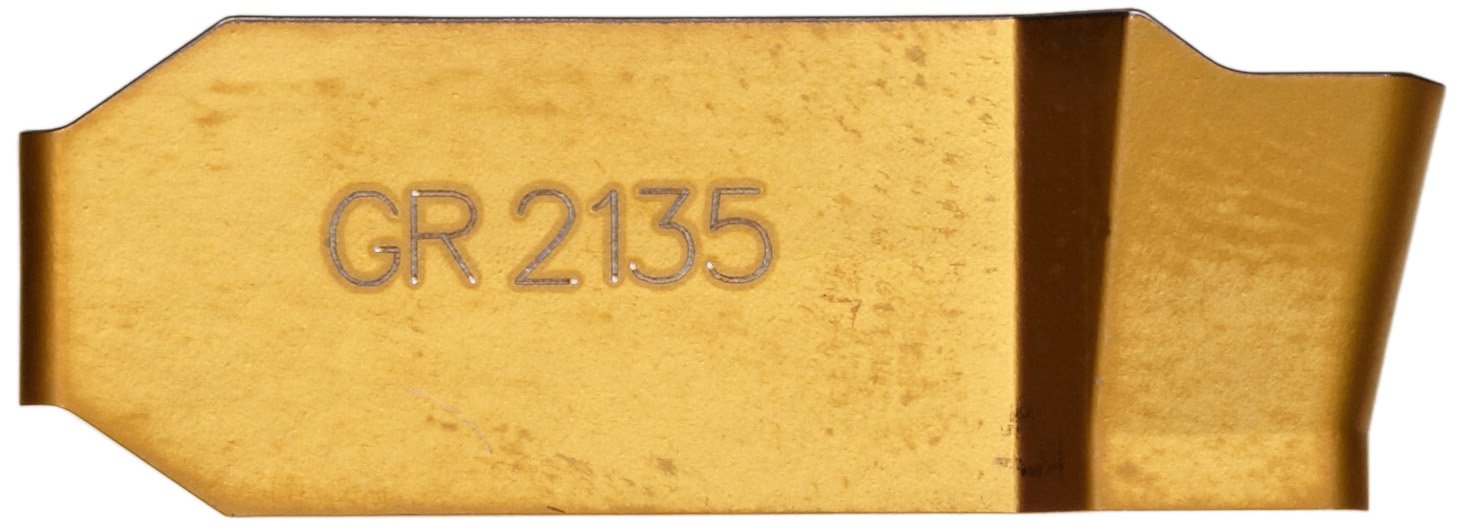

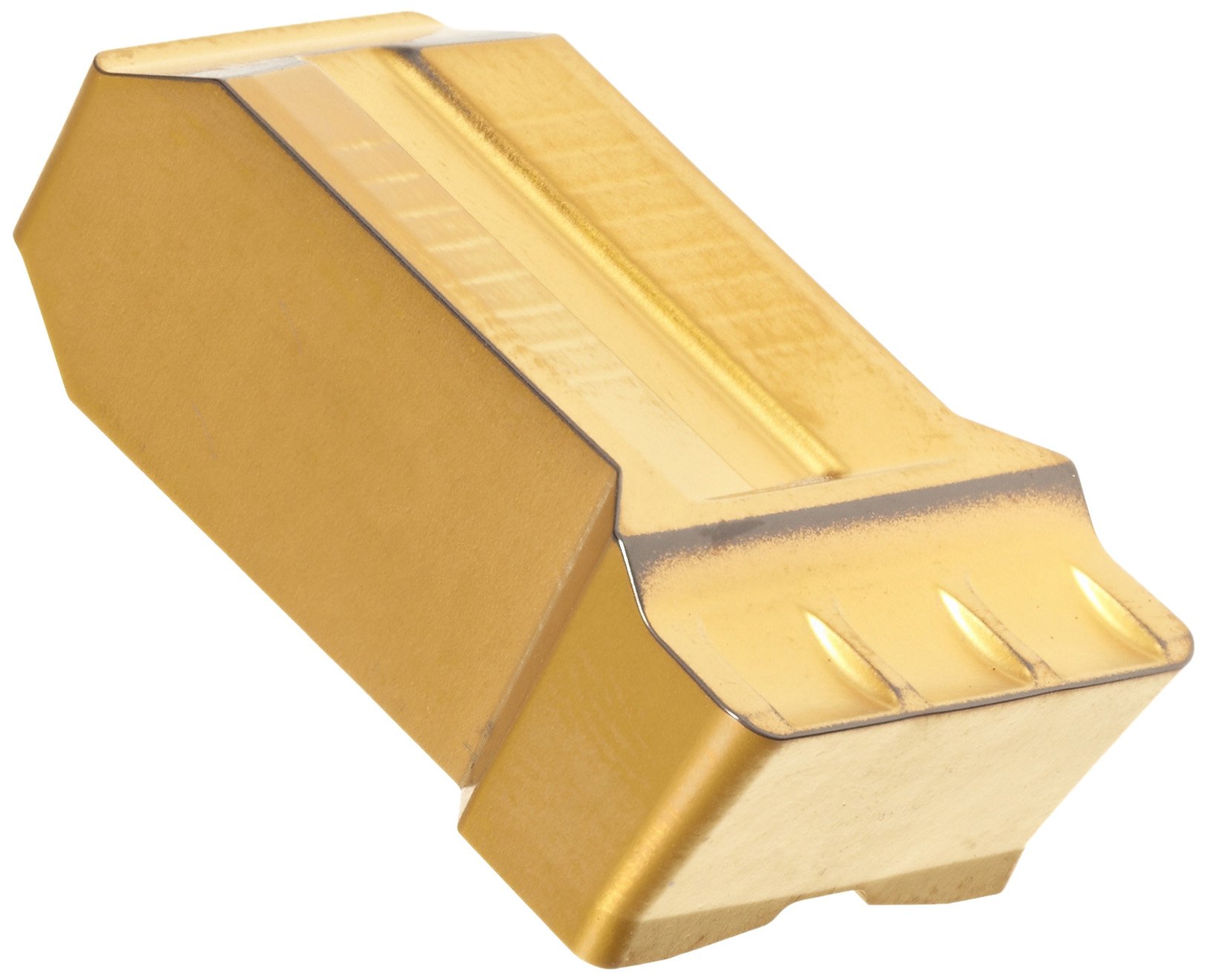

Sandvik Coromant CoroCut 1-Edge Carbide Grooving Insert, GR Geometry, Non-Handed, Neutral Cut, GC2135 Grade, Multi-Layer Coating, 1 Edges

Be the first to review this item

Product Specifications
Cutting Direction
Neutral
Chip Breaker Type
GR
Finish Types
Multi-Layer
Material Type
Carbide
Cutting Angle
0  Degrees
Brand Name
Sandvik Coromant
Size Name
Non-Handed, Neutral Cut, GC2135 Grade, Multi"
Manufacturer Series Number
CoroCut 1-Edge
Compatible Material
Stainless
Number of Cutting Edges
1
Manufacturer Grade
GC2135
UNSPSC Code
31162802
Style Name
123
Hand Orientation
Non-Handed
Corner Radius
0.0472  inches
Overall Length
1  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 30? Order in-stock items in the next 16 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-1 of 1
Insert size Cutting width Insert seat size Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-1 of 1
N123R1-1500-0010-GR 0.591 inches R 10 B0049U5S2C yes $261.88 Buy Options

Key Features

  • Used with the Sandvik Coromant CoroCut 1-2 for non-handed external deep grooving in stainless steel
  • GC2135 grade is a medium-temperature chemical vapor deposition (MTCVD) coating of titanium carbonitride (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) over carbide that provides shock resistance without limiting wear resistance in difficult-to-average machining conditions
  • GR chipbreaker for excellent chip control at high feed rates
  • For use with rail-shape clamp toolholders for security
  • One cutting edge and a non-handed 0-degree cutting angle for neutral cutting direction

Product Description

This Sandvik Coromant CoroCut 1-Edge grooving insert is carbide GC2135 grade and has one cutting edge, a non-handed 0-degree cutting angle, and a GR chipbreaker for neutral-cut deep external grooving of stainless steel at high feed rates. GC2135 grade is carbide with a coating of titanium carbonitride (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) applied through medium-temperature chemical vapor deposition (MTCVD) that provides toughness for shock resistance without limiting hardness for wear resistance in difficult-to-average machining conditions. MTCVD coatings are deposited at lower temperatures than CVD coatings to reduce cracks in the coating.

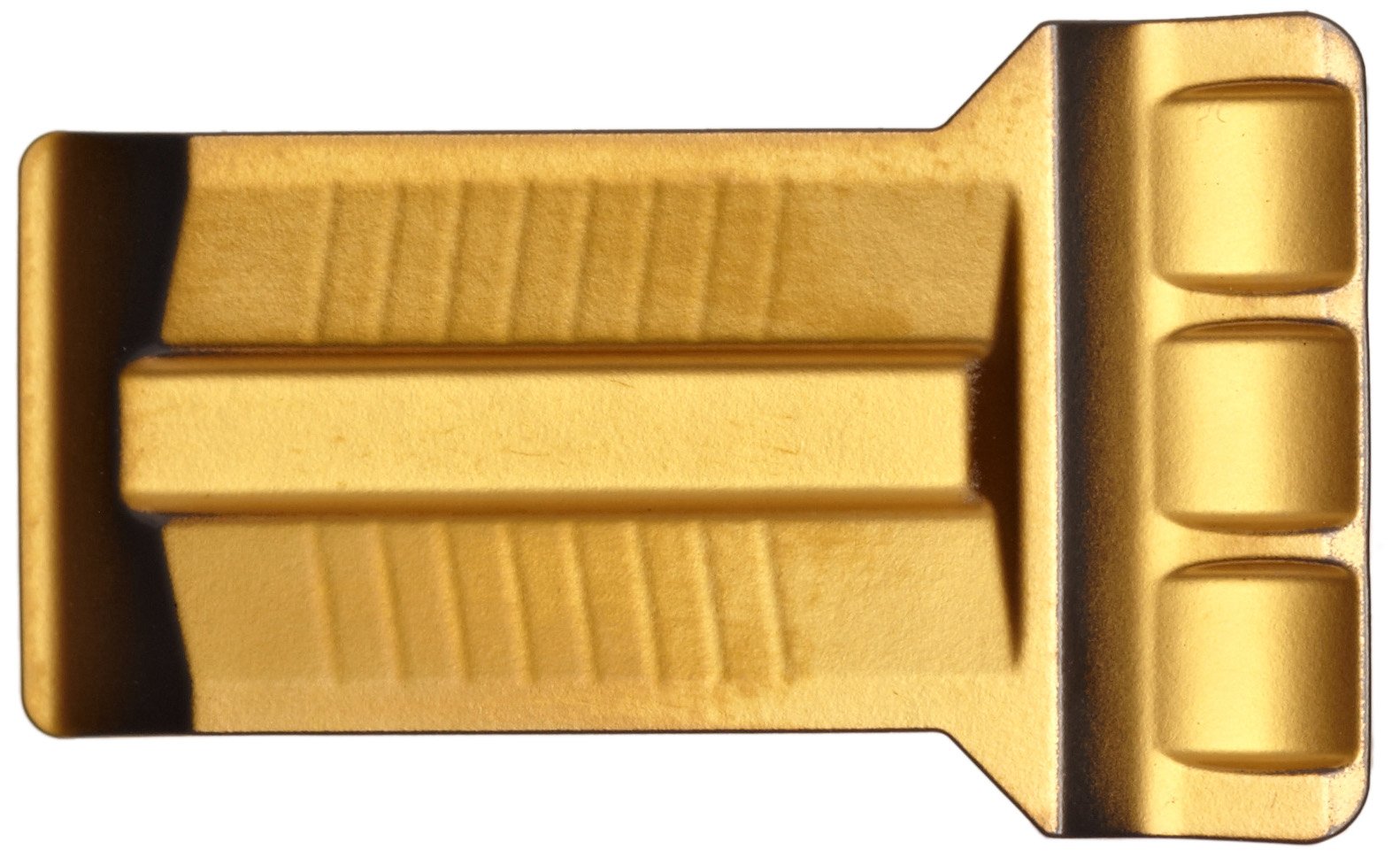

This single-edged insert has a GR chipbreaker, which has excellent chip control for deep grooving at high feed rates. It has a non-handed 0-degree cutting angle for a neutral cutting direction. The insert has a rail-shaped clamping groove on one side. The tolerance of the cutting width of the insert is + or - 0.003".

Grooving inserts are coded according to their specific cutting and application capability (e.g., N123M1-0900-0008-GM). Each section of the code represents details of the insert: hand, compatible toolholder series, seat size, number of edges, insert width, lead angle, corner radius, and chipbreaker. Generally, as the insert size becomes larger, the maximum cutting depth increases. Cutting depth influences the material removal rate, the number of cuts, and chip evacuation efficiency when using the insert. Indexable inserts are small cutting tools designed to remove material in external and internal cutting applications such as turning, milling, drilling, parting, and grooving. They are held by an insert holder and usually have multiple cutting edges that can be rotated when one edge wears down. Multiple inserts can accomplish a variety of cuts in one operation.

Sandvik Coromant produces tools for turning, milling, and drilling. Headquartered in Sweden, the company manufactures tools used throughout the metalworking field, including the automotive and aerospace, die and mold, and general engineering industries.

Matching Inserts to Holders

These inserts are used with the Sandvik Coromant CoroCut 1-2, an indexable holding system for internal and external medium to deep parting, grooving, and profiling operations. The V- or rail-shape design of the toolholder provides secure clamping.
