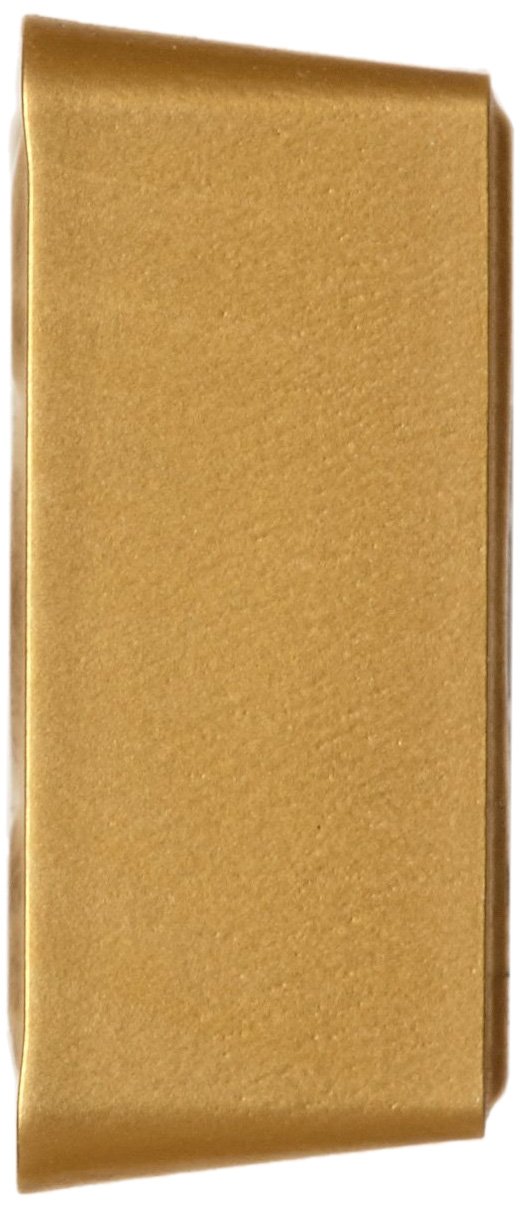

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Sandvik Coromant SCMT Carbide Turning Insert, GC1005 Grade, TiAlN Coating, Square Shape (Pack of 10)

Be the first to review this item

Product Specifications
Item Shape
Square
Finish Types
TiAlN
Manufacturer Grade
GC1005
Material Type
Carbide
Style Name
SCMT
UNSPSC Code
31162802

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 14 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size Inscribed Circle Thickness Corner Radius Chipbreaker Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-2 of 2
SCMT 3(2.5)1 0.375" 0.156" 0.0157" MM 10 SCMT 3(2.5)1-MM 1005 B0040QD8SQ 1 $99.32 Buy Options
SCMT 3(2.5)2 0.375" 0.156" 0.0315" MM 10 SCMT 3(2.5)2-MM 1005 B0040QD9F8 1 $99.32 Buy Options

Key Features

  • Designed for medium-machining turning operations on stainless steel and heat resistant super alloys in average to good conditions
  • GC1005 grade is a PVD coating of titanium aluminum nitride (TiAlN) over carbide that provides hardness for high wear resistance
  • Square shape offers edge strength and is suitable for facing, interrupted cuts, and large lead angles
  • Medium-machining (MM) chipbreaker style helps prevent chip buildup at a range of cutting depths and feed rates
  • Positive single-sided insert with 7-degree clearance angle for light cutting forces and side clearance

Product Description

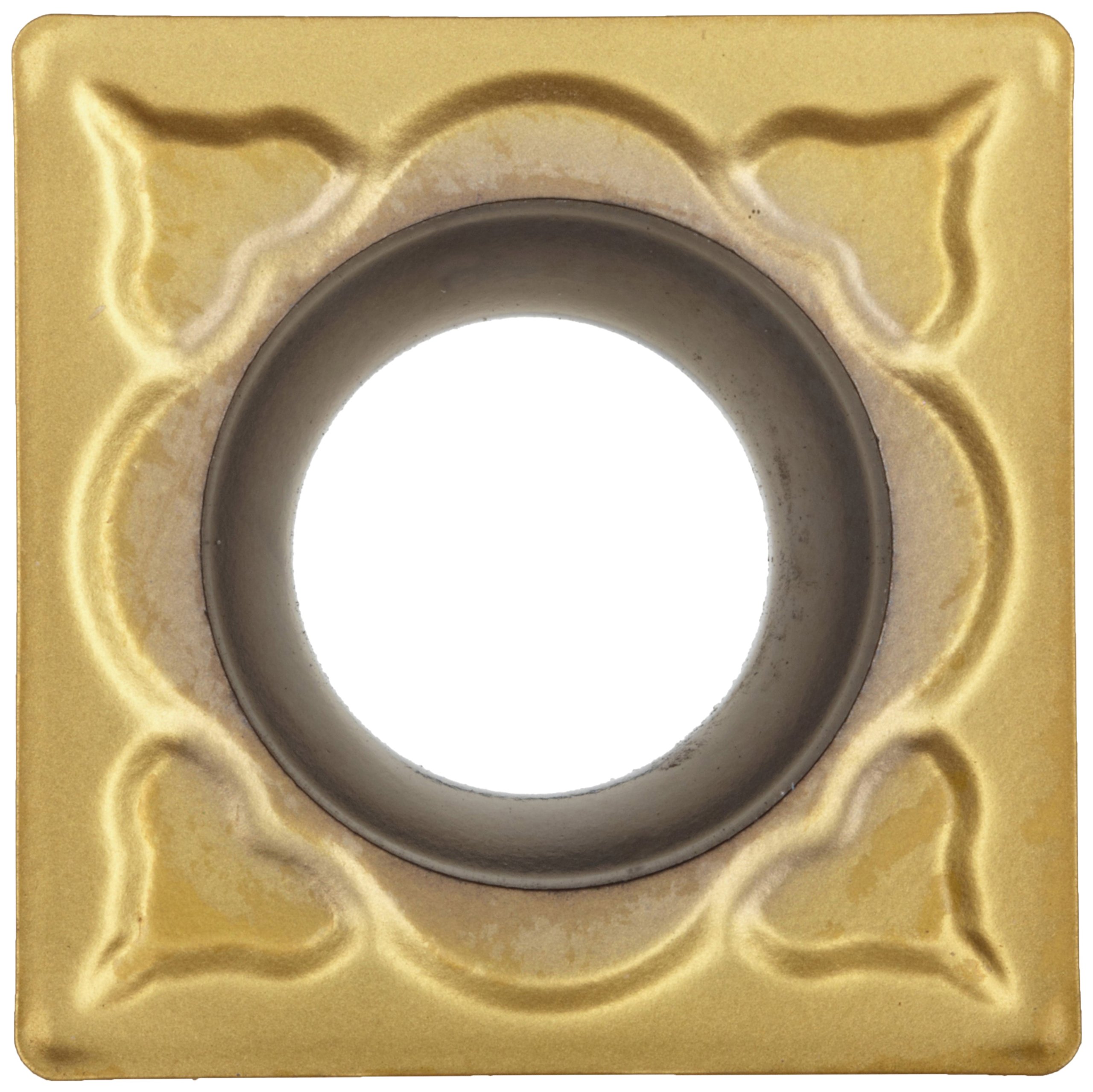

The Sandvik Coromant SCMT GC1005 carbide indexable turning insert with MM chipbreaker has a square shape with a 7-degree clearance angle, providing hardness for high resistance to wear for turning of stainless steel and heat resistant super alloys (HRSA) in average to good conditions. The single-sided positive insert has chip grooves on one side, a countersunk hole in the center, and four cutting edges. It has a 7-degree clearance angle for light cutting forces and side clearance, making it better than a negative insert for internal turning. It can also be used for facing, interrupted cuts, and large lead angles. A combination of carbide and a thin TiAlN coating applied through physical vapor deposition (PVD) provides hardness for better wear resistance for turning stainless steel and HRSA than uncoated carbide inserts. PVD coatings also add edge toughness and crack resistance, giving the insert longer life and better wear resistance than uncoated inserts, and maintain a sharper cutting edge than those with chemical vapor deposition (CVD) coatings.

SCMT GC1005 MM chipbreaker evacuates chips during medium machining in average to good conditions, and offers a wide range of cutting depth and feed rate combinations. Tolerance of distance from the outer edge of the inscribed circle to the point of the square is + or - 0.002” to 0.005” and tolerance of the theoretical diameter of the insert is + or - 0.002” to 0.005”. Insert thickness tolerance is + or - 0.005”. Different insert shapes and sizes may have different inscribed circle (iC) measurements, which are related to the insert’s range of cutting depths, speeds, lead angle, and feed rates. The inscribed circle is the largest circle that can be drawn within the edges of the insert shape. In general, as the insert size and iC become larger, the maximum cutting depth increases. The cutting depth influences the metal removal rate, number of cuts, chip evacuation, and power required when using the insert.

Indexable inserts are small cutting tools designed to remove material in external and internal cutting applications such as turning, milling, drilling, and grooving. They are held by an insert holder, have multiple cutting edges, and can be rotated when one edge wears down. Multiple inserts can be used to accomplish a variety of cuts in one operation. An insert is either positive or negative, which refers to the rake or clearance angle at which the insert removes material. Inserts are coded according to their specific cutting and application capability (e.g., VNMG 16 04 04-QM). Each part of the code represents details of the insert shape, nose angle, clearance angle, tolerance, size, geometry, grade, and chipbreaker style.

Sandvik Coromant produces tools for turning, milling, and drilling. Headquartered in Sweden and represented in 130 countries, the company manufactures tools used throughout the metalworking field, including the automotive and aerospace, die and mould, and general engineering industries. All Sandvik Coromant inserts meet ISO and ANSI standards.

Matching Inserts to Holders

These inserts are part of the Sandvik Coromant 107 Positive Insert family, which means they can be used in the CoroTurn 107 clamping system. The CoroTurn 107 system is used for internal longitudinal turning of small diameters, and is also for external light roughing to finishing.
