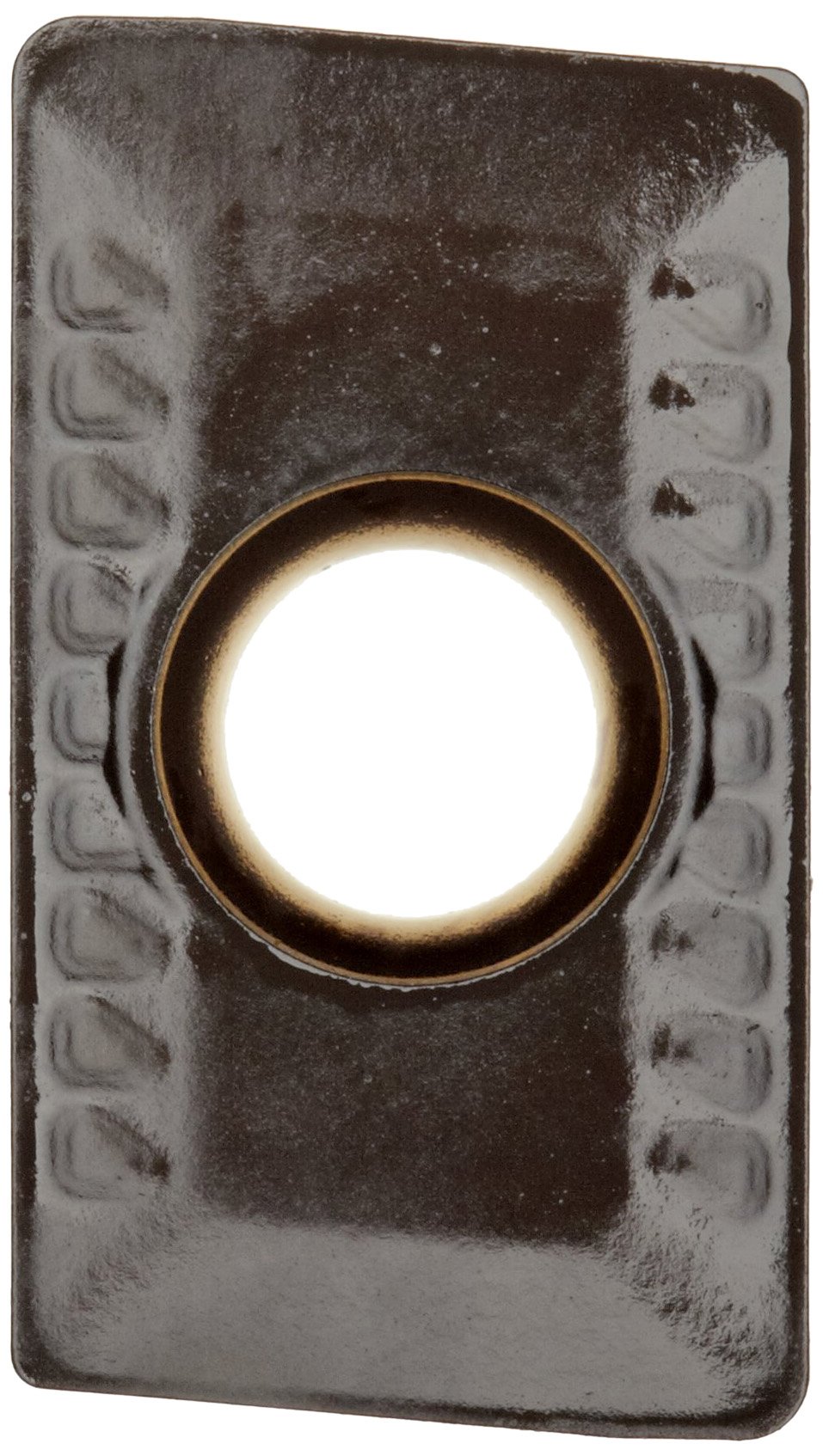

Sandvik Coromant CM BALL NOSE Carbide Milling Insert, APMT Style, Diamond, GC4240 Grade, Multi-Layer Coating, APMT160408M,0.187" Thick, 0.031" Corner Radius (Pack of 10)

Be the first to review this item

ASIN B0047ZGDP0

Specifications for this item
Overall Width
0.187  inches
Item Shape
Diamond
Finish Types
Multi-Layer
Part Number
APMT 16 04 08-M 4240
Cutting Angle
90  Degrees
Brand Name
Sandvik Coromant
Cut Type
Medium
Number of Flutes
2
Style Name
APMT
Hand Orientation
Neutral
Compatible Devices
RA216-32M32-070,RA216-32M32-101,RA216-38M38-101,RA216-38M38-152,RA216-51M51-127,RA216-51M51-178
Cutting Direction
Neutral
Number of Items
10
Chip Breaker Type
M
Material Type
Carbide
Outside Diameter
0.364  inches
Thickness
0.187  inches
Size Name
APMT160408M
Manufacturer Series Number
CM BALL NOSE
Rake Type
Positive
Manufacturer Grade
GC4240
Corner Radius
0.031  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 19 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Used with 30 mm to 50 mm diameter versions of the Sandvik Coromant CoroMill 216 ball nose milling insert holder for medium machining of steel in difficult-to-average machining conditions
  • Protects the tool shank from damage during milling operations
  • GC4240 grade is a medium temperature chemical vapor deposition (MTCVD) of titanium carbon nitride (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) over carbide that provides good shock resistance without limiting wear resistance and provides toughness for demanding operations
  • Edge performance type is highest security (M)
  • Screw-style mounting for secure clamping

Package Details

Shipping Weight: 0.2 pounds
Package Size: 5 x 2.1 x 0.6 inches

Product Description

The Sandvik Coromant APMT GC4240 carbide shank protection insert has a parallelogram shape, highest edge security (M), and provides good shock resistance without limiting wear resistance for medium-machining of steel in difficult-to-average machining conditions. A combination of carbide and a thin multilayer coating of titanium carbon nitride (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) applied through medium temperature chemical vapor deposition (MTCVD) provides toughness to protect the tool shank when making contact with the workpiece in demanding operations. MTCVD coatings are deposited at lower temperatures than chemical vapor deposition (CVD) coatings, resulting in the appearance of few or no cracks in the coating and providing improved toughness and smoothness compared to CVD coatings.

This positive insert is used with the 30 mm to 50 mm diameter versions of the CoroMill 216 ball nose milling insert holder, a screw-style holding system for contoured profiling, ramping, and slotting of 3D shapes. The insert has a hole in the center, two cutting edges, and an 11-degree clearance angle. It has an M edge performance type for highest security.

Milling inserts are coded according to their specific cutting and application capability (e.g., APMT-16-04-08-M). Each section of the code represents details of the insert: shape, clearance angle, tolerance class, insert type, cutting edge length, thickness, radius, and edge performance. Tolerance of the inscribed width (iW) of the insert is + or - 0.05 mm. Insert thickness tolerance is + or - 0.13 mm. Insert shapes and sizes may have different cutting depths, speeds, lead angles, and feed rates. Generally, as the insert size and iW becomes larger, the maximum cutting depth increases. Cutting depth influences the metal removal rate, the number of cuts, chip evacuation, and power required when using the insert. Indexable inserts are small cutting tools designed to remove material in external and internal cutting applications such as turning, milling, drilling, and grooving. They are held by an insert holder, have multiple cutting edges, and can be rotated when one edge wears down. Multiple inserts can accomplish a variety of cuts in one operation. An insert is either positive or negative, which refers to the rake or clearance angle at which the insert removes material.

Sandvik Coromant produces tools for turning, milling, and drilling. Headquartered in Sweden and represented in 130 countries, the company manufactures tools used throughout the metalworking field, including the automotive and aerospace, die and mold, and general engineering industries.

Matching Inserts to Holders

These inserts are used with the 30 mm to 50 mm diameter versions of the Sandvik Coromant CoroMill 216 ball nose milling insert holder, a screw-style holding system. The CoroMill 216 is used in high-feed profile milling of 3D shapes, and roughing and semi-finishing applications. The system offers high productivity.
