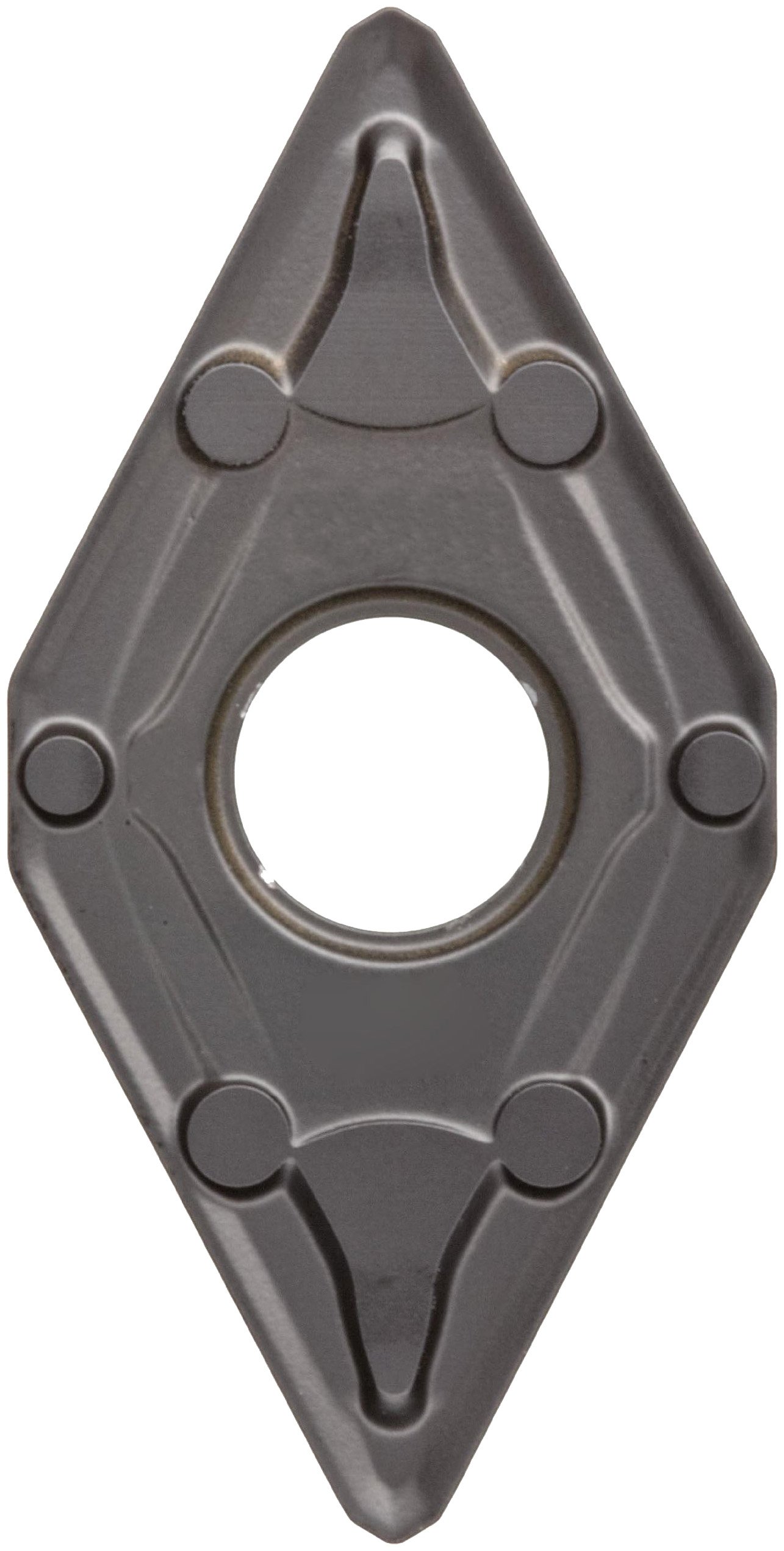

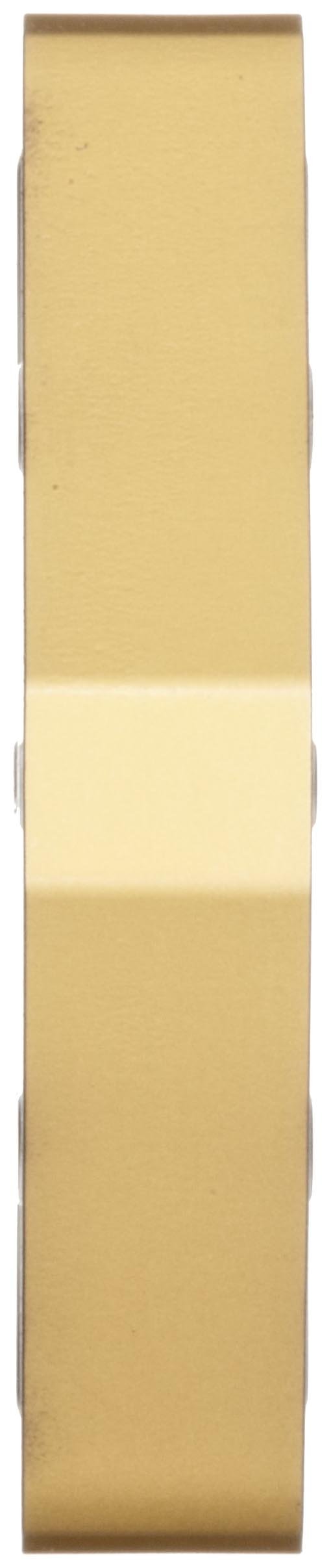

Sandvik Coromant DNMX 433-WMX 3210 GC3210 Grade, MTCVD Coated, 55 Degree Diamond Shape, WMX Chip Breaker, 433 Insert Size, 0.1875" Thickness, 0.0472" Nose Radius Carbide Turning Insert (Pack Of 10)

Be the first to review this item

ASIN B0040NQ7CS

Specifications for this item
Item Shape
55-Degree Diamond
Finish Types
Multi-Layer
Part Number
DNMX 433-WMX 3210
Cutting Angle
55  Degrees
Brand Name
Sandvik Coromant
Cut Type
Wiper High Feed
Style Name
DNMX
Hand Orientation
Neutral
Compatible Devices
DDJNL 12 4B, DDJNL 16 4D, DDJNR 12 4B, DDJNR 16 4D
Number of Items
10
Cutting Direction
Neutral
Chip Breaker Type
WMX
Material Type
Carbide
Outside Diameter
0.5  inches
Thickness
0.188  inches
Size Name
DNMX 433
Rake Type
Negative
Manufacturer Grade
GC3210
UNSPSC Code
31162802
Corner Radius
0.0472  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 3 days 7 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • T-Max┬« P, Negative style, double-sided carbide insert. Ideal for external turning, large components, and difficult conditions.
  • 55 Degree diamond turning insert, insert size is 433, no. of edges 4
  • Wiper High Feed Chipbreaker, Cast Iron Application. Sandvik Coromant Wiper inserts are innovative, high-productive inserts for semifinish and finish turning. Thanks to a subtle change in the insert nose radius, the feed rates can be doubled without affecting the surface finish. Guidelines: Two times the feed rate = Same surface finish. Same feed rate = A surface finish that is twice as good.
  • For best results, use CoroTurn┬« RC rigid clamping system. CoroTurn RC is a top and hole clamping system, and is the first choice when stability and security are essential for productive turning of large components. The system is mostly used for external turning, from finishing to roughing, but also for internal turning, when chip evacuation is good.
  • Multilayer coating combines TiCN, Aluminum Oxide, and TiN excellent for high sped turning of nodular cast iron

Package Details

Shipping Weight: 0.35 pounds
Package Size: 5 x 2.1 x 0.4 inches

Product Description

WMX wiper medium chipbreaker highfeed insert type. CVD-coated carbide consisting of a thick, smooth, wear resistant coating and a very hard substrate. Recommended for high sped turning of nodular cast iron (NCI).
