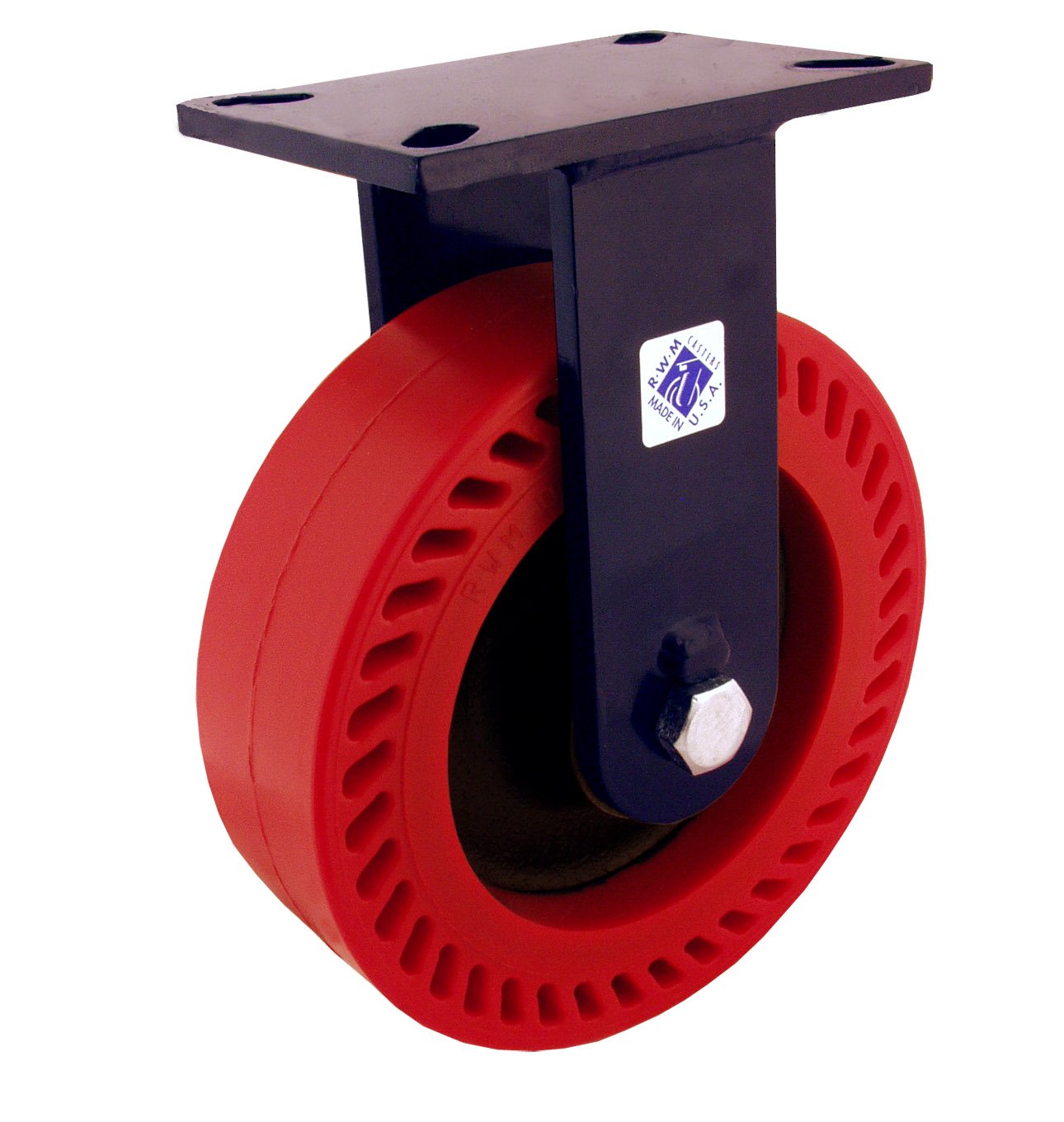

RWM Casters 76 Series Plate Caster, Rigid, Kingpinless, Phenolic Wheel, Roller Bearing, 2500 lbs Capacity, 8" Wheel Dia, 3" Wheel Width, 10-1/2" Mount Height, 7-1/4" Plate Length, 5-1/4" Plate Width

Be the first to review this item

ASIN B004071SIW

Specifications for this item
Overall Height
10-1/2  inches
Wheel Diameter
8  inches
Part Number
76-DUR-0830-R
Inside Width
5-1/4  inches
Brand Name
RWM Casters
Capacity
2500  pounds
Special Features
Rigid
Number of Items
1
Material Type
Phenolic
Color Name
Red
UPC
094717461483
Wheel Tread Width
3  inches
Manufacturer Series Number
76 Series
EAN
0094717461483
Inside Length
7-1/4  inches
Load Capacity
2500  pounds
UNSPSC Code
31162701
Bearing Type
Roller
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 14 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 10-1/2" Overall height, 2-15/16" swivel lead and 2500lbs capacity
  • Durastan wheel with straight roller bearing
  • 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt hole spacing for 1/2" diameter bolt
  • Swivel section features 3" diameter raceway with 1/2" ball bearings, the notched raceway is standard
  • Laguna blue paint finish

Package Details

Shipping Weight: 18.85 pounds
Package Size: 12.4 x 11.9 x 11 inches

Product Description

RWM's 76 series caster features the patented kingpinless design and that has proven itself to be the best solution for demanding applications. This patented kingpinless single ball bearing precision machined raceway hardened to 53 Rockwell C minimum. This is the caster design that all others are now copying because it is simply unmatched in extending service life, reducing all possible causes for caster failure. The 76 series offers up to 7000 lb. capacity and is available with a wide variety of wheels. All swivel sections are supplied with a lubrication fitting for field maintenance. The 76 series is case hardened for long service life. It will not crack like through hardened or induction hardened construction provided by other caster manufacturers. The 76 series typical applications include dollies, utility carts, tow line and platform trucks. It is also ideal for tow lines, shock load applications and abusive conditions, production line dollies and trucks used in various industries including but not limited to: boat and ship molding and building, automotive, aerospace, metal fabricating, metal forging, heavy machinery and equipment, military equipment, mobile homes, etc. Tractor pulled trailers, extreme duty platform trucks and material handling carts, air cargo and ground support equipment, storage tanks, gantries and heavy duty processing equipment, coliseum and gymnasium equipment, shipping/receiving carts, warehousing and freight terminal dollies and carts, and countless other heavy duty applications. This caster is the mainstay in tire manufacturing. 3/4" Diameter axle bolt with lock or slotted nut as required and 3" tread wheel. Mounting plate size is 5-1/4" x 7-1/4" x 3/8".
