RIKON 70-100 12-by-16-Inch Mini Lathe

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name
RIKON Power Tools
8 Year Warranty

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, May 6? Order in-stock items in the next 4 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Easy Access Speed Change: Provides ample room to change speeds quickly
  • Self Ejecting Tail Stock: No need to use the knock-out bar to remove the center
  • Laser engraved ram with 2-1/2-Inch travel
  • Ability to Add Multiple Extensions
  • 1/2HP Motor

Package Details

Shipping Weight: 91.4 pounds
Package Size: 34.25 x 18.25 x 11.75 inches

Product Description

With its increased capacity, the RIKON 70-100 12-by-16-Inch Mini Lathe gives you the opportunity to do more with less space. This powerful, smooth-running lathe offers unique features like a 12-position index head for accurate pattern work, easy access for quick speed changes, a convenient tool holder, and the ability to add multiple extensions.

callout box top

12-by-16-Inch Mini Lathe
At a Glance:
  • Largest mini lathe in the industry
  • Easy-access speed change for quick speed adjustments
  • Unique 12-position indexing head for detail work
  • Equipped for additional extensions
  • Two-year warranty
Related Accessories:

related accessories
Variable-Speed Kit
callout box bottom

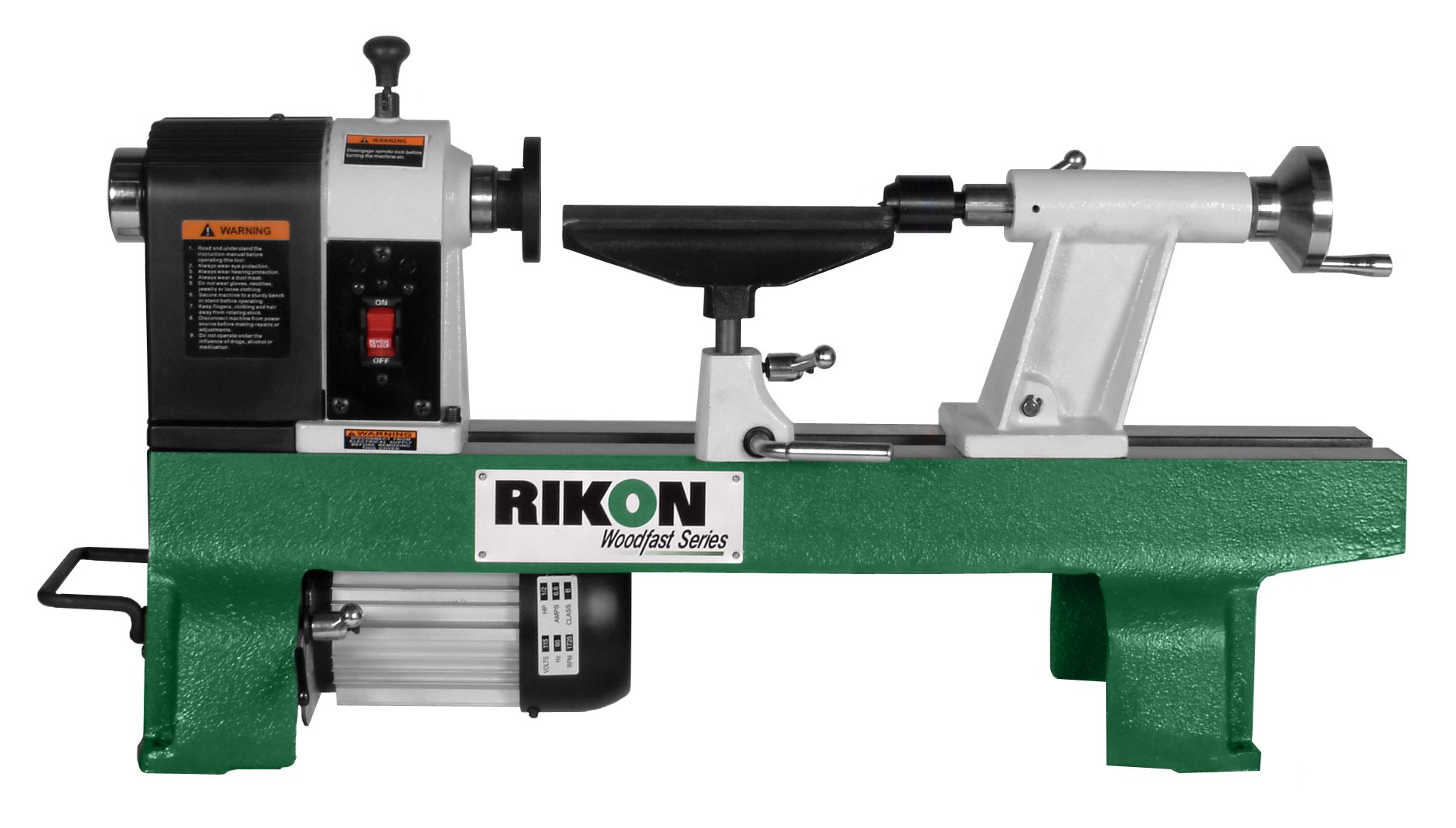

RIKON 70-100 12- by 16-Inch Mini Lathe
Powerful mini lathe has 12-position index for accurate work; its compact design allows it to fit in tight spaces. View larger.
RIKON 70-100 12- by 16-Inch Mini Lathe
Lock the wood in multiple positions for better accuracy in detail work.
View larger.
Largest Mini Lathe in the Industry
The RIKON Mini Lathe features the largest capacity in the industry, and with options for multiple extensions, it allows you to work with larger pieces. With 12 inches over the bed and 16 inches between centers, the RIKON Mini Lathe gives you space to do your work while maintaining a low profile on your workbench.

Change Speeds Quickly and Easily
With the easy-access speed change feature, the Mini Lathe lets you quickly change speeds--from 430 to 810, 1,230, 1,810, 2,670, and 3,900. An access cover opens up to give you room to adjust the drive belt, and it features a handy chart for determining spindle speed. A conveniently located and easy-to-use locking arm and tension-release lever are also used when adjusting the speed.

Indexing Head for Detail Work
Unique to the RIKON Mini lathe, a 12-position indexing head allows you to lock the work piece in multiple positions for improved accuracy in detail work. You can easily perform detailed pattern work on projects such as straight fluting, grooving, drilling, layout, and more. The 12-position indexing head also allows the spindle to be locked in place for easy removal of face plates, chucks, and other accessories.

Self-Ejecting Tail Stock Saves Time
Since you won't need to use the knock-out bar to remove the center, you can save time and reduce frustration with the RIKON Mini Lathe self-ejecting tail stock. With a ram that can travel up to 2-1/2 inches, the tail stock can also be moved along the lathe bed by loosening the locking lever and then relocking it in the desired position.

User-Friendly Features Offer Convenience
Several convenient features make the RIKON Mini Lathe easy to use, such as a flip-up handle for mobility, a nylon face plate washer that prevents accessories from sticking to the spindle, and a tool holder near the back of the machine that gives you easy access to your centers and knockout bars.

Accessory Options for Versatility
With several accessories available to customize the RIKON Mini Lathe, you can tailor this machine to fit your needs. You have the ability to add multiple extensions, use differently sized tool rests and face plates, and you can mount the RIKON to a stand that adjusts to your working height.

Warranty Information
The RIKON 70-100 12-by-16-Inch Mini Lathe is backed by a manufacturer's two-year limited warranty.

What's in the Box
RIKON 70-100 12-by-16-Inch Mini Lathe, knockout bar, adjustment wrench, 8-inch tool rest, live center, spur center, spindle lock assembly, knockout bar for live center pointer, tool holder, pan head screw, and owner's manual.

RIKON 70-100 12- by 16-Inch Mini Lathe

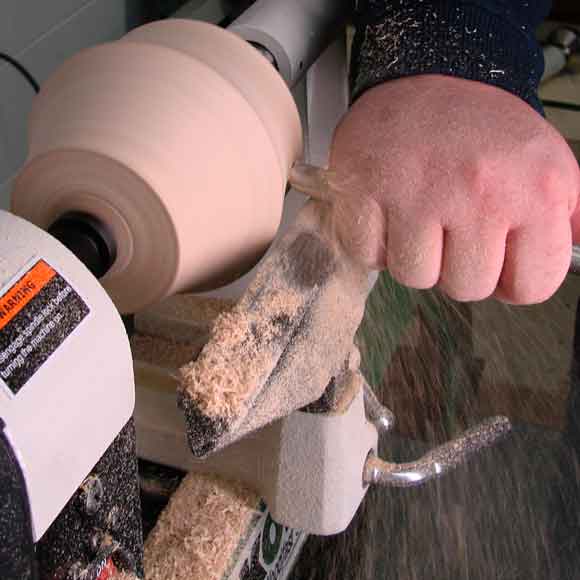

Mini lathe is ideal for fluting, grooving, drilling, layout, and more.

From the Manufacturer

RIKON's popular 12-by-16-Inch wood lathe with 12 position indexing head
