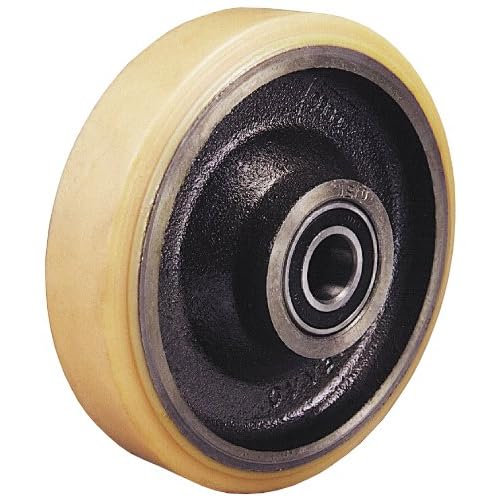

Revvo 200 PT2H 8" Diameter X 1-3/4" Width Polyurethane on Cast Iron Wheel with Precision Ball, 2420 lb. Capacity, 20mm Bore Diameter

Be the first to review this item

ASIN B006P6EKOU

Specifications for this item
Number of Items
1
Part Number
200 PT2H
Wheel Tread Width
1.75  inches
Brand Name
Revvo Caster
UNSPSC Code
31162702

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 2 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Polyurethane and cast-iron wheel with operating temperature range from -22 to +176 degrees F
  • 2,420-lb. load capacity
  • 1-3/4" wide polyurethane tread for resistance to abrasion, oils, greases, chemicals, and floor debris
  • 20 mm bore with sealed precision ball bearing for maintenance-free operation
  • Measures 8" x 1-3/4"

Package Details

Shipping Weight: 8.2 pounds
Package Size: 10.6 x 8.5 x 5.8 inches

Product Description

This Revvo 200 PT2H 8" polyurethane and cast-iron wheel has a 2,420-lb. load capacity and a 20 mm bore. It has a 2-1/4" long painted cast-iron hub with a sealed precision ball bearing for maintenance-free operation, and 1-3/4" wide polyurethane tread for resistance to abrasion, oils, greases, chemicals, and floor debris. The wheel has an operating temperature range from -22 to +176 degrees F and a Shore hardness range from A92 to A97. It measures 8 x 1-3/4 inches (Dia x W). (Dia is diameter, the vertical distance from top to bottom; W is width, the horizontal distance from one side of the tread to the other.) This polyurethane and cast-iron wheel is suitable for use in towing, automotive manufacturing, aviation ground support, and other industrial material handling applications.

Caster wheels are the rolling part of casters, which are wheeled mechanisms used to support and maneuver objects such as carts, racks, and dollies for material handling applications in many industries. Caster wheels may be single or dual (also called twin), and they are made from a variety of materials. Generally, wheels with hard tread material have a higher load capacity and roll easier than soft tread wheels, which provide quieter operation and cushioning.

Revvo Caster manufactures casters and wheels for material handling, OEM products, and industrial production. The company, founded in 1997, is headquartered in West Seneca, NY.
