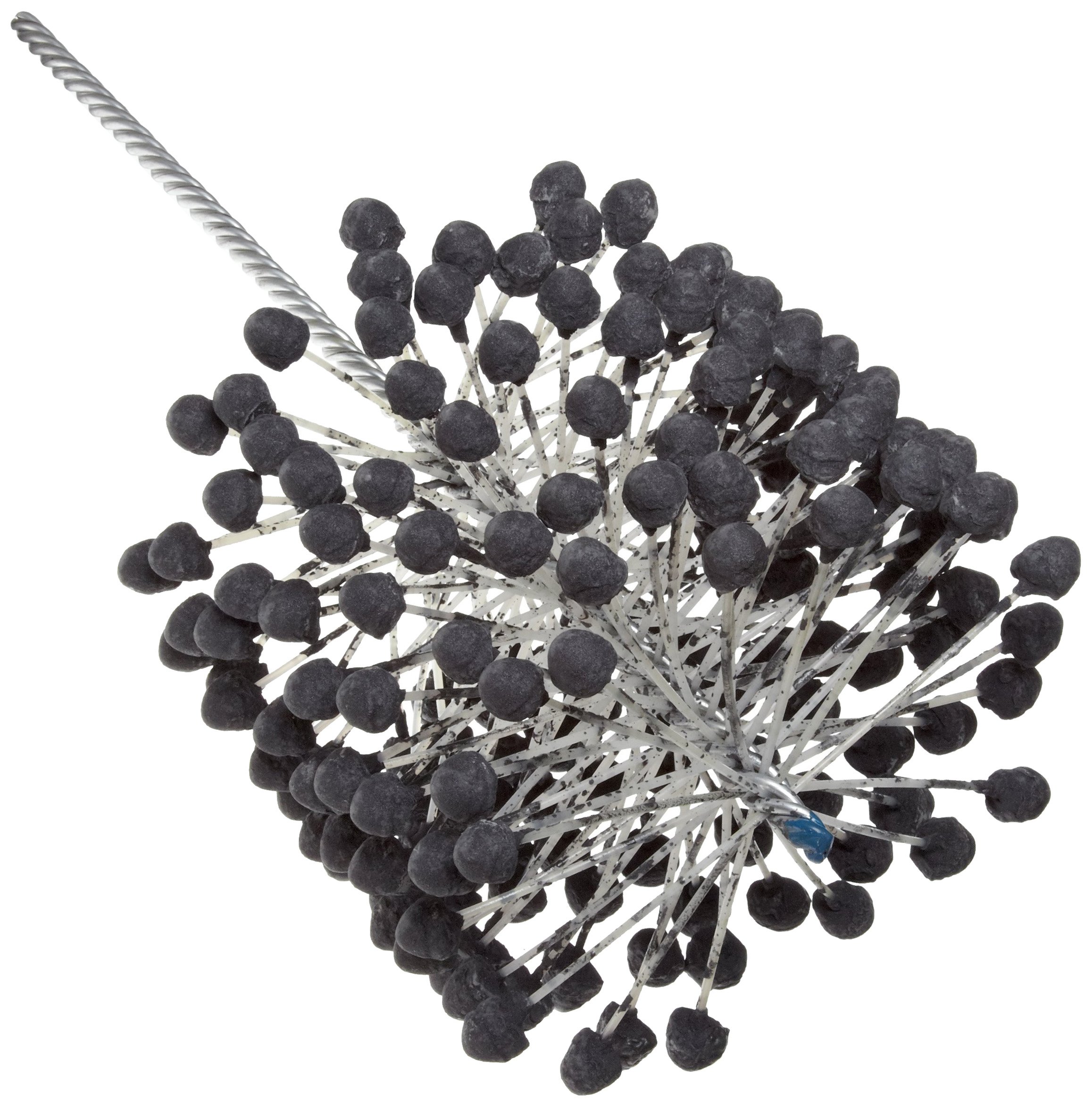

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Brush Research FLEX-HONE Cylinder Hone, GBD Series, Silicon Carbide Abrasive

Be the first to review this item

Product Specifications
Manufacturer Series Number
GBD
Manufacturer Grade
Heavy Duty
Shank Type
Round
UNSPSC Code
31191500
Grit Material Type
silicon_carbide
Brand Name
BRUBT

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 1 hr 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 40 Next 20 »
For Hole Size Decimal Equivalent Grit Size Overall Length Shank Diameter Maximum Speed Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 40 Next 20 »
3" 3" 180 13.5" 0.310" 800 rpm GBD30018 B002XUL1IA yes $47.19 Buy Options
3" 3" 240 13.5" 0.310" 800 rpm GBD30024 B002XUL1IK yes $50.03 Buy Options
3-1/4" 3.25" 240 13.5" 0.310" 800 rpm GBD31424 B002XUL1K8 yes $51.61 Buy Options
3-1/4" 3.25" 180 13.5" 0.310" 800 rpm GBD31418 B002XUL1JY yes $48.69 Buy Options
3-1/4" 3.25" 120 13.5" 0.310" 800 rpm GBD31412 B002XUL1JO yes $48.68 Buy Options
3-1/2" 3.5" 180 13.5" 0.310" 800 rpm GBD31218 B002XUL1J4 yes $50.15 Buy Options
3-1/2" 3.5" 120 13.5" 0.310" 800 rpm GBD31212 B002XUL1IU yes $50.15 Buy Options
3-1/2" 3.5" 240 13.5" 0.310" 800 rpm GBD31224 B002XUL1JE yes $53.15 Buy Options
3-3/4" 3.75" 180 13.5" 0.310" 700 rpm GBD33418 B002XUL1L2 yes $53.76 Buy Options
3-3/4" 3.75" 120 13.5" 0.310" 700 rpm GBD33412 B002XUL1KS yes $52.69 Buy Options
3-3/4" 3.75" 240 13.5" 0.310" 700 rpm GBD33424 B002XUL1LC yes $56.36 Buy Options
4" 4" 240 13.5" 0.310" 600 rpm GBD40024 B002XUL1M6 yes $57.99 Buy Options
4" 4" 120 13.5" 0.310" 600 rpm GBD40012 B002XUL1LM yes $55.54 Buy Options
4" 4" 180 13.5" 0.310" 600 rpm GBD40018 B002XUL1LW yes $57.38 Buy Options
4-1/4" 4.25" 120 13.5" 0.310" 600 rpm GBD41412 B002XUL1NA yes $61.14 Buy Options
4-1/4" 4.25" 240 13.5" 0.310" 600 rpm GBD41424 B002XUL1NU yes $65.01 Buy Options
4-1/4" 4.25" 180 13.5" 0.310" 600 rpm GBD41418 B002XUL1NK yes $61.95 Buy Options
4-1/2" 4.5" 240 13.5" 0.310" 600 rpm GBD41224 B002XUL1N0 yes $68.03 Buy Options
4-1/2" 4.5" 180 13.5" 0.310" 600 rpm GBD41218 B002XUL1MQ yes $61.83 Buy Options
4-1/2" 4.5" 120 13.5" 0.310" 600 rpm GBD41212 B002XUL1MG yes $64.73 Buy Options

Key Features

  • Self-centering, self-aligning, and self-compensating for tool wear, to reduce set-up time and costs and the need for special operator training
  • A soft cutting action to create a plateau finish through a low-temperature abrading process that exposes undisturbed base metal, to help produce a long-wearing surface
  • Grit size ranges from 120 to 320; higher grit numbers are finer, to help create a smooth surface finish
  • Order by actual bore size as the tool is produced oversized
  • Silicon carbide is more aggressive and cuts faster than aluminum oxide

Product Description

Flex-Hone GBD-series abrasive bead style brushes for block cylinders or liners have globe-shaped abrasive points on an independent suspension for self-centering, self-aligning to the bore, and self-compensating for wear. This reduces set-up time and costs and the need for special operator training, as well as ensuring precise control of finish parameters. The resilient, flexible honing tool has a soft cutting action to create a plateau finish, where surface irregularities are reduced, while retaining a cross-hatch suitable for oil retention; the plateau finish increases the bearing area of the surface. Order by actual bore size as the tool is produced oversized.

Using the Flex-Hone low-temperature abrading process exposes undisturbed base metal, to help produce a long-wearing surface by removing cut, torn, and folded metal. The final surface of the metal part is optically smooth and has significantly reduced fragmented, amorphous, or smeared metal from previous operations. Cylinder hones are suitable for use deglazing, surface finishing, and deburring on cylinders, as well as cross hole deburring, port radiusing, and edge blending on items such as firearm chambers, musical instruments, combustion chambers, air compressors, pumps, valve bodies, valve guides, and brake cylinders. Use by hand or in NC/CNC equipment. NC-style tools can be used on both the older Numerical Control (NC) machines, which are programmed using physical media such as magnetic tape, and the newer CNC (Computer Numerical Control) machines, which are programmed using computers.

Abrasives are used for a variety of applications from shaping a part to fine finishing, depending on the grit size. Low grit numbers like 40 are coarse and are used for removing excess material and shaping a part. High grit numbers like 400 are fine and help to create a smooth surface finish. Silicon carbide is a sharp, aggressive grain that offers high penetration, fast cutting, and high material removal even under light pressure. It is commonly used with softer materials like brass, plastics, and rubber, and abrasive materials like glass and enamel, but can wear out faster than aluminum oxide when used on wood.

Brush Research Manufacturing Co., headquartered in Los Angeles, manufactures tools in the United States, and has been in operation since 1958. The company specializes in ball hone abrasives and industrial brushes for honing, a type of precision surface finishing. Brush Research meets ISO 9000 certification for quality.
