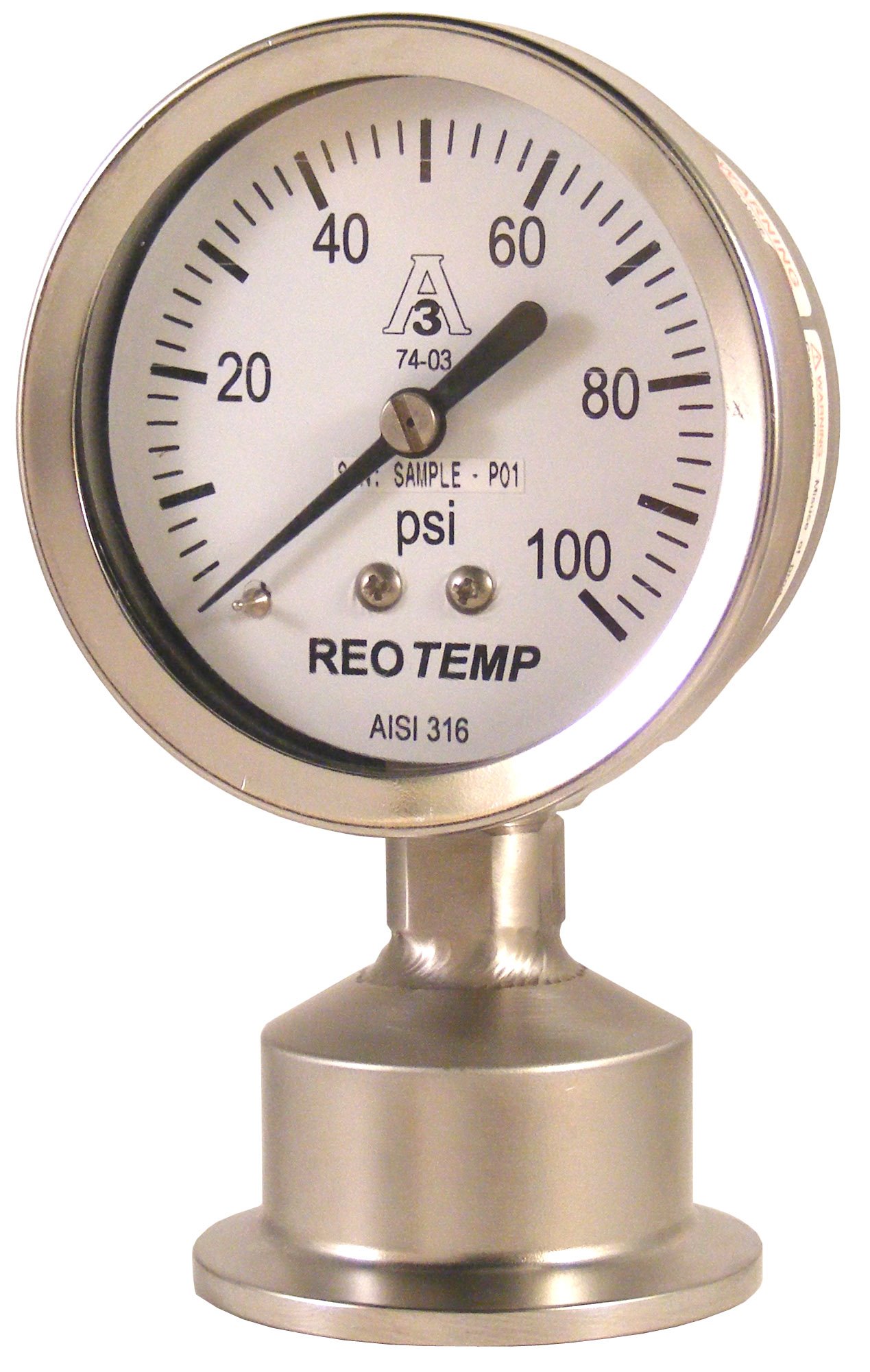

REOTEMP SG Series Sanitary Pressure Gauge

Be the first to review this item

Product Specifications
Brand Name
REOTEMP
Case
Stainless Steel 304
Manufacturer Series Number
SG Series
System of Measurement
Inch

0 items added

To add items,
choose from the table below



These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 21? Order in-stock items in the next 53 minutes and choose One-Day Shipping at checkout.

  • Share
Currently showing 16 of 16
Dial Size Pressure Range Connection Mount Accuracy Wetted Parts Fill Material Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

 Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

 Price Quantity
All All All All All All All All
Currently showing 16 of 16
2-1/2" 0-160 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG25CTC15P19 B006TLUMDY In Stock (3) $182.38
2-1/2" 0-160 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG25ATC15P19 B006TLUGY4 In Stock (1) $159.82
2-1/2" 0-300 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG25ATC15P21 B006TLUJ6O In Stock (1) $159.78
2-1/2" 0-100 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG25CTC15P18 B006TLUL0S In Stock (3) $182.38
2-1/2" 0-300 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG25CTC15P21 B006TLUP7W In Stock (2) $173.97
2-1/2" 0-200 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG25CTC15P20 B006TLUO78 In Stock (3) $182.38
2-1/2" 0-200 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG25ATC15P20 B006TLUI9M In Stock (2) $261.80
2-1/2" 0-100 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG25ATC15P18 B006TLUF9A In Stock (3) $261.80
4" 0-300 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG40ATC15P21 B006TLUVIA In Stock (5) $175.52
4" 0-160 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG40CTC15P19 B006TLUXUG In Stock (3) $204.94
4" 0-300 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG40CTC15P21 B006TLUZMM In Stock (3) $204.20
4" 0-100 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG40ATC15P18 B006TLUSJ2 In Stock (2) $198.47
4" 0-160 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG40ATC15P19 B006TLUTDC In Stock (1) $198.47
4" 0-100 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG40CTC15P18 B006TLUWX4 In Stock (3) $204.91
4" 0-200 psi 1-1/2" Tri-Clamp Bottom 1.50% Stainless Steel 316 Glycerin SG40ATC15P20 B006TLUUEA In Stock (3) $197.73
4" 0-200 psi 1-1/2" Tri-Clamp Lower Back 1.50% Stainless Steel 316 Glycerin SG40CTC15P20 B006TLUYU0 In Stock (3) $204.91

Key Features

  • Quick connecting Tri-clamp design
  • Fast removal and installation of instruments, to allow flushing or changing the process media
  • Ideal for clean-in-place, or equipment washdown
  • Designed to meet 3-A sanitary standards
  • Comes with 3-A certification

Product Description

Reotemp’s sanitary pressure gauges are specially designed to meet the demanding sanitary requirements of the brew industry. The quick connecting Tri-clamp design allows for fast removal and installation of instruments. Ideal for clean-in-place applications or equipment washdowns. The SG series is designed to meet 3-A sanitary standards. All welded 316 stainless steel tube, socket, seal, and diaphragm. Accuracy: standard seal: 1.5 percent for ranges 100 psi and above 2 percent for compound and below 100 psi ranges. Fractional seal: ranges 60 psi and above 2.5 percent up scale, up to 4 percent downscale. Made in the USA.

How can we improve our Product Description?

Customer Reviews

There are no customer reviews yet.

Be the first to review this item
