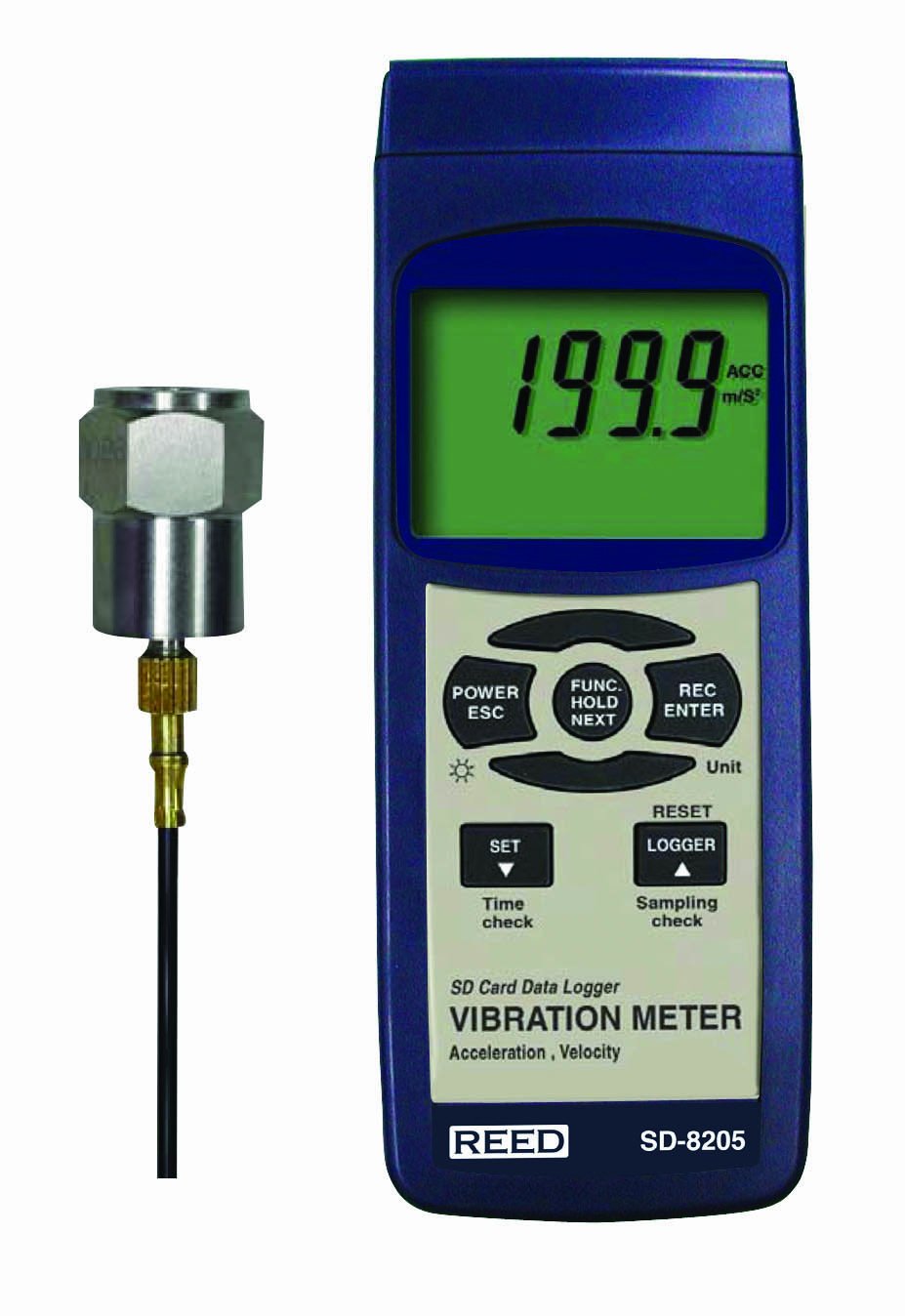

Reed SD-8205 Vibration Meter and Data Logger, 0.1 mm/s Resolution, +/-5 Percent Accuracy, 0.5 to 199.9 mm/s Velocity Range

Be the first to review this item

ASIN B008S0LD00

Specifications for this item
Number of Items
1
Overall Height
38  millimeters
Overall Width
76  millimeters
Part Number
SD-8205
Resolution
0.1 mm/s
Item Weight
2 pounds
Brand Name
Reed
Measurement Accuracy
+/-5%
Power Source Type
1.5 V Battery
UNSPSC Code
41114624
Display
LCD
Overall Length
203  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 11 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures vibration levels in machinery by measuring velocity and acceleration
  • Frequency range meets ISO 2954 standards
  • Unique vibration sensor with magnetic base
  • RMS, peak hold, and max/min record
  • Measures 76mm width by 203mm height by 38mm depth

Package Details

Shipping Weight: 2.5 pounds
Package Size: 11.2 x 9.9 x 3 inches

Product Description

Vibration Meter and Data Logger. Measures vibration levels in machinery by measuring velocity and acceleration. Frequency range meets ISO 2954 standards. Unique vibration sensor with magnetic base. RMS, Peak hold, and minimum/maximum record. Metric or Imperial measurement units. Real time data logger with integral 2GB SD memory card (optional). Just plug the SD card into the computer and it downloads directly to excel. RS-232 and USB computer interface. Easy to read LCD with backlight. Auto or manual power off. Includes vibration sensor with cable, magnetic base and hard carrying case. Velocity Range: 0.5 to 199.9 mm/s; 0.05 to 19.99 cm/s; 0.02 to 7.87 in/s. Resolution: 0.1 mm/s; 0.01 cm/s; 0.01 in/s. Accuracy: +/-(5 percent + 2 digit). Acceleration Range: 0.5 to 199.9 m/s2; 0.05 to 20.39 g; 2 to 656ft/s2. Resolution: 0.1m/s2; 0.01 g; 1 ft/s2. Accuracy: +/-(5 percent + 2 digit). Auto sampling time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds. Memory Card: SD memory card, 1 GB to 16 GB. Data output: USB/RS232 pc computer interface. Power supply: 6 x 1.5V UM3/AA batteries. Measures 76mm width by 203mm height by 38mm depth; 37 length by 16mm diameter probe and 1.2 meter cable length.
