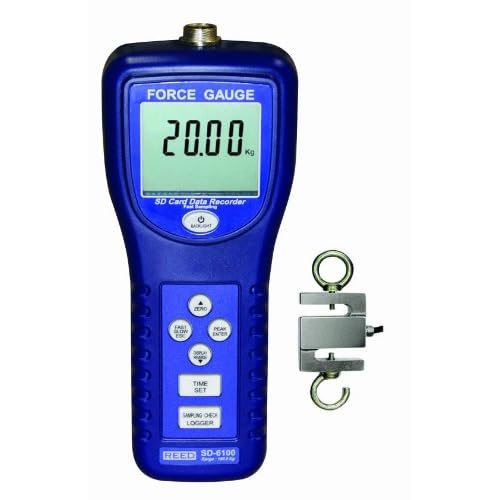

Reed SD-6100 Force Gauge and Data Logger, 100 kg Capacity, 0.15 kg Resolution, +/-5% Accuracy

Be the first to review this item

ASIN B008RZVZPO

Product Specifications
Display
Backlit LCD
Item Weight
2.5 pounds
Measurement Accuracy
+/-5%
Mfr Part #
SD-6100
Number of Items
1
Overall Height
45  millimeters
Overall Length
215  millimeters
Overall Width
90  millimeters
Range
100 kilograms
Resolution
0.15 kg
Rotation
100 kg Capacity, 0.15 kg Resolution
Specification for this product family (See all  products)
UNSPSC Code
41111934
Brand Name
Reed

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 22 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measures tension and compression
  • Fast/Slow AD selection
  • RS-232 and USB computer interface
  • Data record in peak hold or normal mode
  • Measures 90mm width by 215mm height by 45mm depth

Package Details

Shipping Weight: 3.35 pounds
Package Size: 11.3 x 9.9 x 3 inches

Product Description

Measures tension and compression. Fast/slow ad selection. Data record in peak hold or normal mode. Full capacity tare (zero) capability. Force is measured in kg, lb or newtons. Display is reversible so that it always legible regardless of direction. Real time data logger with integral 2GB SD memory card (optional). Just plug the SD card into the computer and it downloads directly to EXCEL. RS-232 and USB computer interface. Easy to read lcd with backlight. Auto or manual power off. Includes separate load cell sensor with 2 hooks and cable and carrying case. Measuring Capacity: 100.0 kg / 220.5 lb / 980.6 N. Resolution: 0.15 kg / 0.02 lb / 0.02 N. Accuracy: +/-(5 percent + 2 digit.). Full Scale Deflection: Less than 1mm. Sampling time: normal: 1 second to 8 hours; peak hold: 10 to 500 ms. Memory Card: SD memory card, 1 GB to 16 GB. Data output: USB/RS232 pc computer interface. Power supply: 6 x 1.5V UM3/AA batteries. Measures 90mm width by 215mm height by 45mm depth. One year warranty.
