Reed GS-5800 Ultrasonic Leak Detector with BNC Connection

Be the first to review this item

ASIN B008S0O0TQ

Specifications for this item
Number of Items
1
Overall Width
2-3/4  inches
Part Number
GS-5800
Resolution
0.1mV
Item Weight
1 pounds
Brand Name
Reed
Power Source Type
2 x 1.5V "AA" Battery
UNSPSC Code
41111809
Overall Length
5-3/8  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 21 hrs 17 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Programmable storage rates from 8 per second to 1 per day
  • 3 User selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Includes free Data View software for data storage, real-time waveform display, analysis and report generation

Package Details

Shipping Weight: 1.9 pounds
Package Size: 11.5 x 9.9 x 2.8 inches

Product Description

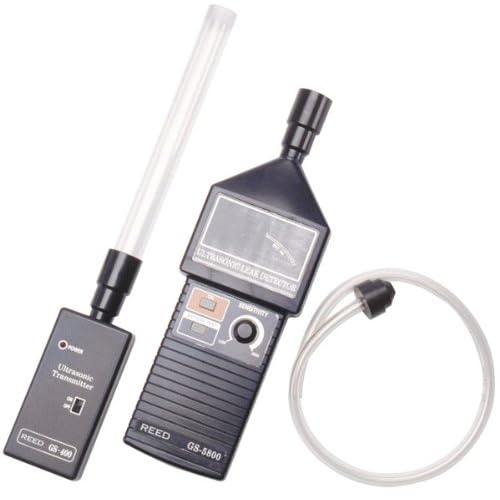

Complete with ultrasonic leakage detector, rubber bottle plug with plastic tubing, 1/2" PVC pipe assembly for attaching to top of detector, 9V battery, carrying case and Ultrasonic Transmitter (sold separately). Leakage level is displayed by an LED bargraph and audible. Programmable storage rates from 8 per second to 1 per day. 3 User selectable storage modes. Stores up to 240,000 measurements in non-volatile memory. Powered by standard Alkaline batteries. Lightweight, compact, fits anywhere. 5 LED Indicators quickly and clearly display logger status. Includes FREE Data View software for data storage, real-time waveform display, analysis and report generation. Isolated USB communication. USB cable included 50V Cat. III. Channels: one. Input connection: BNC. Current probe output voltage range: 0 to 1V (probe dependent). Resolution: 0.1mV. Accuracy: (50/60Hz) 0 to 10mV: unspecified 10 to 50mV: +/- (0.5 percent of reading + 1mV) 50 to 1000mV: +/- (0.5 percent of Reading + 0.5mV). Sample rate 64 samples/cycle. Storage rate: programmable from 125mS to 1 day. Storage modes: start/stop, FIFO and extended recording mode (XRM). Recording length: 15 minutes to 8 weeks, programmable using Data View. Memory: 240000 measurements (512KB) the recorded data is stored in nonvolatile memory and retained even if the battery is low or removed. Communication: USB 2.0 optically isolated. Power source: 2 x 1.5V AA-cell alkaline battery. Battery life: 100 hrs to >45 days (dependent on storage rate/recording length). Maximum conductor size current: probe dependent. Case UL94-V0. Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz). Shock IEC 68-2-27 (30G). Drop IEC 68-2-32 (1m). Operating temperature: 14 to 122 degree F. Storage temperature: -4 to 140 degree F. Measures 5-3/8" length by 2-3/4" width by 1-17/64" height.
