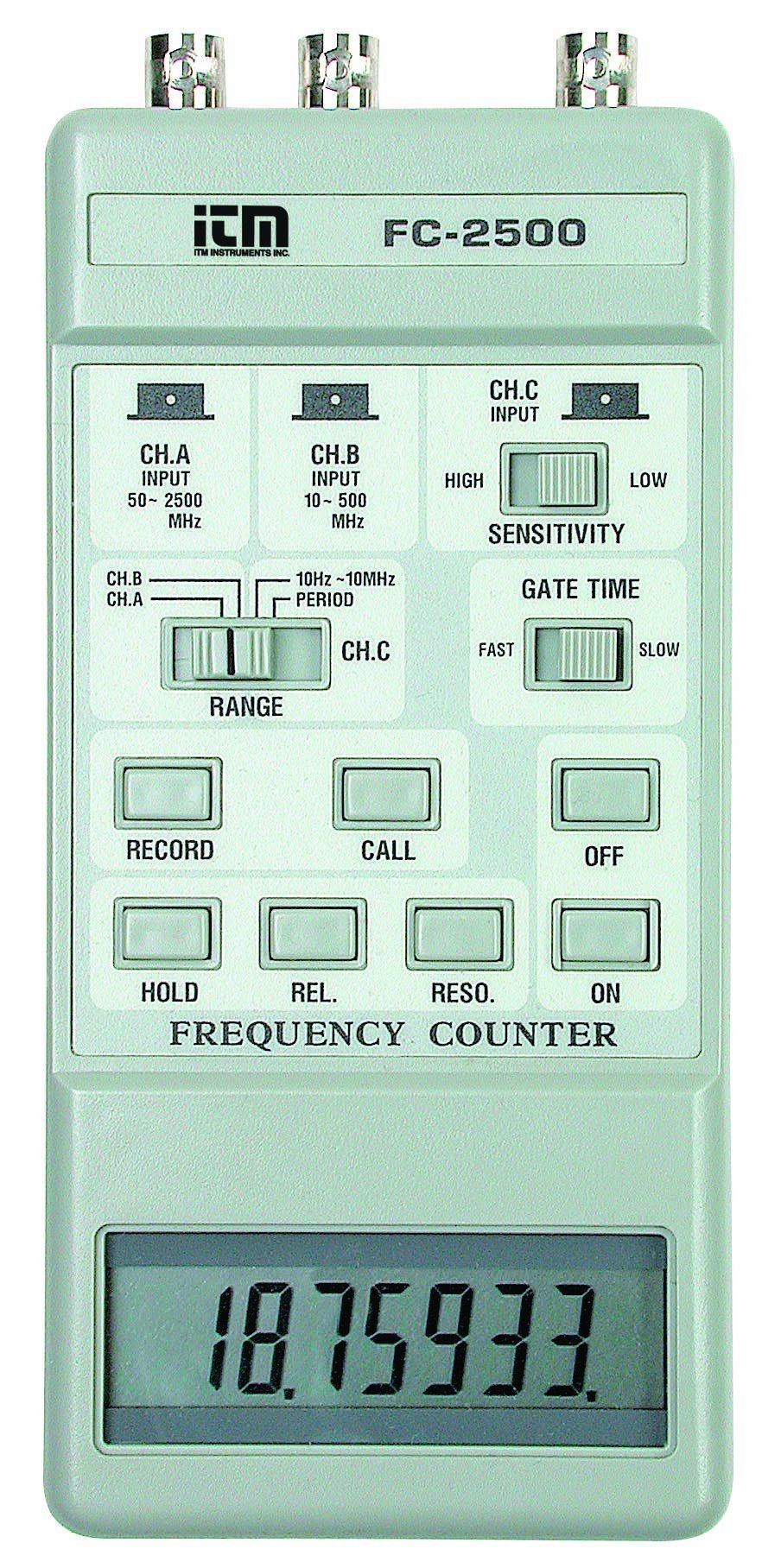

Reed FC-2500 Triple Range Frequency Counter, 2.5GHz Maximum Frequency, 0.1 Hz Resolution

Be the first to review this item


Specifications for this item
Number of Items
Part Number
Brand Name

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Microprocessor counter measures to 2.5 gigaHertz
  • High sensitivity in low/high ranges
  • Maximum and minimum average readings
  • 0.5" Large 8-digit LCD display
  • Data hold; auto power off; overload indication

Package Details

Shipping Weight: 0.8 pounds
Package Size: 10.5 x 6.4 x 2.7 inches

Product Description

Microprocessor counter measures to 2.5GHz. High sensitivity in low/high ranges. Maximum and Minimum average readings. Relative frequency measurements. Large 0.5" 8-digit LCD display. Period display values from 10Hz to 10MHz. Data hold; auto power off; overload indication. Gate time selector (fast/slow sampling time). Range (frequency): channel A: 50 MHz to 2500MHz, channel b: 10 MHz to 500 MHz, channel c: 10 Hz to 10MHz. Period: 10 Hz to 10 MHz. Maximum resolution: 0.1 Hz. Sensitivity: cannel A, B, C: < 50 mV rms. Input impedance: channel A and B: 50O typical, Channel C: 1MO/30pF typical, AC coupled.
