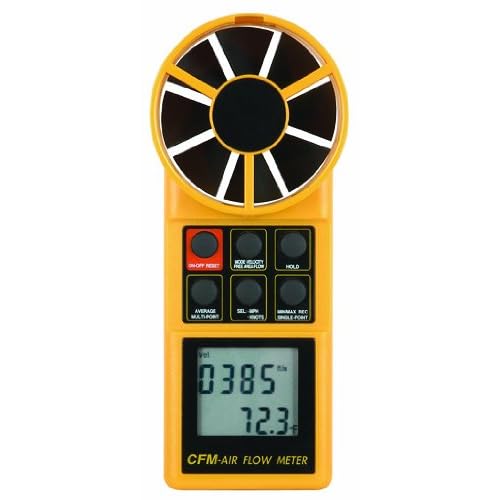

Reed 8906 Digital Vane Thermo-Anemometer, 0.4 to 35 m/s Velocity, -10 to +50° C Temperature Range

Be the first to review this item

ASIN B008RZDCM8

Specifications for this item
Number of Items
1
Overall Width
2-3/4  inches
Part Number
8906
Temperature Range
-10/50  Degrees Celsius
Resolution
0.01 m/s
Item Weight
0.46 pounds
Item Depth
1-25/64 inches
Brand Name
Reed
Power Source Type
9V Battery
UNSPSC Code
41114401
Display
LCD
Overall Length
7-3/32  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 2 days 7 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Vane anemometer measures air velocity in m/s, fpm, knots, mph, and km/h, and also measures air temperature in degrees C and F
  • Calculates air flow volume in cfm when area dimensions are keyed in
  • Single-point function records and displays the minimum, maximum, and average readings
  • Multi-point average function displays the average value of up to eight recorded readings
  • Four-digit LCD shows air velocity and temperature readings simultaneously

Package Details

Shipping Weight: 1.25 pounds
Package Size: 9.9 x 6.8 x 3.1 inches

Product Description

The Reed 8906 vane anemometer measures air velocity in m/s, fpm, knots, mph, and km/h and air temperature in degrees C and F; calculates air flow volume; and has digital functions including single-point and multi-point average for analyzing air flow. When the dimensions of the area being measured are keyed in, the meter can calculate and display air flow volume in cfm. Single-point function records and displays minimum and maximum readings and can display a continuous moving average of air velocity for up to two hours. Multi-point average function records up to eight readings and displays the average value. The hold function freezes a reading on the display to aid documentation of readings. An RS-232 serial port interface output allows connection to a compatible PC for storing data (interface cable sold separately). The four-digit LCD readout shows air velocity and temperature readings simultaneously. It operates on a single 9V battery (included), turns off automatically after 20 minutes of non-use to conserve battery life, and has a low-battery indicator. This anemometer is used for monitoring air flow and temperature in ductwork, spray booths, and exhaust hoods, among other applications.

Specifications
Air velocity range0.4 to 35 m/s; 80 to 6,900 fpm; 0.8 to 68 knots; 0.9 to 78 mph; 1.4 to 126 km/h
Air velocity resolution0.01 m/s; 1 fpm; 0.1 knots; 0.1 mph; 0.1 km/h
Air velocity accuracy+ or - 2% of full scale
Air temperature range-10 to +50 degrees C/14 to 122 degrees F
Operating environment-10 to +50 degrees C at up to 90% relative humidity
Power(1) 9V battery (included)
Vane diameter70 mm/2-7/8 inches
Dimensions (H x W x D)181 x 76 x 45 mm/7.1 x 2.75 x 1.4 inches
Weight210 g/7.4 oz.

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Anemometers, also called wind meters, measure air velocity and are most commonly used for weather monitoring to determine wind speed and for HVAC applications to determine air flow within ducts. In addition to air velocity, anemometers may measure wind direction, air pressure, air flow volume, air temperature, humidity, light, and other properties. The most common types of anemometer are cup, vane, hot-wire, and Pitot tube. Cup and vane anemometers calculate air velocity based on the number of rotations of the cups or vane. Hot-wire anemometers calculate air velocity by measuring the change in electrical resistance as air flow cools a heated wire. Pitot tube anemometers measure air pressure within a tube and calculate air velocity based on the difference in pressure between the air inside and outside of the tube. Many anemometers have digital readouts and can display air velocity readings in different units of measure, such as meters per second (m/s), feet per minute (ft./min. or fpm), knots, miles per hour (mph), and kilometers per hour (km/h).

Reed Instruments manufactures test and measurement equipment such as pressure gauges, electrical testers, temperature and humidity instrumentation, and inspection instruments. The company, founded in 2004, is headquartered in Wilmington, NC.

What's in the Box?
  • Reed 8906 vane anemometer
  • (1) 9V battery
  • Hard carrying case
  • Instructions
