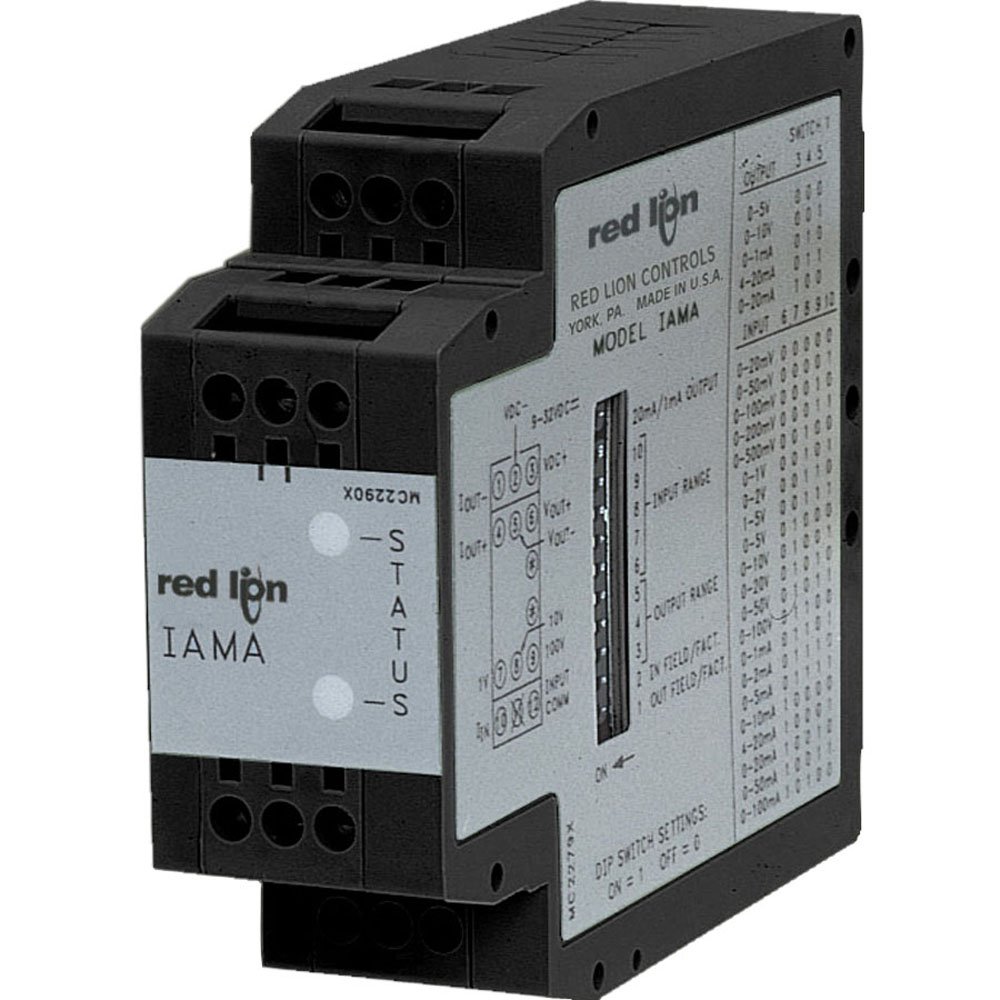

Red Lion IAMA 3-Way Isolator Linear Universal Signal Conditioning Module, 11-36 VDC

Be the first to review this item

ASIN B0090NVJ1C

Specifications for this item
Number of Items
1
Part Number
IAMA3535
Temperature Range
-20/65  Degrees Celsius
Brand Name
Red Lion
Price:
$184.50
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 21 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 3-Way isolation of analog signals
  • Universal conversion module - inputs and outputs selected via dip switch settings
  • Over 100 input and output analog conversion combinations
  • 11 To 36 VDC and 24 VAC module power
  • cULus Listed, CSA Certified and CE Marked

Package Details

Shipping Weight: 0.35 pounds
Package Size: 5.5 x 4.9 x 1.3 inches

Product Description

The IAMA Universal Signal Conditioning Module Series can isolate and convert over 100 combinations of analog signal ranges. The IAMA3535 converts and transmits signals linearly proportional to the input. By utilizing the Field mode of calibration, the user can customize the input and output scaling for odd applications, including reversal of the output relative to the input. In addition to the conversion capabilities, the IAMA modules feature optically isolated Input/Output signal circuits and transformer isolated Power to Input, Power to Output circuits. The modules’ overall full scale accuracy typically exceed 0.05 percent depending upon range selection and scaling. The microprocessor based design provides ease of field scaling and the onboard E2PROM stores scaling values for future recall. Both models come factory precalibrated for all input and output ranges. Factory or custom field scaling can be selected by a simple mode switch change. The IAMA can be factory recalibrated in the field if desired. The modules’ environmental operating temperature range is -20 degree C to +65 degree C. DIN rail mounting saves time and panel space. The units are equipped with universal mounting feet for attachment to standard DIN style rails, including top hat profile rail according to EN50022 - 35x7.5 and 35 x 15 and G profile rail according to EN50035-G32. Power: 11 to 36 VDC, 3 W max. or 24 VAC, Ohm10 percent , 50/60 Hz, 4.8 VA max. Zero/span adjustments: Digital (DIP switch transition). Max input signal: current input: 110 mA DC, 1.1 VDC, Voltage Inputs: Terminal 7- 1 VDC +10 percent, Terminal 8- 10 VDC +10 percent, Terminal 9-100 VDC +10 percent. Input resistance: current: 10 Ohm, voltage: greater than 100 K. Input protection: surge suppressor diodes. Max output current: current output: 22 mA, voltage output: 10 mA. load resistance: current output: Ohm 600 Ohm, voltage output: Ohm 1 K Ohm. CE, UL and RoHS approvals.
