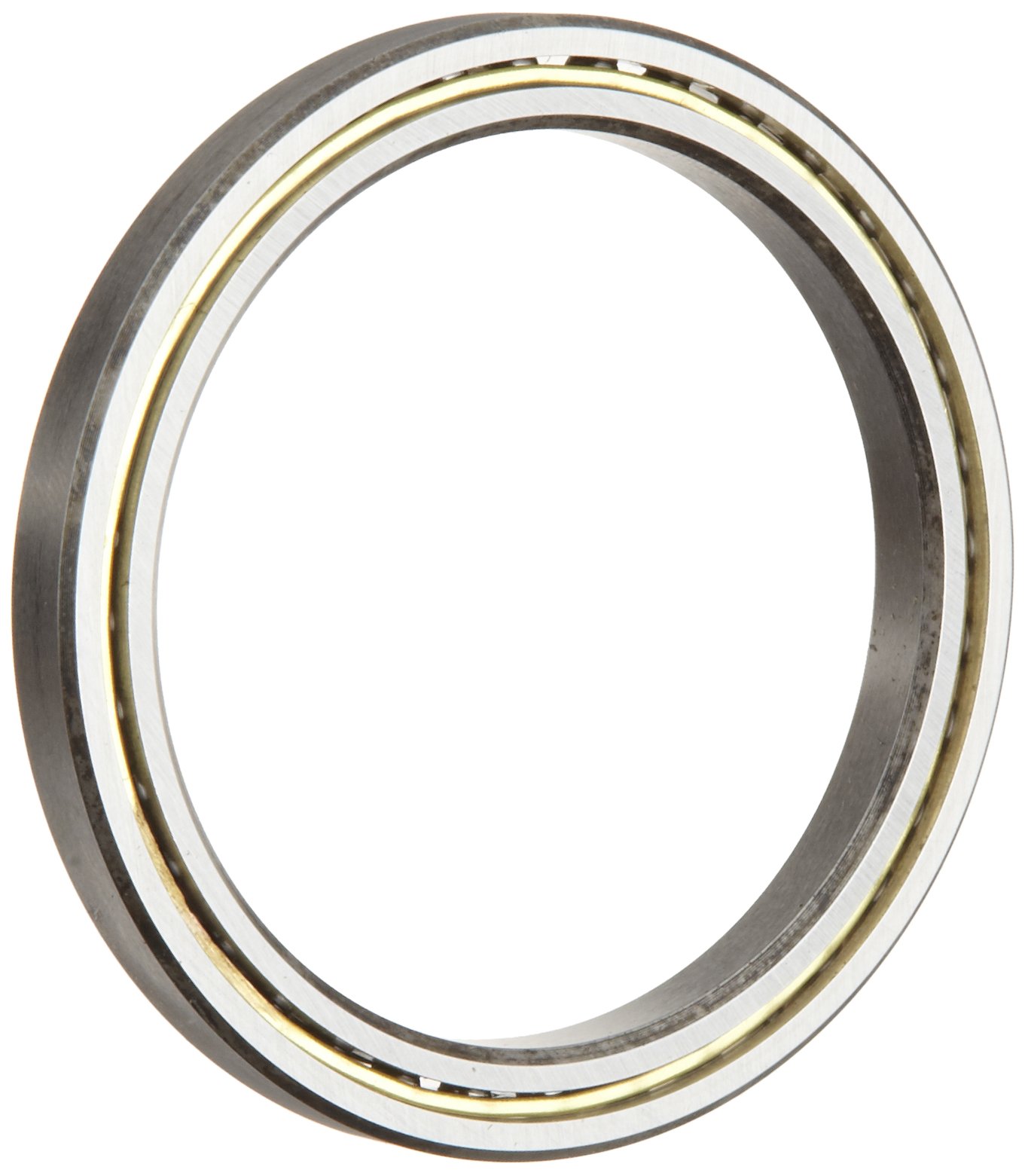

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

RBC Thin Section Ball Bearing, Unsealed, Angular A-Type

Be the first to review this item

Product Specifications
UNSPSC Code
31171504
Brand Name
RBC Thin Section Ball Bearings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Mar 31? Order in-stock items in the next 1 day 11 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 42 Next 20 »
Bore diameter string Outside diameter Item width string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 42 Next 20 »
1 inches 1.375 inches 0.187 inches B0051PTVAE yes $140.79 Buy Options
1.5 inches 1.875 inches 0.187 inches B0051PTW0I yes $152.61 Buy Options
11 inches 12 inches 0.50 inches B0051PUN7O Usually ships in 1 to 2 months $1,312.35 Buy Options
12 inches 13 inches 0.50 inches B0051PUNT2 Usually ships in 1 to 2 months $1,320.41 Buy Options
12 inches 14 inches 1 inches B0051PV49A Usually ships in 1 to 2 months $1,855.58 Buy Options
14 inches 15.5 inches 0.75 inches B0051PUXL0 Usually ships in 1 to 2 months $2,516.34 Buy Options
14 inches 16 inches 1 inches B0051PV54Y Usually ships in 1 to 2 months $3,061.29 Buy Options
16 inches 18 inches 1 inches B0051PV8F0 Usually ships in 1 to 2 months $3,736.58 Buy Options
18 inches 20 inches 1 inches B0051PV8W8 yes $5,003.35 Buy Options
2 inches 2.5 inches 0.25 inches B0051PTI3Y Usually ships in 24 hours $294.61 Buy Options
2 inches 2.625 inches 0.312 inches B0051PTYXI yes $263.84 Buy Options
2.5 inches 3 inches 0.25 inches B0051PTKS2 yes $252.46 Buy Options
2.5 inches 3.125 inches 0.312 inches B0051PTZUA yes $61.91 Buy Options
20 inches 22 inches 1 inches B0051PVA12 Usually ships in 1 to 2 months $4,639.10 Buy Options
3.5 inches 4 inches 0.25 inches B0051PTLVS yes $277.24 Buy Options
3.5 inches 4.125 inches 0.312 inches B0051PU19E yes $338.78 Buy Options
4 inches 4.5 inches 0.25 inches B0051PTMUI yes $133.36 Buy Options
4 inches 4.625 inches 0.312 inches B0051PU2BG Usually ships in 1 to 2 months $366.46 Buy Options
4 inches 5 inches 0.50 inches B0051PUFZ4 Usually ships in 1 to 2 months $582.21 Buy Options
4.25 inches 5.25 inches 0.50 inches B0051PUGXK Usually ships in 1 to 2 months $560.26 Buy Options

Key Features

  • A-type angular contact ball bearing for use where space is limited and moment loads are low
  • Single-row angular contact ball bearing supports both radial and axial loads
  • 52100 steel races and bearing balls for durability and resistance to deformity under heavy loads
  • Conforms to ABEC 1F precision standard for performance within a narrow range of variation
  • Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants

Product Description

This RBC A-type thin-section angular contact ball bearing is unsealed and is intended for use where space is limited and moment loads are low. The single-row angular contact ball bearing supports both radial and axial loads. The 52100 steel races and bearing balls are durable and resist deformity under loads and the bearing is manufactured to Annular Bearing Engineering Committee (ABEC) 1F precision tolerances related to the bearing bore, outer diameter, radial runout, axial runout and radial play. A cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has an open configuration for lubrication in place and is intended for use in applications with little exposure to dirt, grime, debris, and other contaminants. This thin-section radial ball bearing is suitable for use where space, load, and weight requirements determine the choice of bearing, such as in machine tools.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
