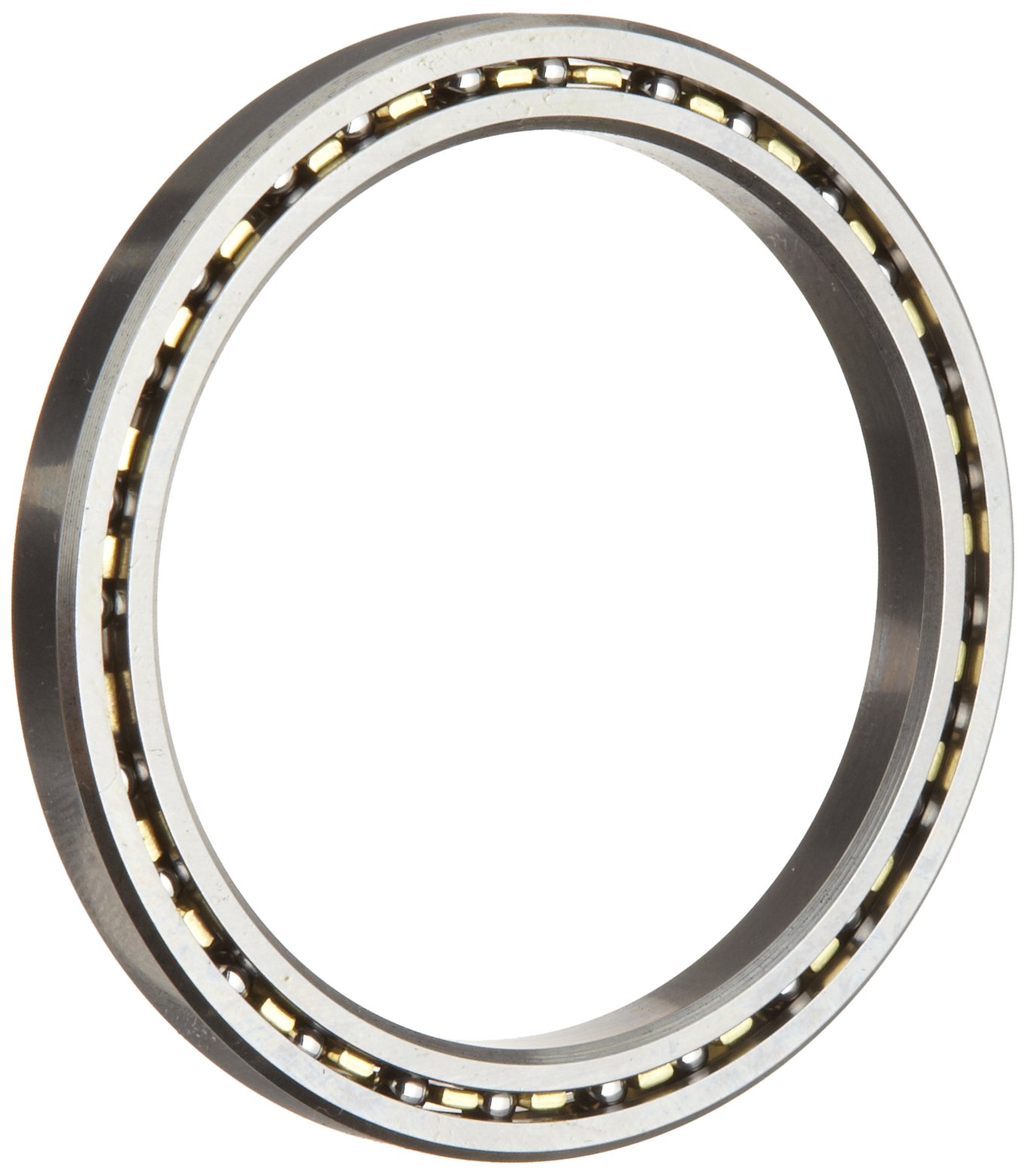

RBC Thin Section Ball Bearing, Unsealed, 4-Point Contact X-Type

Be the first to review this item

Product Specifications
UNSPSC Code
31171504
Brand Name
RBC Thin Section Ball Bearings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 14 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 39 Next 19 »
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 39 Next 19 »
KA025XP0 2.5" 3" 0.25" 4360 rpm 830 lbs 583 lbs B0051PTL8G yes $180.04 Buy Options
KA040XP0 4" 4.5" 0.25" 2820 rpm 1290 lbs 756 lbs B0051PTN7K yes $226.56 Buy Options
KA045XP0 4.5" 5" 0.25" 2530 rpm 1440 lbs 809 lbs B0051PTO88 Usually ships in 1 to 2 months $364.82 Buy Options
KA050XP0 5" 5.5" 0.25" 2290 rpm 1590 lbs 859 lbs B0051PTP0A yes $384.82 Buy Options
KA065XP0 6.5" 7" 0.25" 1780 rpm 2050 lbs 1001 lbs B0051PTQMC Usually ships in 1 to 2 months $434.18 Buy Options
KA090XP0 9" 9.5" 0.25" 1300 rpm 2810 lbs 1212 lbs B0051PTTRO Usually ships in 1 to 2 months $667.73 Buy Options
KA120XP0 12" 12.5" 0.25" 980 rpm 3720 lbs 1433 lbs B0051PTUL4 Usually ships in 1 to 2 months $769.34 Buy Options
KAA15XL0 1.5" 1.875" 0.187" 7110 rpm 400 lbs 296 lbs B0051PTWL2 yes $133.47 Buy Options
KAA17XL0 1.75" 2.125" 0.187" 6190 rpm 460 lbs 319 lbs B0051PTYRO yes $150.83 Buy Options
KB020XP0 2" 2.625" 0.312" 5190 rpm 930 lbs 758 lbs B0051PTZFK yes $197.61 Buy Options
KB025XP0 2.5" 3.125" 0.312" 4270 rpm 1140 lbs 848 lbs B0051PU04U yes $191.06 Buy Options
KB035XP0 3.5" 4.125" 0.312" 3150 rpm 1540 lbs 1014 lbs B0051PU1Z8 yes $231.89 Buy Options
KB042XP0 4.25" 4.875" 0.312" 2630 rpm 1830 lbs 1120 lbs B0051PU3YM Usually ships in 1 to 2 months $366.16 Buy Options
KB050XP0 5" 5.625" 0.312" 2260 rpm 2150 lbs 1236 lbs B0051PU63K Usually ships in 1 to 2 months $424.88 Buy Options
KB090XP0 9" 9.625" 0.312" 1290 rpm 3780 lbs 1732 lbs B0051PU91E Usually ships in 1 to 2 months $607.83 Buy Options
KC065XP0 6.5" 7.25" 0.375" 1750 rpm 3310 lbs 1851 lbs B0051PUDA6 Usually ships in 1 to 2 months $522.20 Buy Options
KC070XP0 7" 7.75" 0.375" 1630 rpm 3550 lbs 1931 lbs B0051PUE1O Usually ships in 1 to 2 months $532.86 Buy Options
KC090XP0 9" 9.75" 0.375" 1280 rpm 4510 lbs 2226 lbs B0051PUEO6 Usually ships in 1 to 2 months $715.30 Buy Options
KC100XP0 10" 10.75" 0.375" 1160 rpm 4990 lbs 2364 lbs B0051PUF9U Usually ships in 1 to 2 months $763.26 Buy Options
KC120XP0 12" 12.75" 0.375" 970 rpm 5950 lbs 2622 lbs B0051PUFT0 Usually ships in 1 to 2 months $939.60 Buy Options

Key Features

  • X-type 4-point contact ball bearing for use where space is limited and moment loads are high
  • Deep-groove geometry for high speeds and supporting both radial and axial loads
  • 52100 steel races and bearing balls for durability and resistance to deformity under heavy loads
  • Conforms to ABEC 1F precision standard for performance within a narrow range of variation
  • Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants

Product Description

This RBC X-type thin-section 4-point ball bearing is unsealed and is intended for use where space is limited and moment loads are high. The bearing has deep-groove geometry for applications that require high speeds and support both radial and axial loads. The 52100 steel races and bearing balls are durable and resist deformity under loads and the bearing is manufactured to Annular Bearing Engineering Committee (ABEC) 1F precision tolerances related to the bearing bore, outer diameter, radial runout, axial runout, and radial play. A cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has an open configuration for lubrication in place and is intended for use in applications with little exposure to dirt, grime, debris, and other contaminants. This thin-section radial ball bearing is suitable for use where space, load, and weight requirements determine the choice of bearing, such as in all-terrain vehicle axles.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
