RBC Thin Section Ball Bearing, Unsealed, Radial C-Type

Be the first to review this item

Product Specifications
UNSPSC Code
31171504
Brand Name
RBC Thin Section Ball Bearings

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 6 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 43 Next 20 »
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 43 Next 20 »
KA020CP0 2" 2.5" 0.25" 8890 rpm 680 lbs 393 lbs B0051PTJ9C yes $166.90 Buy Options
KA025CP0 2.5" 3" 0.25" 7270 rpm 830 lbs 442 lbs B0051PTKVO yes $175.24 Buy Options
KA040CP0 4" 4.5" 0.25" 4710 rpm 1290 lbs 571 lbs B0051PTMZ8 yes $220.92 Buy Options
KA047CP0 4.75" 5.25" 0.25" 4000 rpm 1520 lbs 629 lbs B0051PTOGK yes $396.95 Buy Options
KA055CP0 5.5" 6" 0.25" 3480 rpm 1750 lbs 685 lbs B0051PTPLY Usually ships in 1 to 2 months $384.71 Buy Options
KA065CP0 6.5" 7" 0.25" 2960 rpm 2050 lbs 754 lbs B0051PTQHW Usually ships in 1 to 2 months $418.04 Buy Options
KA070CP0 7" 7.5" 0.25" 2760 rpm 2200 lbs 787 lbs B0051PTQVS Usually ships in 1 to 2 months $458.05 Buy Options
KA075CP0 7.5" 8" 0.25" 2580 rpm 2350 lbs 820 lbs B0051PTRT4 Usually ships in 1 to 2 months $472.86 Buy Options
KA080CP0 8" 8.5" 0.25" 2420 rpm 2500 lbs 851 lbs B0051PTSZC yes $529.66 Buy Options
KA120CP0 12" 12.5" 0.25" 1630 rpm 3720 lbs 1078 lbs B0051PTU7S Usually ships in 1 to 2 months $743.59 Buy Options
KAA10CL0 1" 1.375" 0.187" 16840 rpm 290 lbs 188 lbs B0051PTVNG yes $126.86 Buy Options
KAA15CL0 1.5" 1.875" 0.187" 11850 rpm 400 lbs 225 lbs B0051PTWCQ yes $139.43 Buy Options
KAA17CL0 1.75" 2.125" 0.187" 10320 rpm 460 lbs 242 lbs B0051PTYJM yes $148.58 Buy Options
KB035CP0 3.5" 4.125" 0.312" 5250 rpm 1540 lbs 767 lbs B0051PU1NU yes $220.92 Buy Options
KB090CP0 9" 9.625" 0.312" 2150 rpm 3780 lbs 1304 lbs B0051PU8OM Usually ships in 1 to 2 months $563.37 Buy Options
KC045CP0 4.5" 5.25" 0.375" 4100 rpm 2340 lbs 1143 lbs B0051PU9VE Usually ships in 1 to 2 months $412.71 Buy Options
KC050CP0 5" 5.75" 0.375" 3720 rpm 2590 lbs 1209 lbs B0051PUALS Usually ships in 1 to 2 months $423.54 Buy Options
KC055CP0 5.5" 6.25" 0.375" 3400 rpm 2830 lbs 1274 lbs B0051PUAYA Usually ships in 1 to 2 months $462.23 Buy Options
KC070CP0 7" 7.75" 0.375" 2710 rpm 3550 lbs 1457 lbs B0051PUDRO Usually ships in 1 to 2 months $522.04 Buy Options
KD040CP0 4" 5" 0.50" 4440 rpm 3080 lbs 1755 lbs B0051PUGBM Usually ships in 1 to 2 months $318.04 Buy Options

Key Features

  • C-type radial ball bearing for use where space is limited
  • Deep-groove geometry for high speeds and supporting radial loads
  • 52100 steel races and bearing balls for durability and resistance to deformity under heavy loads
  • Conforms to ABEC 1F precision standard for performance within a narrow range of variation
  • Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants

Product Description

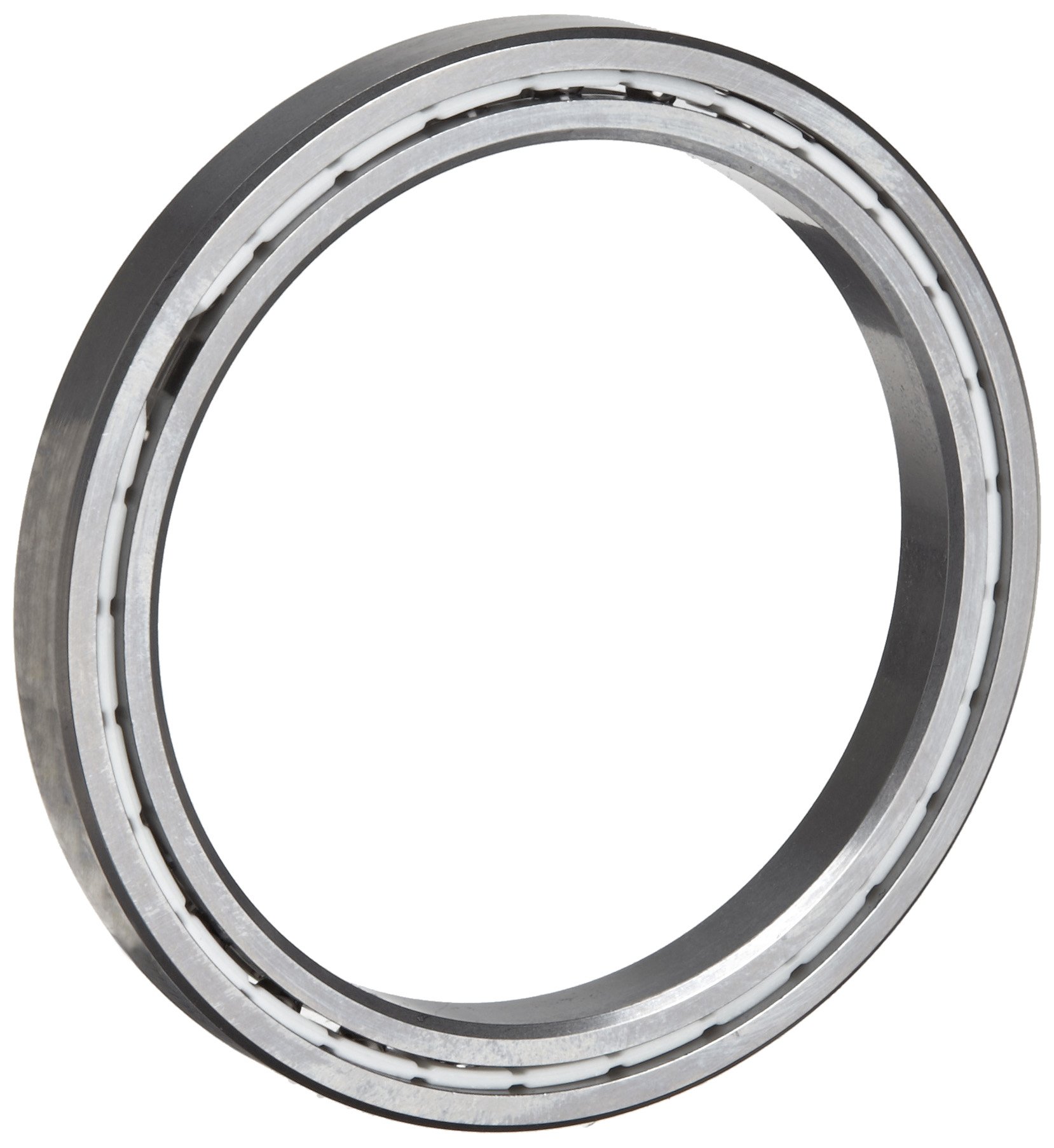

This RBC C-type thin-section radial ball bearing is unsealed and is intended for use where space is limited. The bearing has deep-groove geometry for applications that require high speeds and support radial loads. The 52100 steel races and bearing balls are durable and resist deformity under loads and the bearing is manufactured to Annular Bearing Engineering Committee (ABEC) 1F precision tolerances related to the bearing bore, outer diameter, radial runout, axial runout, and radial play. A cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has an open configuration for lubrication in place and is intended for use in applications with little exposure to dirt, grime, debris, and other contaminants. This thin-section radial ball bearing is suitable for use where space, load, and weight requirements determine the choice of bearing, such as in bicycle wheel hubs.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
