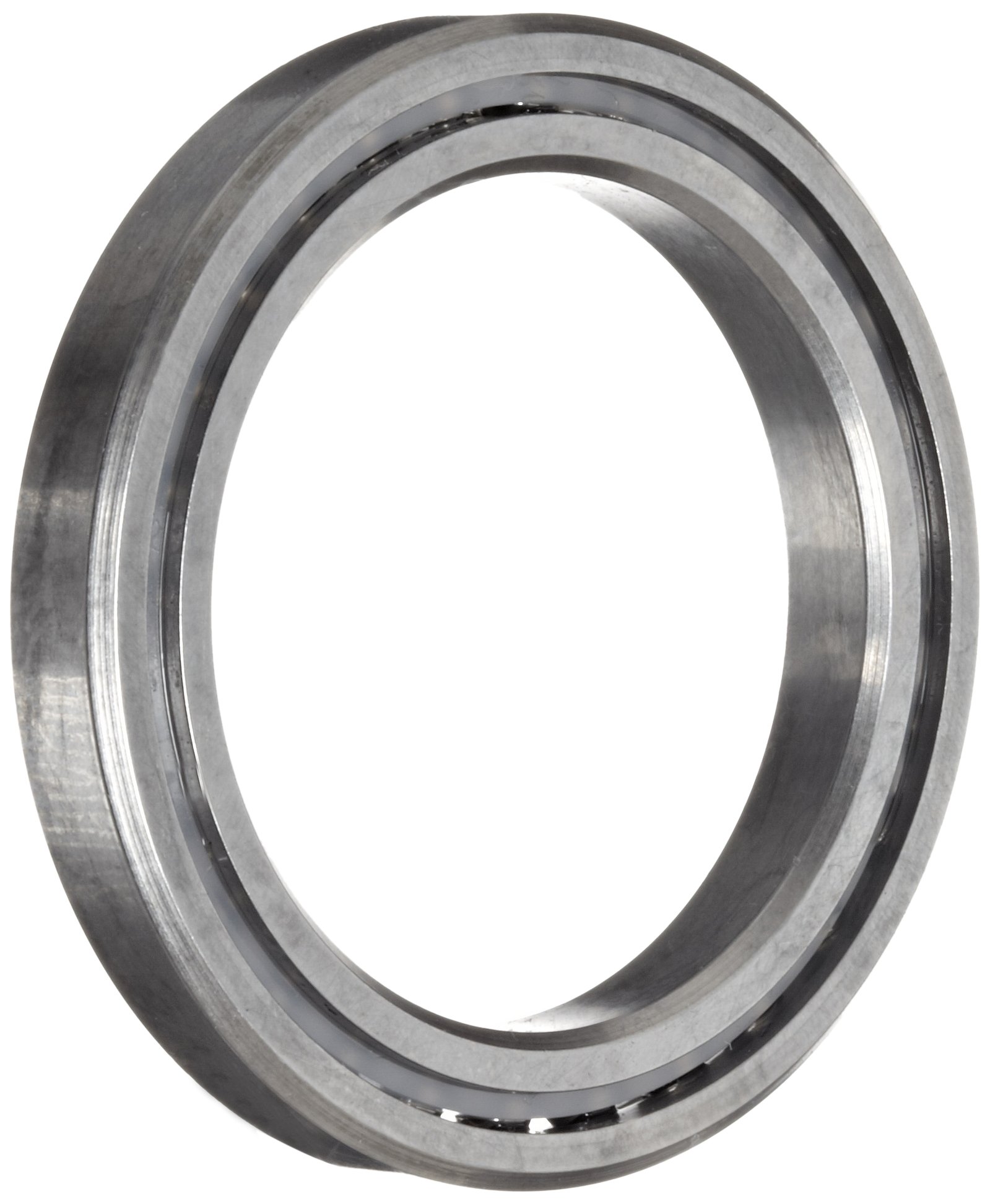

RBC SAA10AG0 Thin Section Ball Bearing, 440C Stainless Steel, Unsealed, Angular A-Type, 1" Bore x 1.375" OD x 0.25" Width

Be the first to review this item

ASIN B0051PVB5C

Specifications for this item
Overall Width
0.25  inches
Width Tolerance
+0.000 / -0.005  inches
Bore Diameter
1  inches
Bearing Number
SAA10AG0*RBC
Part Number
SAA10AG0
Brand Name
RBC Thin Section Ball Bearings
Max Rotational Speed
16840  RPM
Grade
440C
Number of Items
1
Bore Diameter Tolerance
+0.0000 / -0.0004  inches
Material Type
Stainless Steel
UPC
637400977764
Outside Diameter
1.375  inches
EAN
0637400977764
Static Load Capacity
340  pounds
Outside Diameter Tolerance
+0.0000 / -0.0005  inches
UNSPSC Code
31171504
Dynamic Load Capacity
194  pounds
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Sep 22? Order in-stock items in the next 23 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • This A-Type, angular contact ball bearing is best suited to applications with high axial loads. This bearing also works well in radial or combined radial-thrust applications but should never be used alone to support moment loads or reversing axial loading.
  • Thoroughly coated in MIL-PRF-3150 or MIL-PRF-6085 oil and drained of excess and vacuum sealed in a plastic bag for shipping.
  • Manufactured to ABEC 1F precision tolerances related to the bearing bore, outer diameter, radial runout, axial runout and radial play.
  • Static Thrust Rating 970 pounds, Dynamic Thrust Rating 960 pounds
  • This RBC thin section ball bearing can be advantageous in a design where space limitations, combined loading, or weight restrictions are proving to be challenging to overcome with a traditional ball bearing solution.

Package Details

Shipping Weight: 0.01 pounds
Package Size: 2.25 x 2.25 x 1 inches

Product Description

This A-Type, angular contact ball bearing is best suited to applications with high axial loads. This bearing also works well in radial or combined radial-thrust applications but should never be used alone to support moment loads or reversing axial loading.
