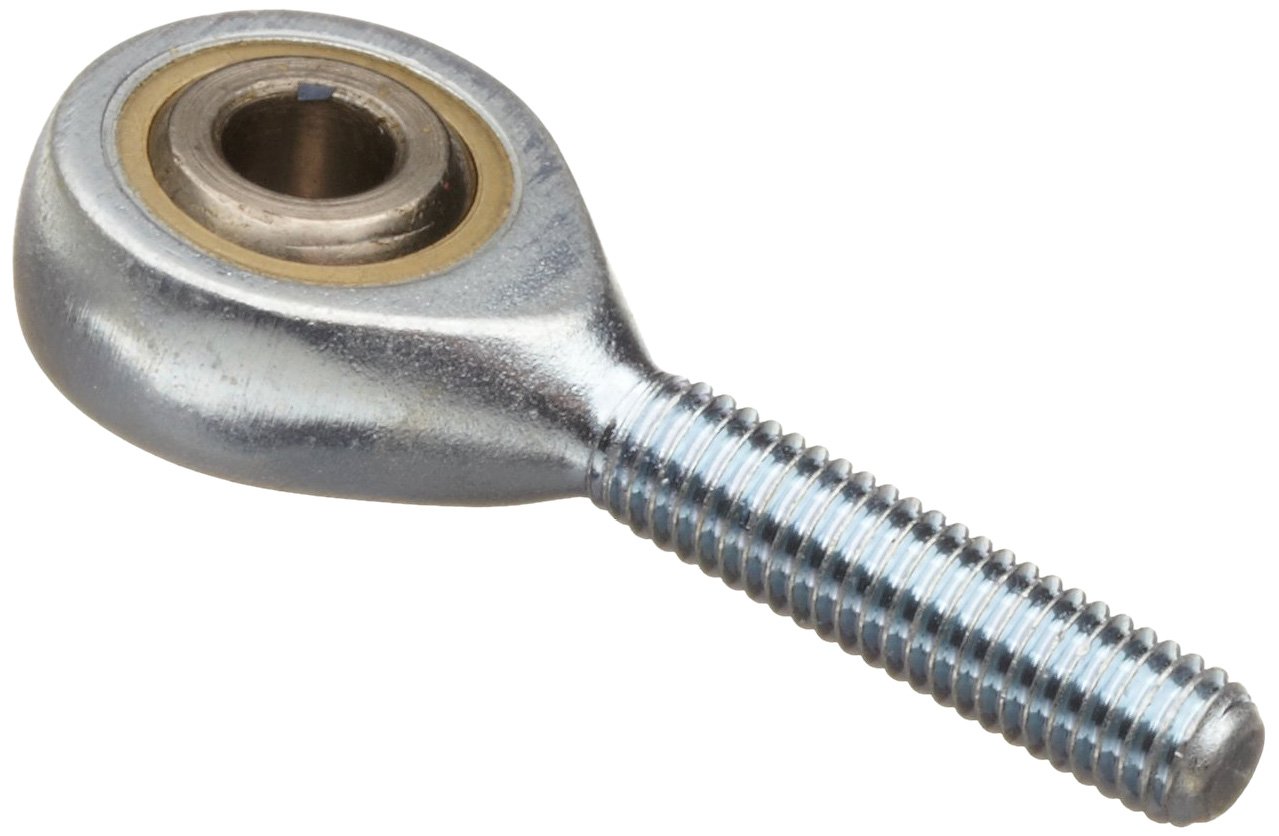

RBC Heim Bearings HM3C 0.1900" Bore, .1900-32 Threads Male Rod End Bearing, 4 Piece Metal-To-Metal

Be the first to review this item


Specifications for this item
Overall Width
0.312  inches
Width Tolerance
+0.005 / -0.005  inches
Bore Diameter
0.1900  inches
Bearing Number
Part Number
Item Weight
0.03 pounds
Brand Name
RBC Heim Bearings
Number of Items
Bore Diameter Tolerance
+0.0025 / -0.0005  inches
Material Type
Outer - Carbon Steel, Ball - 52100 Alloy Steel
Outside Diameter
0.625  inches
Static Load Capacity
900  pounds
Outside Diameter Tolerance
+0.031 / -0.031  inches
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 13 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Utilizes brass inserts to provide lubricity in the bearing area
  • Zinc plated bodies and nickel plated balls for corrosion resistance
  • Designed to provide low friction, long dynamic life, smooth feel, and good conformity

Package Details

Shipping Weight: 0.08 pounds
Package Size: 1.8 x 1.8 x 0.2 inches

Product Description

RBC Bearings has been providing bearing solutions to our customers since 1919. A publicly-traded company (NASDAQ: ROLL), RBC currently has 23 manufacturing facilities worldwide, with 18 located in the USA.
