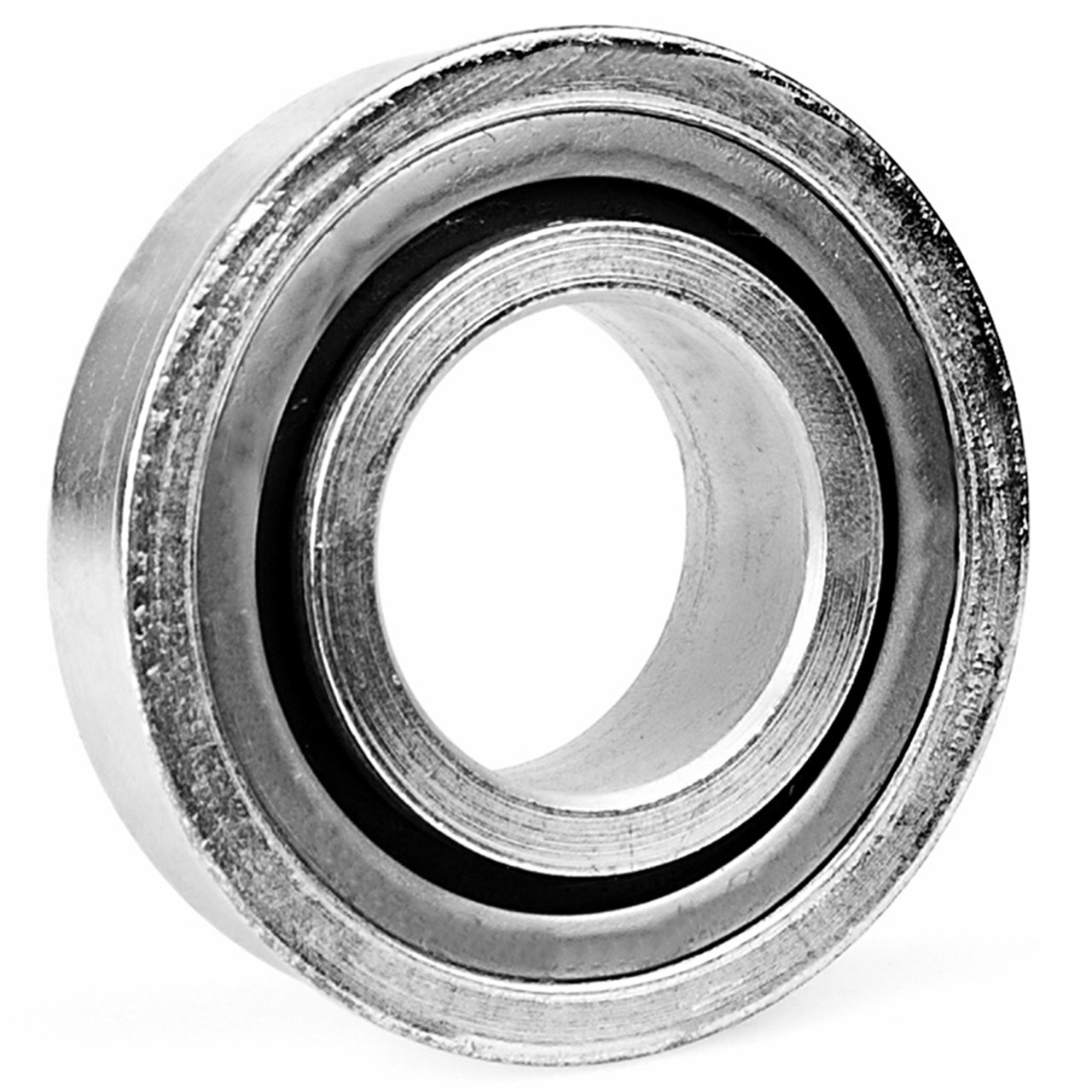

RBC Heim Ball Bearing RF122214P Flanged, Single Sealed, 0.750" Bore, 1.375" OD, 0.438" Width

Be the first to review this item

ASIN B0041242Z2

Specifications for this item
Overall Width
0.438  inches
Width Tolerance
+0.010 / -0.010  inches
Bore Diameter
0.7500  inches
Bearing Number
RF122214P
Part Number
RF122214P
Shield Type
Synthetic Rubber
Brand Name
RBC Heim Bearings
Number of Items
1
Bore Diameter Tolerance
+0.0040 / +0.0010  inches
Material Type
Carbon Steel
UPC
637400158910
Outside Diameter
1.375  inches
EAN
0637400158910
Static Load Capacity
110  pounds
Outside Diameter Tolerance
+0.002 / -0.002  inches
System of Measurement
Inch
Price:
$8.77
Quantity:

Currently Unavailable We don't know when or if this item will be back in stock.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-row flanged radial ball bearing for applications that support high radial loads
  • 0.750" straight bore for fitting to conventional cylindrical shafts
  • Flanged outer ring for mounting and positioning straight bearings
  • Heat treated to increase hardness for optimum wear resistance
  • Synthetic rubber seal on one side of the bearing keeps the lubricant in and contaminants out

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2.8 x 2.5 x 0.9 inches

Product Description

This RBC Heim RF122214P single-row radial ball bearing has a flanged housing and a single seal, and is suitable for applications that support high radial loads at speeds up to 1000 rpm. Its deep ball grooves in both races support high radial and axial loads and its straight bore fits conventional cylindrical shafts. This case-hardened steel bearing has a 0.750" bore diameter, a 1.375" outside diameter, and a 0.438" width. Its raceways are precision ground, allowing higher speeds and creating lower friction than comparable-sized roller bearings. A synthetic rubber seal on one side of the bearing keeps out contaminants such as dirt and grime and holds in the lubricant applied at manufacture. This radial ball bearing is suitable for use in commercial and industrial applications including household appliances, power tools, wheels, and lift mechanisms.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
