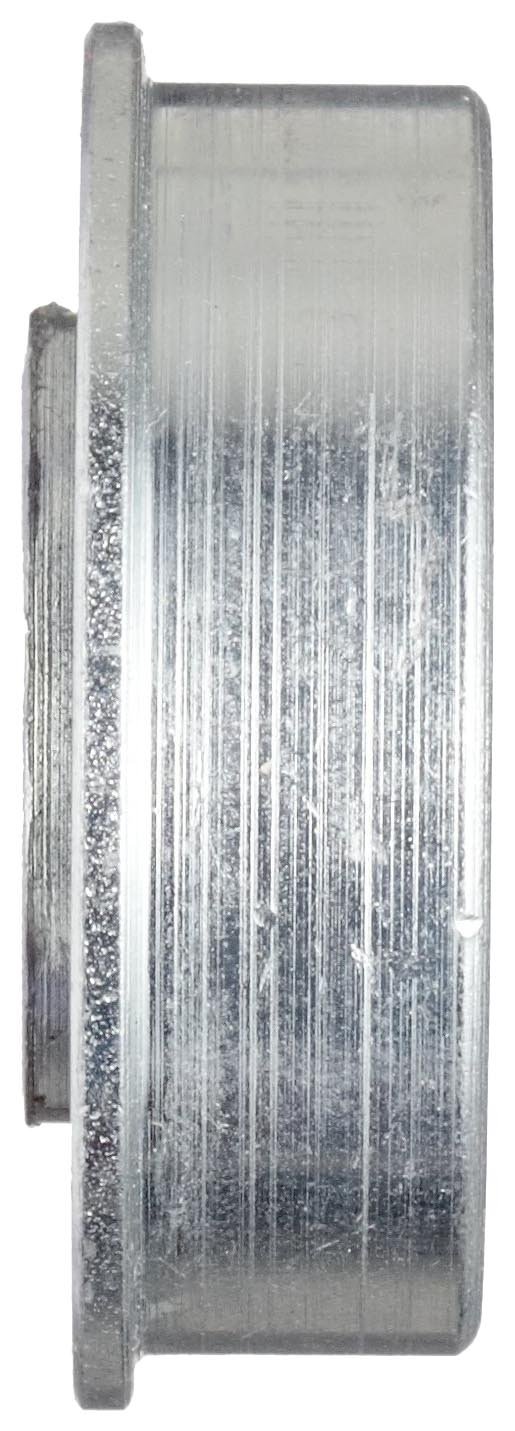

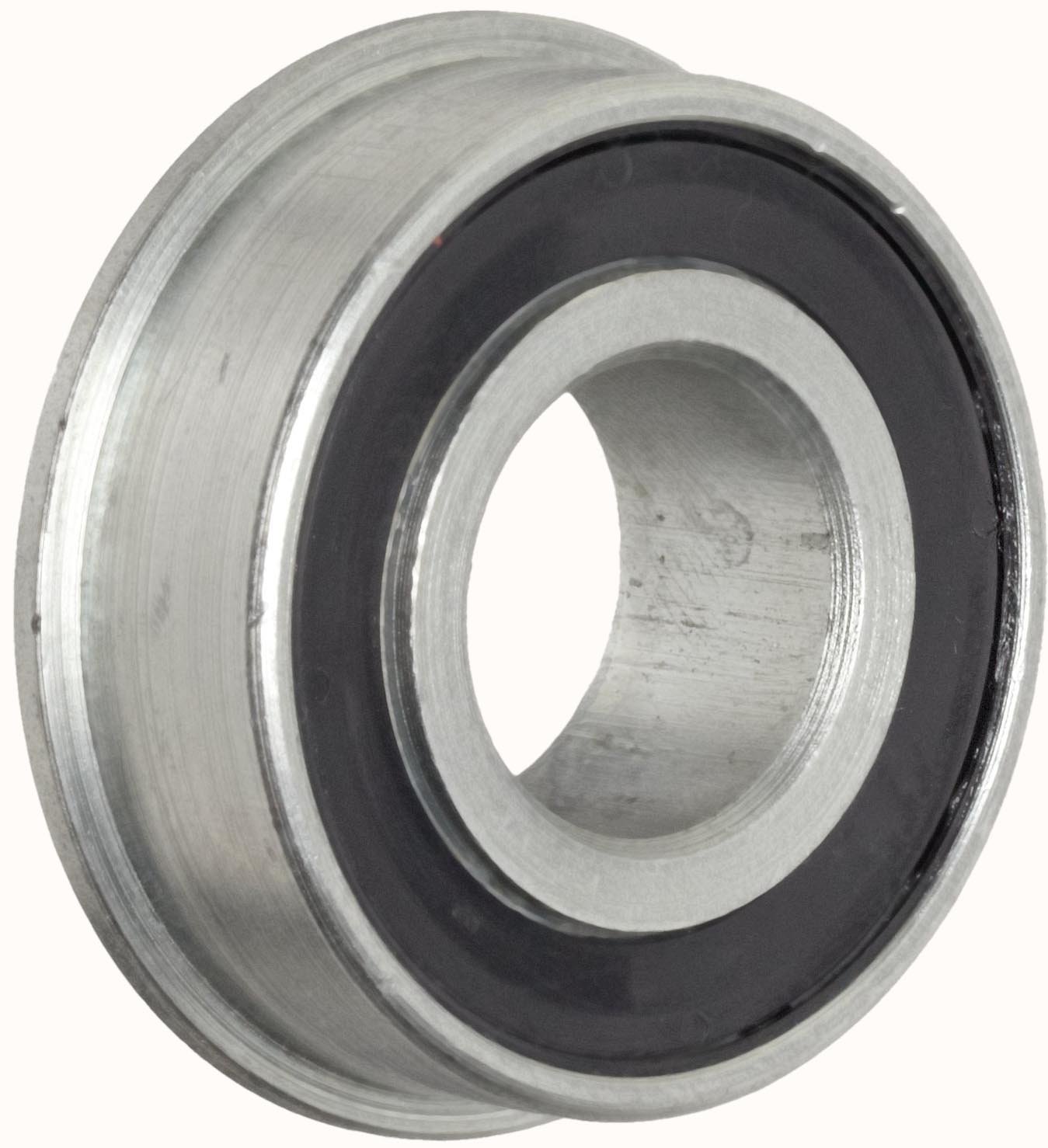

RBC Heim Ball Bearing RF102214PP Flanged, Double Sealed, 0.625" Bore, 1.375" OD, 0.438" Width

Be the first to review this item

ASIN B0041242XE

Specifications for this item
Overall Width
0.438  inches
Width Tolerance
+0.010 / -0.010  inches
Bore Diameter
0.6250  inches
Bearing Number
Part Number
Shield Type
Synthetic Rubber
Brand Name
RBC Heim Bearings
Number of Items
Bore Diameter Tolerance
+0.0040 / +0.0010  inches
Material Type
Carbon Steel
Outside Diameter
1.375  inches
Static Load Capacity
100  pounds
Outside Diameter Tolerance
+0.002 / -0.002  inches
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 12 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Single-row flanged radial ball bearing for applications that support high radial loads
  • 0.625" straight bore for fitting to conventional cylindrical shafts
  • Flanged outer ring for mounting and positioning straight bearings
  • Heat treated to increase hardness for optimum wear resistance
  • Synthetic rubber seals on both sides of the bearing keep the lubricant in and contaminants out

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2.1 x 1.9 x 0.9 inches

Product Description

This RBC Heim RF102214PP single-row radial ball bearing has a flanged housing and double seals, and is suitable for applications that support high radial loads at speeds up to 1000 rpm. Its deep ball grooves in both races support high radial and axial loads and its straight bore fits conventional cylindrical shafts. This case-hardened steel bearing has a 0.625" bore diameter, a 1.375" outside diameter, and a 0.438" width. Its raceways are precision ground, allowing higher speeds and creating lower friction than comparable-sized roller bearings. Synthetic rubber seals on both sides of the bearing keep out contaminants such as dirt and grime and hold in the lubricant applied at manufacture. This radial ball bearing is suitable for use in commercial and industrial applications including household appliances, power tools, wheels, and lift mechanisms.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

RBC Bearings manufactures bearings, pins, rollers, and shafts, and other products for industrial and aerospace applications under the RBC, Nice, Heim, Unibal, and Spherco brands. The company, founded in 1919 and headquartered in Oxford, CT, meets International Organization for Standardization (ISO) standards 9001:2008 and ISO/TS 16949:2009.
